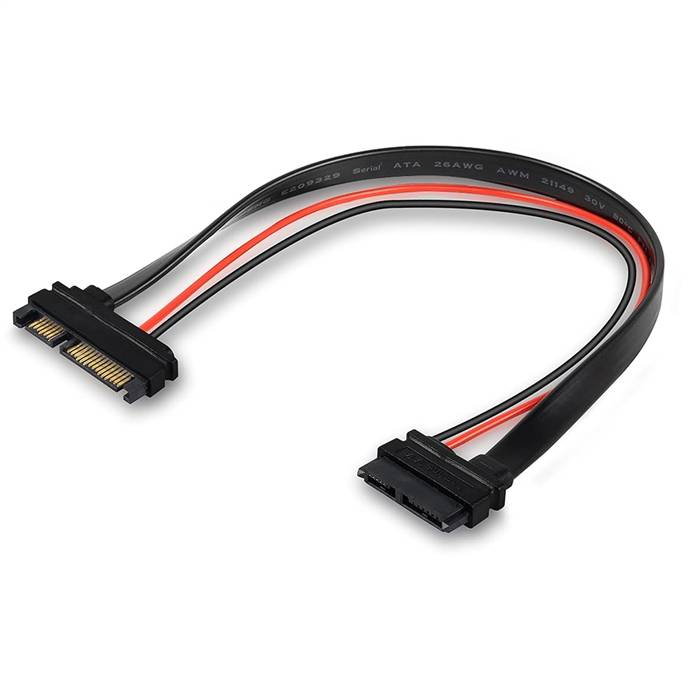

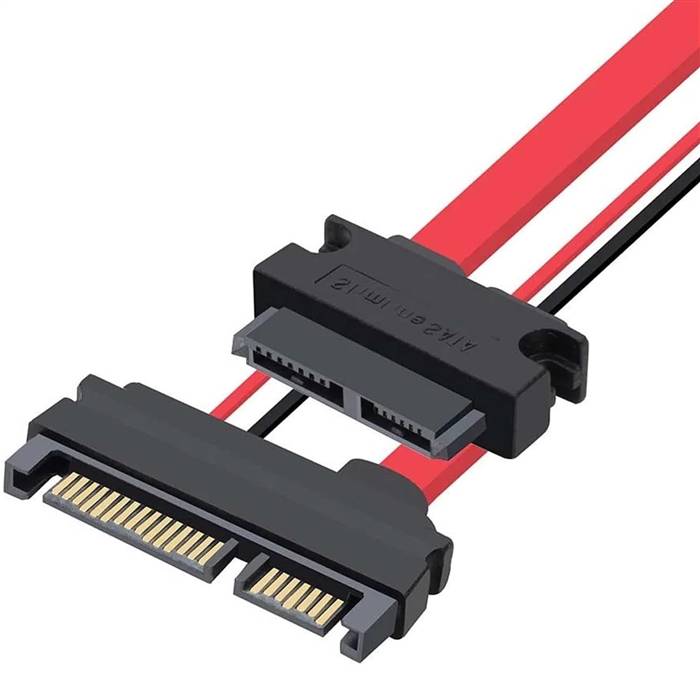

Slimline SATA 13P Female to SATA 22P (7+15) Male Cable

The Slimline SATA 13P Female to SATA 22P (7+15) Male Cable is a specialized interface conversion solution designed to connect slimline SATA devices to standard SATA host controllers. This integrated cable converts a 13-pin slimline SATA female interface into a standard 22-pin SATA male interface, providing both data transfer and power delivery capabilities. Engineered for reliability and performance, this cable enables seamless compatibility between slim optical drives, slim storage devices, and conventional SATA motherboards or controllers. The precision-engineered connectors ensure optimal signal integrity while maintaining the form factor advantages of slimline connections, making it ideal for space-constrained computing environments and upgrade projects.

Features

• Interface Conversion: Converts slimline SATA 13-pin female to standard SATA 22-pin (7+15) male interface
• Complete Signal Support: Maintains both data and power transmission capabilities in a single cable solution
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Space-Optimized Design: Enables use of slimline devices in standard SATA environments
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Enhanced Compatibility: Bridges connectivity between slim form factor devices and standard SATA interfaces
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

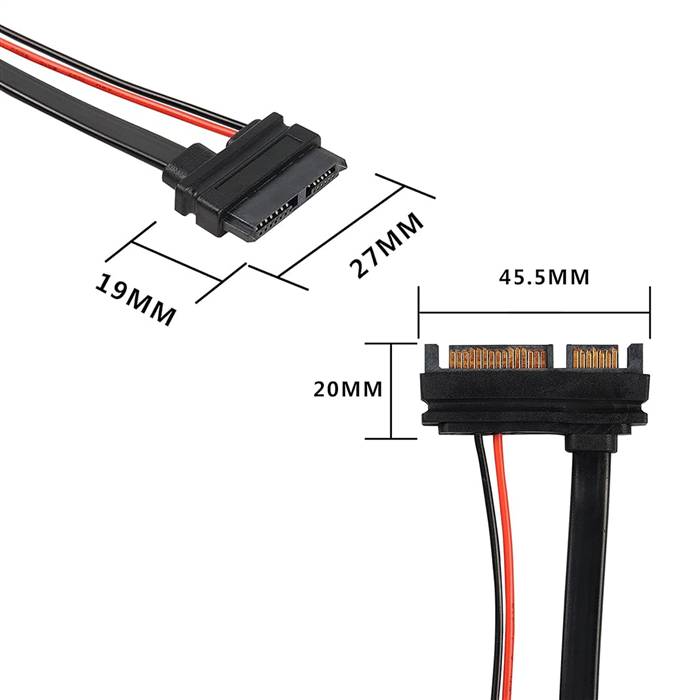

• Host Connector: Slimline SATA 13-pin Female (7+6 configuration)
• Device Connector: Standard SATA 22-pin (7+15) Male
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0, SATA 2.0
• Power Delivery: Supports power requirements for connected slimline devices

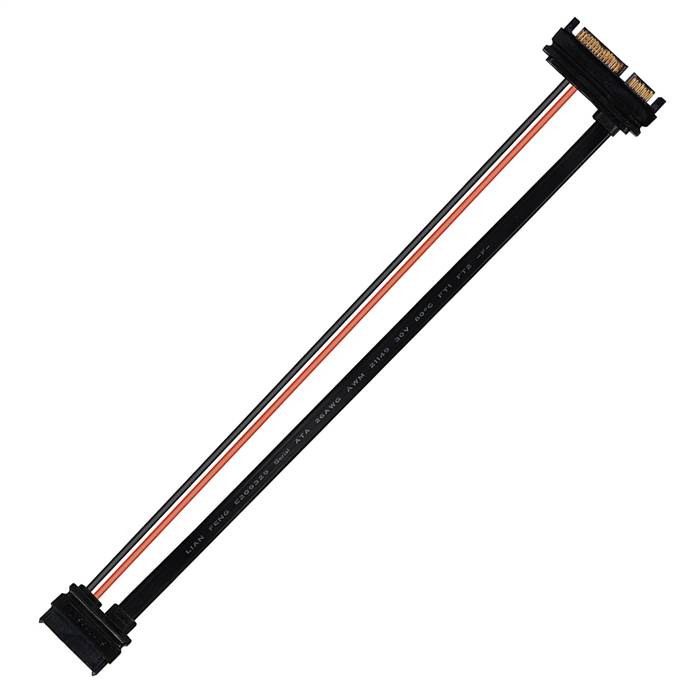

• Cable Length: 0.15m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 2,500+ mating cycles
• Construction: High-quality materials with protective shielding
• Contact Plating: Gold-plated contacts for enhanced conductivity and corrosion resistance

Applications

• Optical Drive Integration: Connecting slim optical drives to standard SATA motherboards
• Slim System Upgrades: Adding storage options to slim form factor PCs and all-in-one systems
• Laptop Modification: Enabling use of standard SATA controllers with slimline devices
• Test Benches: Temporary connectivity for testing and diagnostics of slimline devices
• Space-Constrained Installations: Ideal for compact server racks and HTPC configurations
• Repair and Maintenance: Facilitating drive replacements and compatibility solutions
• Field Service: Technical support applications requiring interface adaptation
• Educational Environments: Teaching storage technology and interface compatibility concepts
