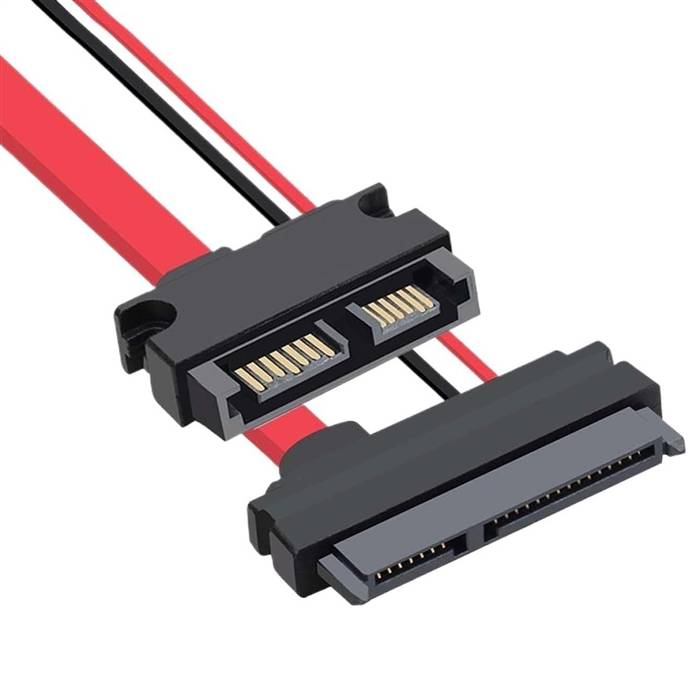

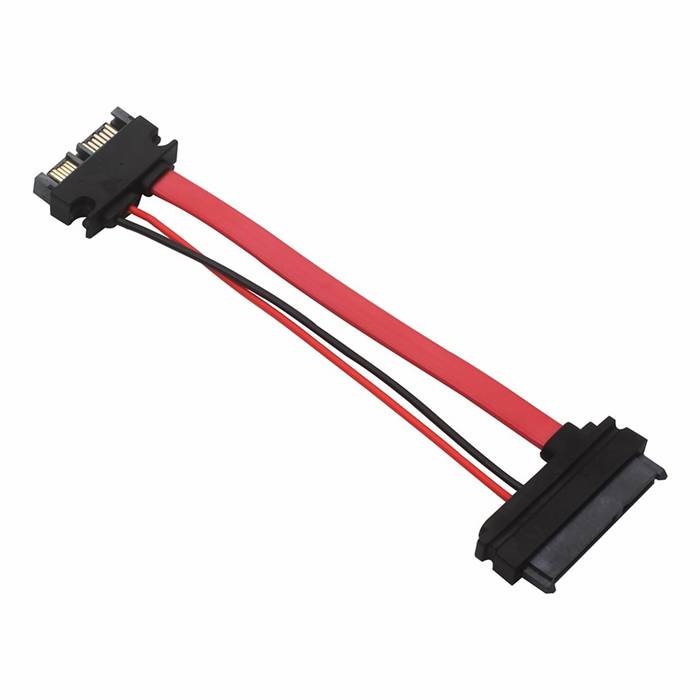

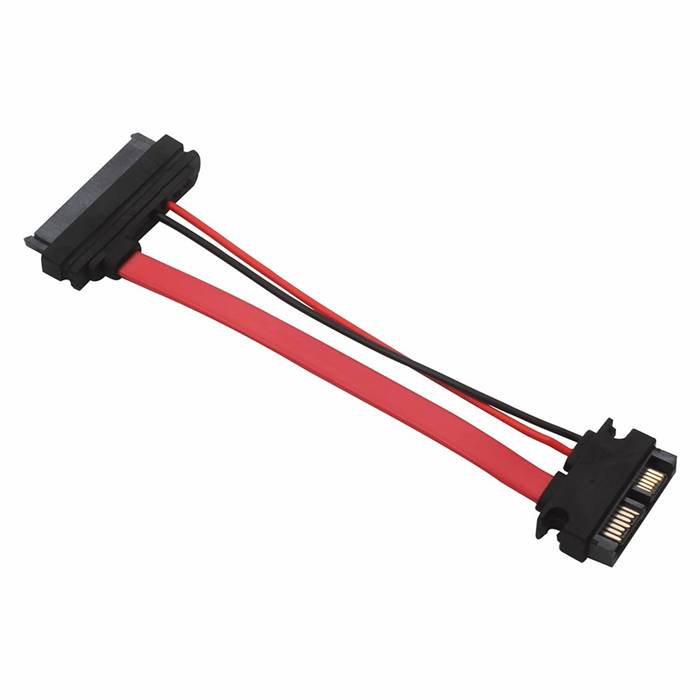

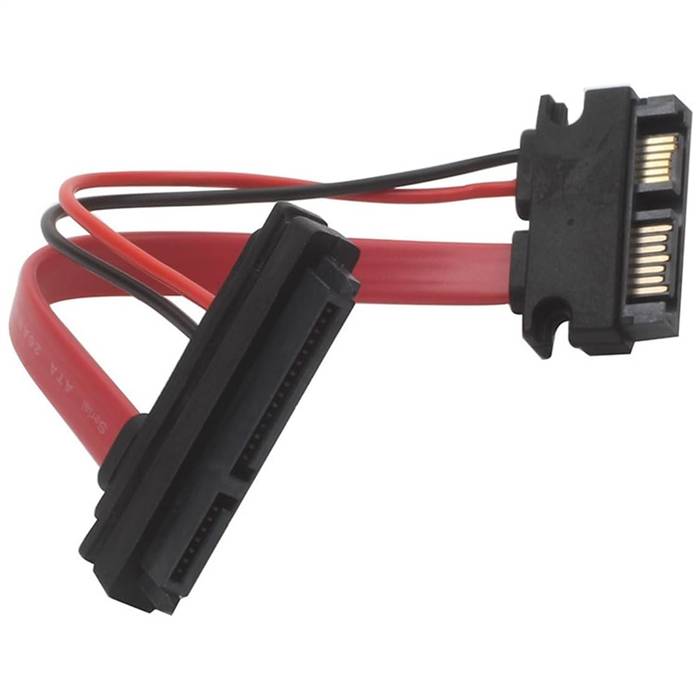

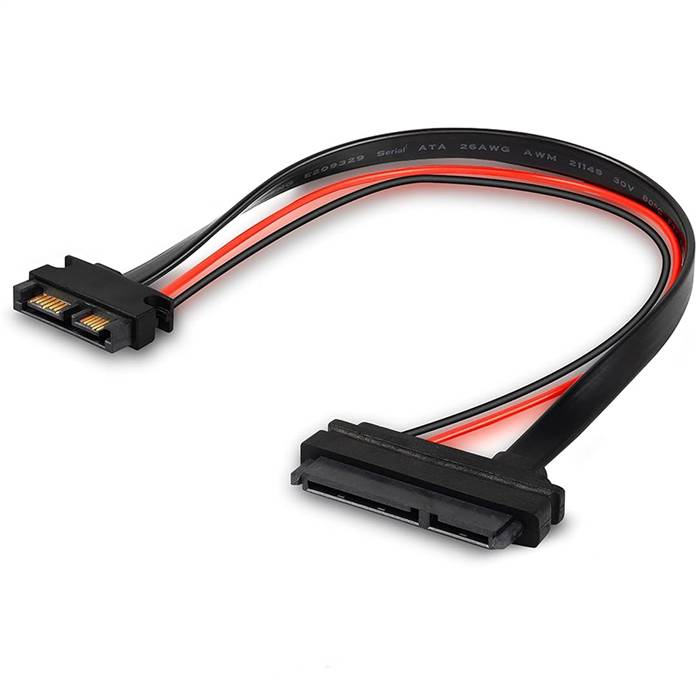

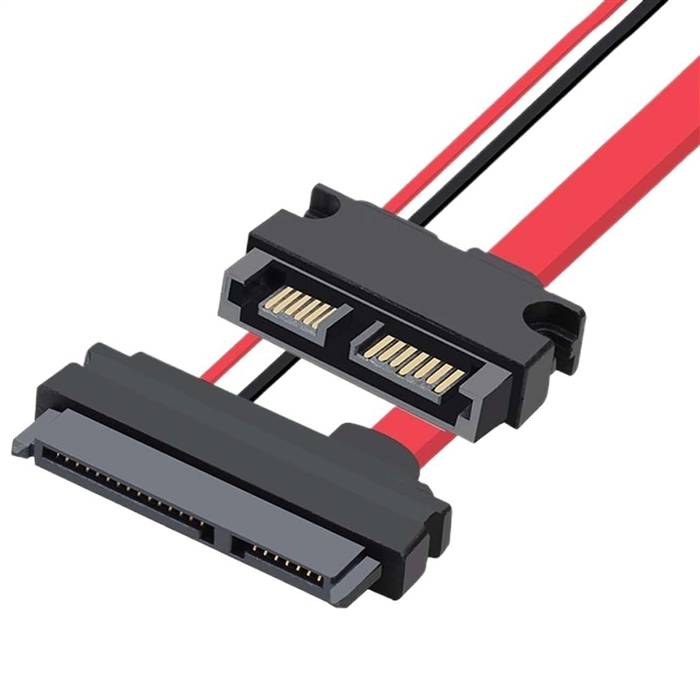

Slimline SATA 13P Male to SATA 22P (7+15) Female Cable

The Slimline SATA 13P Male to SATA 22P (7+15) Female Cable is a specialized interface conversion cable designed to connect slimline SATA devices to standard SATA host controllers. This cable features a slimline SATA 13-pin male connector on one end and a standard SATA 22-pin (7+15) female connector on the other end, providing both data transfer and power delivery capabilities. Engineered for reliability and performance, it enables seamless compatibility between slim optical drives, slim storage devices, and conventional SATA motherboards or controllers. The precision-engineered connectors ensure optimal signal integrity while maintaining the form factor advantages of slimline connections, making it ideal for space-constrained computing environments and upgrade projects.

Features

• Interface Conversion: Converts slimline SATA 13-pin male to standard SATA 22-pin (7+15) female interface
• Complete Signal Support: Maintains both data and power transmission capabilities in a single cable solution
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Space-Optimized Design: Enables use of standard SATA devices with slimline interfaces
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Enhanced Compatibility: Bridges connectivity between standard SATA devices and slimline interfaces
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

• Host Connector: Slimline SATA 13-pin Male (7+6 configuration)
• Device Connector: Standard SATA 22-pin (7+15) Female
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0, SATA 2.0
• Power Delivery: Supports power requirements for connected devices
• Cable Length: 0.15m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 2,500+ mating cycles
• Construction: High-quality materials with protective shielding
• Contact Plating: Gold-plated contacts for enhanced conductivity and corrosion resistance

Applications

• Optical Drive Integration: Connecting standard SATA optical drives to slimline interfaces
• Slim System Upgrades: Adding storage options to slim form factor PCs and all-in-one systems
• Laptop Modification: Enabling use of standard SATA devices in slimline environments
• Test Benches: Temporary connectivity for testing and diagnostics
• Space-Constrained Installations: Ideal for compact server racks and HTPC configurations
• Repair and Maintenance: Facilitating drive replacements and compatibility solutions
• Field Service: Technical support applications requiring interface adaptation
• Educational Environments: Teaching storage technology and interface compatibility concepts
