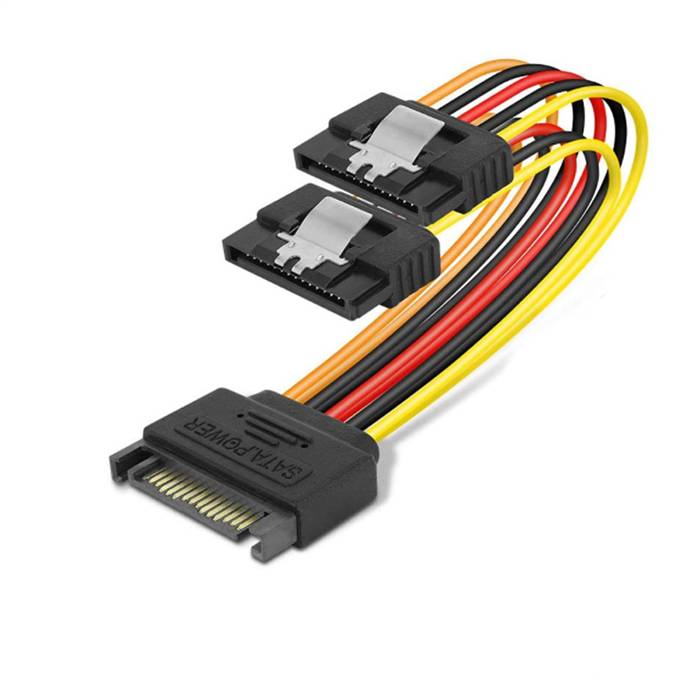

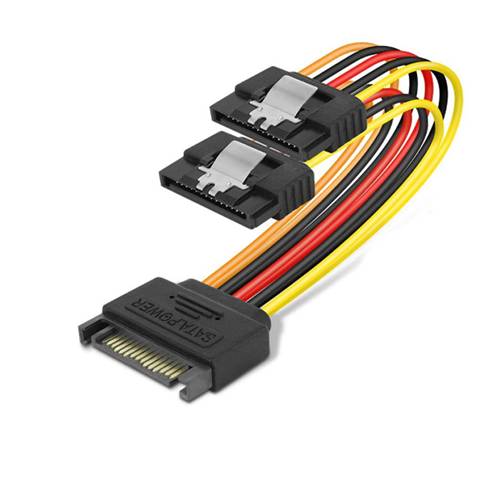

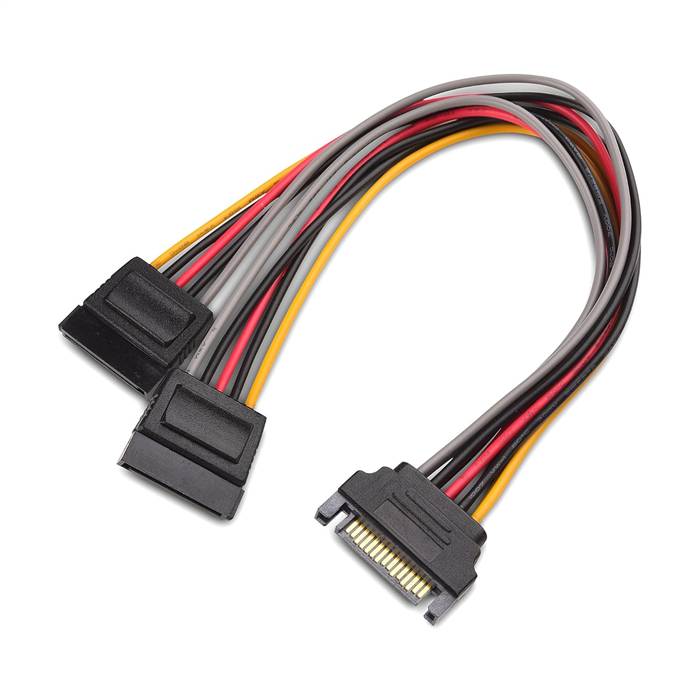

SATA 15Pin Male to 2 Straight SATA 15Pin Female Power Splitter Cable

The SATA 15Pin Male to 2 Straight SATA 15Pin Female Power Splitter Cable is a practical internal power distribution cable designed for computer and storage systems. This cable enables a single SATA power connector from a power supply unit (PSU) to power two SATA devices simultaneously, such as HDDs, SSDs, or optical drives. It is engineered to provide a simple and efficient solution for expanding power connectivity within systems where available PSU SATA power ports are limited. By distributing power to two devices, this splitter cable helps users maximize their storage configurations without requiring additional PSU connections, making it ideal for custom PC builds, storage enclosures, and systems with multiple drives.

Features

• Dual Power Distribution: Allows a single SATA 15-pin male connector from the PSU to power two SATA devices concurrently through two straight SATA 15-pin female connectors, effectively expanding power availability in systems with limited PSU ports.
• Adequate Current Handling: Designed to meet standard SATA power specifications, typically supporting the common voltage rails (+3.3V, +5V, +12V) and capable of handling currents sufficient for multiple drives, though total load should be within PSU capabilities.
• Secure and Stable Connection: Features connectors with materials like phosphor bronze contacts (often gold-plated for better conductivity and corrosion resistance) and a snug fit to reduce the risk of accidental disconnection, ensuring reliable power delivery.
• Durable Construction: Utilizes PVC insulation for the cable jacket, which offers good insulation and flame-retardant properties, enhancing safety and longevity. The internal wiring often employs copper conductors for efficient power transmission.
• Space-Saving and Organized: Helps in reducing cable clutter within computer cases or storage enclosures by minimizing the number of cables connected directly to the PSU, contributing to improved airflow and easier cable management.
• Plug-and-Play: Requires no additional software or drivers for operation, making it easy to install and use immediately in various computing environments.

Specifications

• Product Model: SATA 15Pin Male to 2 Straight SATA 15Pin Female Power Splitter Cable

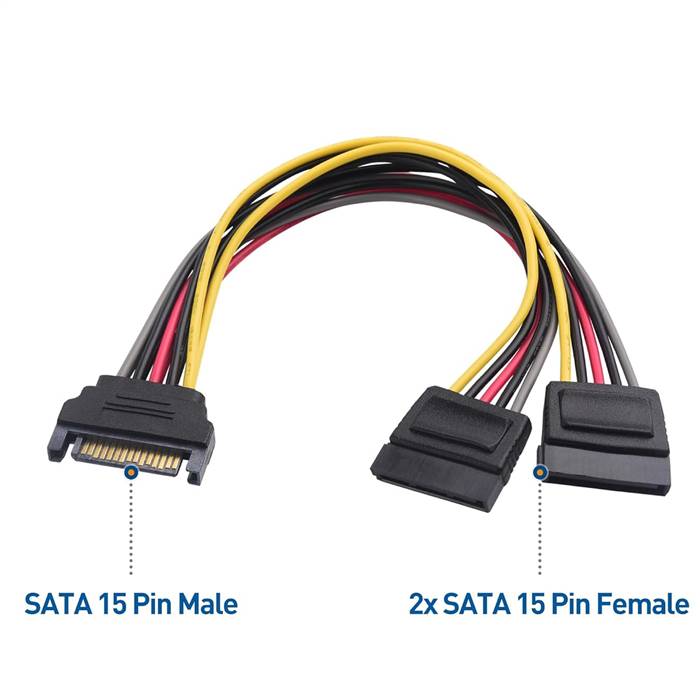

• Connector A: SATA 15-Pin Male Power Connector
• Connector B: 2x SATA 15-Pin Female Power Connectors (Straight)
• Connector Gender: Male to Female (x2)
• Cable Type: Passive Power Splitter Cable
• Cable Length: Common lengths include 15 cm, 20 cm, (Custom lengths may be available)
• Wire Gauge: Typically 18 AWG or similar for power conductors (e.g., UL1007 18# wire is common)
• Rated Voltage: 40V (DC)
• Rated Current: 1.5A per pin (Contact current rating is a common specification)
• Contact Material: Phosphor Bronze (often with gold plating in contact areas for better performance)
• Insulation Material: PVC (Polyvinyl Chloride) for the cable jacket
• Operating Temperature: Standard commercial range (e.g., 0°C to +70°C)
• Safety Standards: RoHS compliant (may vary by manufacturer)

Applications

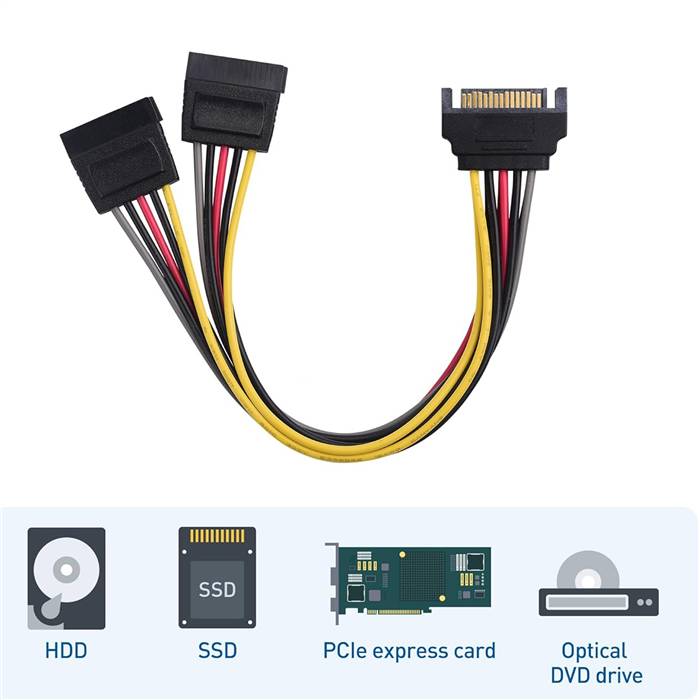

• Desktop Computer Assembly: Expanding power connectivity in desktop towers to run multiple SATA drives (HDDs, SSDs, optical drives) from a single PSU port, especially useful in systems with limited PSU connectors or for adding extra drives without upgrading the PSU.
• Storage Enclosures and JBODs: Powering multiple drives within external storage enclosures, JBOD (Just a Bunch of Disks) systems, or DIY storage solutions where internal space and available power ports are constrained.
• System Upgrades and Expansions: Facilitating the addition of new storage drives during computer upgrades or builds, allowing users to leverage existing PSU capabilities without immediate hardware changes.
• Home Servers and NAS Systems: Used in custom-built Network-Attached Storage (NAS) or home servers to efficiently power several drives, supporting data storage, backup, and media server applications.
• Test Benches and Development Setups: Providing flexible power distribution in hardware testing, prototyping environments, and workbenches where multiple drives need to be connected and disconnected frequently for evaluation.
• Gaming PCs and Workstations: Supporting high-performance gaming rigs or workstations that require multiple storage devices for games, applications, and large files, aiding in clean cable management for improved aesthetics and airflow.
