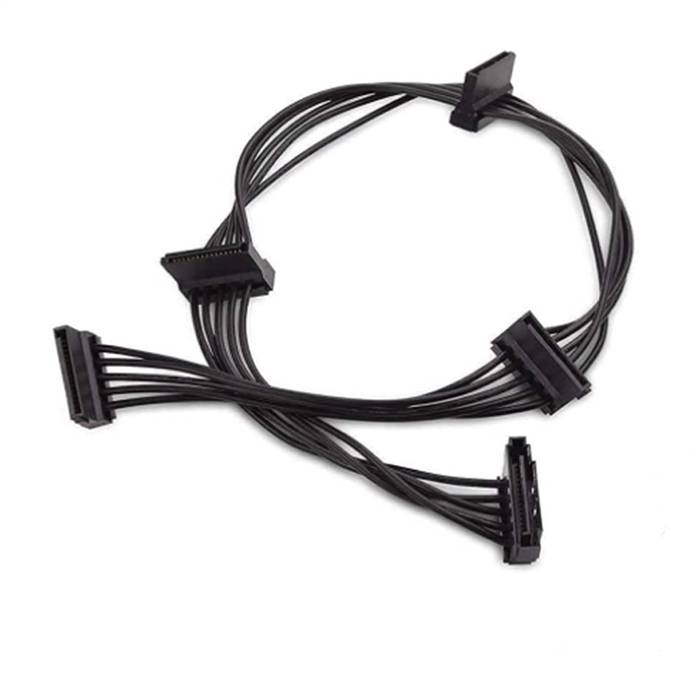

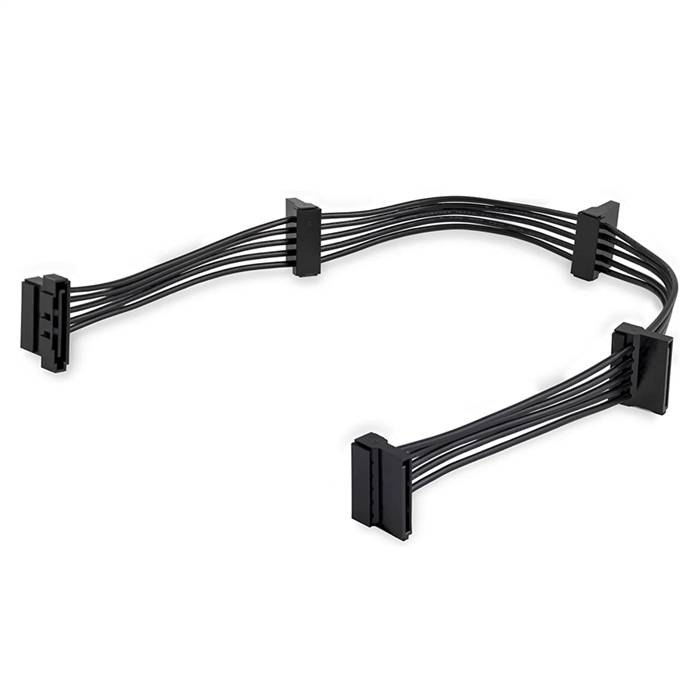

SATA 15Pin Male to 4 SATA 15Pin Female Power Splitter Cable

The SATA 15Pin Male to 4 SATA 15Pin Female Power Splitter Cable is a high-capacity power distribution solution designed for computing and storage systems requiring efficient power delivery to multiple drives from a single power source. This cable features a single male SATA 15-pin power connector on one end that splits into four standard female SATA 15-pin power connectors, enabling simultaneous power delivery to four SATA devices. Engineered with high-quality conductors and robust construction, this power splitter cable provides reliable power distribution while maintaining compliance with SATA power specifications. The solution is ideal for multi-drive systems, storage arrays, server racks, and other environments where centralized power management and expansion capabilities are required, eliminating the need for multiple individual power cables and reducing clutter in the system.

Features

• High-Capacity Power Splitter: Single male connector splits into four female connectors for multi-device power delivery
• Simultaneous Power Delivery: Supports up to four SATA devices from a single power source
• High-Current Support: Designed to handle power requirements for multiple SATA devices (up to 4.5A per connector)
• Secure Connection: Gold-plated contacts and secure latching mechanisms ensure reliable power delivery
• Backward Compatibility: Fully compatible with SATA 3.0, 2.0, and 1.0 power specifications
• Durable Construction: High-quality wires and molded connectors ensure long-term reliability
• Efficient Cable Management: Reduces cable clutter by consolidating multiple power connections
• Wide Application: Suitable for various SATA devices including HDDs, SSDs, and optical drives

Specifications

• Product Model: SATA 15Pin Male to 4 SATA 15Pin Female Power Splitter Cable
• Input Connector: SATA 15-pin, Male, Straight
• Output Connectors: 4x SATA 15-pin, Female, Straight
• Voltage Support: +3.3V, +5V, +12V
• Current Rating: Up to 4.5A per pin (compliant with SATA power specifications)
• Wire Gauge: 18 AWG (primary power lines), 22 AWG (distribution lines)
• Cable Type: Internal Grade, Round Cable
• Shielding: Not applicable (power-only cable)
• Cable Length: 0.3m, 0.5m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 35mm

Applications

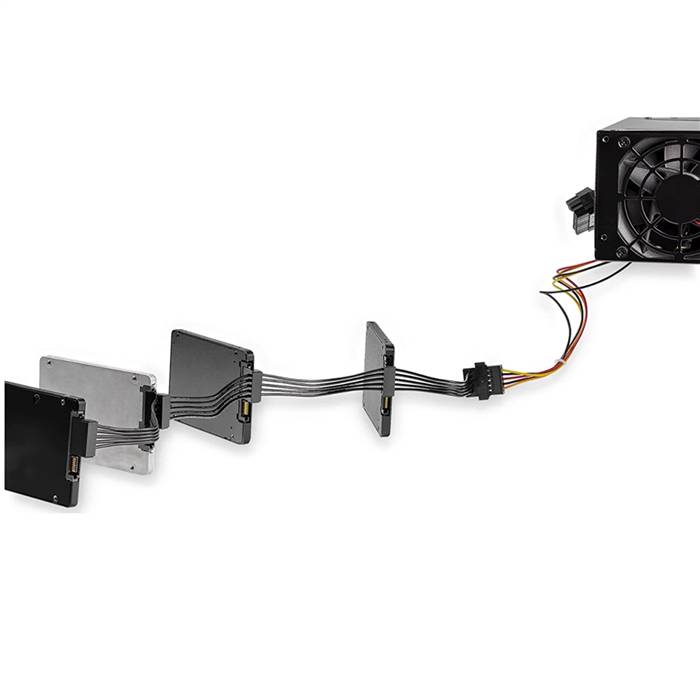

• Multi-Drive Storage Systems: Ideal for connecting multiple SATA drives in RAID arrays and storage servers
• Server Racks: Perfect for data center environments requiring efficient power distribution to multiple drives
• Gaming PCs: High-performance systems with multiple storage devices requiring consolidated power management
• Workstations: Professional workstations with several SATA drives needing organized power delivery
• NAS Devices: Network-attached storage systems with multiple drive bays
• Home Theater PCs: Compact systems requiring efficient power distribution to multiple storage devices
• Test and Development: Laboratory environments needing flexible power distribution for multiple drives
• System Integration: OEM applications requiring customized power splitter solutions for multi-drive configurations
