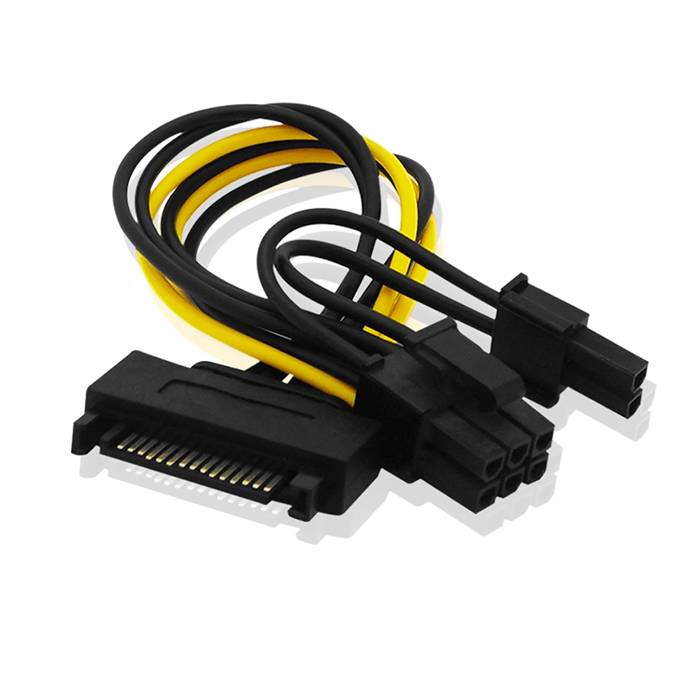

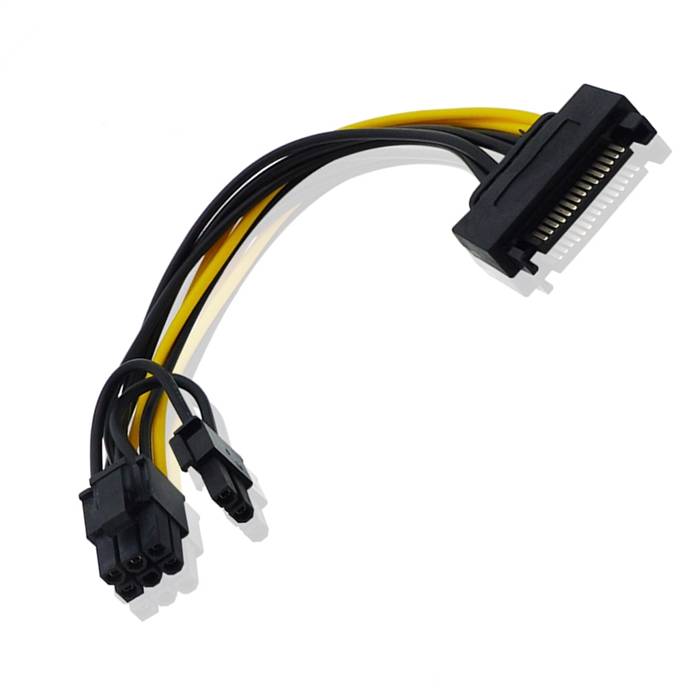

SATA 15Pin Male to 6Pin PCIe Female Graphics Video Card Power Adapter Cable

The SATA 15Pin Male to 6Pin PCIe Female Graphics Video Card Power Adapter Cable is a specialized power interface conversion cable designed to connect power supply units (PSUs) with SATA power connectors to graphics cards requiring 6-pin PCIe power. This cable enables users to leverage existing SATA power outputs from their PSU to provide auxiliary power to PCIe devices, such as graphics cards (GPUs), when dedicated PCIe power connectors are unavailable or limited. It is engineered for low to moderate-power graphics cards and other PCIe devices, offering a practical solution for system upgrades, testing environments, and custom builds where standard PCIe power ports are insufficient.

Features

• Interface Conversion: Adapts a SATA 15-pin male power connector (from the PSU) to a 6-pin PCIe female power connector, allowing compatibility between SATA power sources and PCIe devices like graphics cards.
• Power Delivery for GPUs: Designed to supply auxiliary power to graphics cards with 6-pin PCIe power requirements, enabling basic functionality for low to mid-range GPUs where dedicated PCIe ports are lacking on the PSU.
• Compact and Lightweight: Features a short cable length (e.g., 15–20 cm) and lightweight design, minimizing clutter in computer cases and simplifying installation in space-constrained environments.
• Copper Wiring: Utilizes 18 AWG copper wires (as seen in similar products) for efficient power transmission, reducing resistance and minimizing voltage drops over short distances.
• Plug-and-Play: Requires no additional software or drivers, making it easy to install and use immediately in various computing setups.
• Cost-Effective Solution: Provides an affordable alternative for users needing to power PCIe devices without upgrading their PSU, particularly in older systems or budget builds.

Specifications

• Product Model: SATA 15Pin Male to 6Pin PCIe Female Power Adapter Cable
• Connector A: SATA 15-Pin Male Power Connector
• Connector B: 6-Pin PCIe Female Power Connector
• Connector Gender: Male to Female
• Cable Type: Passive Power Adapter Cable
• Cable Length: Common lengths: 20 cm
• Wire Gauge: 18 AWG copper (typical for power transmission)
• Rated Voltage: 12V (focus on PCIe power requirements)
• Current Handling: Designed for low to moderate power draw; check GPU requirements to avoid overloading
• Compatibility: Supports PCIe devices like graphics cards with 6-pin power inputs
• Safety Standards: RoHS compliant (may vary by manufacturer)
• Operating Temperature: Standard commercial range (e.g., 0°C to +70°C)

Applications

• Graphics Card Power Expansion: Connecting low to mid-range graphics cards (e.g., entry-level GPUs) to PSUs that lack dedicated 6-pin PCIe power connectors, enabling basic gaming, multimedia, or display output functionality.
• System Upgrades and Retrofit: Facilitating GPU upgrades in older computers or pre-built systems where the PSU does not have native PCIe power ports, avoiding the need for a full PSU replacement.
• Testing and Development Benches: Providing temporary power solutions for testing graphics cards or other PCIe devices in lab environments, prototyping, or hardware debugging setups.
• Budget Gaming Rigs: Supporting cost-effective custom PC builds where users repurpose existing PSUs with SATA power outputs to power entry-level gaming GPUs.
• External GPU Setups: Enabling experimental or low-power external GPU configurations for laptops or small form-factor systems that rely on SATA-based power sources.
• Mining and Computational Tasks: Powering low-power GPUs used in cryptocurrency mining or parallel computing applications where multiple adapters might be deployed (with caution to avoid overloading SATA ports).
