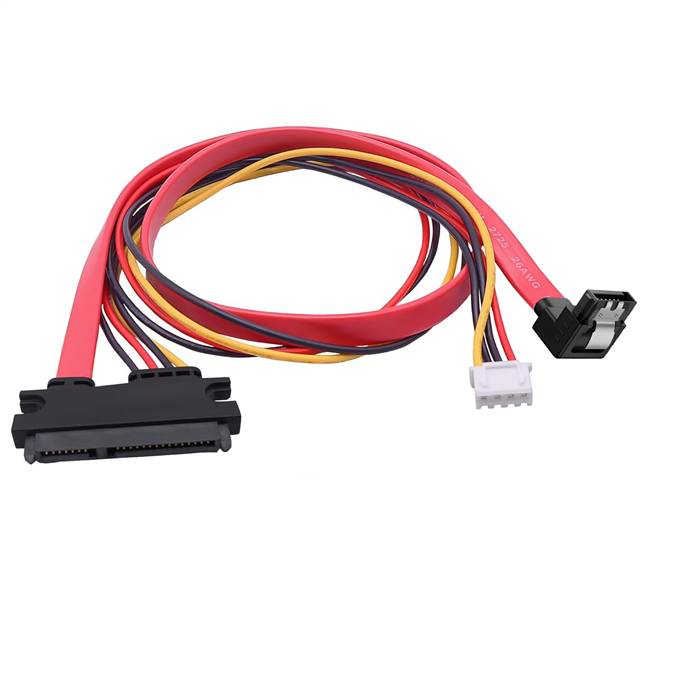

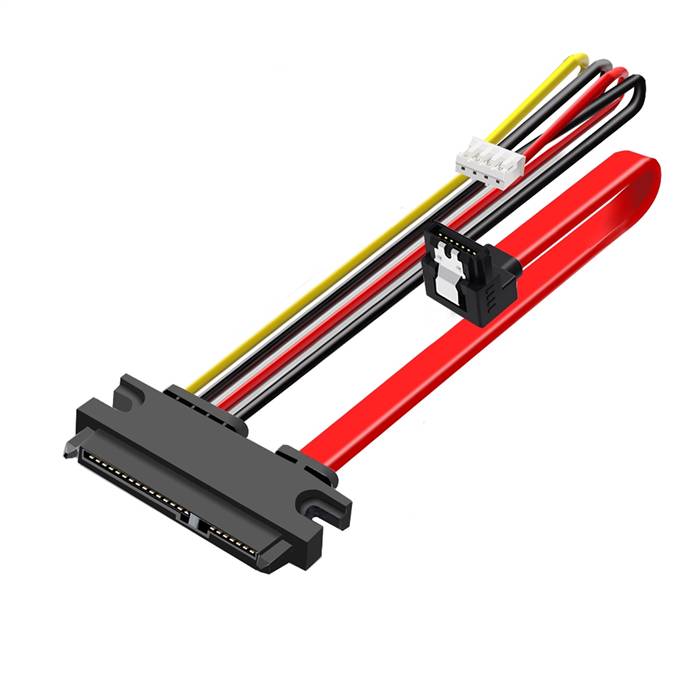

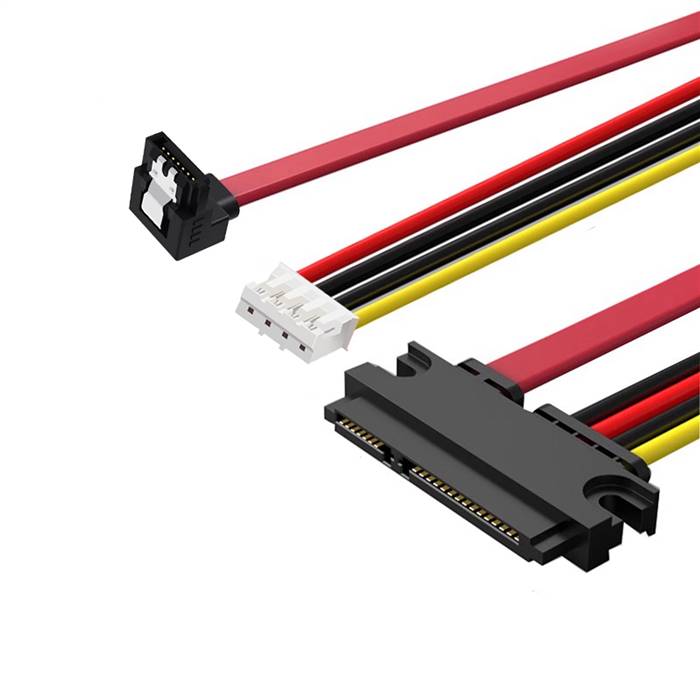

SATA 22P (7+15) Female to Right Angle 7Pin SATA Data & PH2.0 Small 4Pin Power Cable

The SATA 22P (7+15) Female to Right Angle 7Pin SATA Data & PH2.0 Small 4Pin Power Cable is a specialized interface conversion and power delivery solution designed for compact and space-constrained environments. This cable features a standard SATA 22-pin (7+15) female connector on one end, a right-angle SATA 7-pin data connector, and an integrated PH2.0 small 4-pin power connector. Engineered for reliability and performance in miniaturized applications, this cable enables seamless connectivity between SATA storage devices and compatible host interfaces while providing stable power delivery through the compact PH2.0 power connector, making it ideal for small form factor systems, embedded applications, and portable storage solutions where space optimization is critical.

Features

• Interface Conversion: Converts SATA 22-pin (7+15) female interface to right-angle SATA 7-pin data interface
• Compact Power Delivery: Integrated PH2.0 small 4-pin power connector provides stable power supply in minimal space
• Right-Angle Design: Space-saving right-angle SATA data connector enables efficient cable routing in tight spaces
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Enhanced Compatibility: Enables connection between SATA host systems and storage devices in compact environments
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Miniaturized Design: PH2.0 connector offers compact power solution for space-constrained applications
• Durable Construction: Quality materials ensure long-term reliability and repeated use

Specifications

• Host Connector: SATA 22-pin (7+15) Female
• Data Connector: Right-Angle SATA 7-pin Male
• Power Connector: PH2.0 Small 4-pin Female
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0/2.0/1.0
• Power Delivery: 5V DC (max 2A per pin)
• Cable Length: 0.1m, 0.3m, 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 1,500+ mating cycles (PH2.0), 2,500+ mating cycles (SATA connectors)
• Wire Gauge: 28-30 AWG (data), 22-24 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Contact Plating: Gold-plated contacts (data connectors)
• Impedance: 100? ±10% (characteristic impedance)

Applications

• Small Form Factor Systems: Connecting storage devices in compact PC builds and mini-ITX systems
• Embedded Applications: Industrial and commercial applications with severe space constraints
• Portable Storage Solutions: External storage setups requiring compact power connections
• Test Benches: Temporary connectivity for testing and diagnostics in space-limited setups
• Data Recovery: Facilitating drive connections for data retrieval operations in compact workstations
• Backup Solutions: Creating space-efficient backup systems utilizing SATA drives
• Technical Support: Field service applications requiring compact interface adaptation
• Educational Labs: Teaching storage technology and interface compatibility in limited-space environments
