SATA 22P (7+15) Female to SATA 22P (7+15) Female Cable

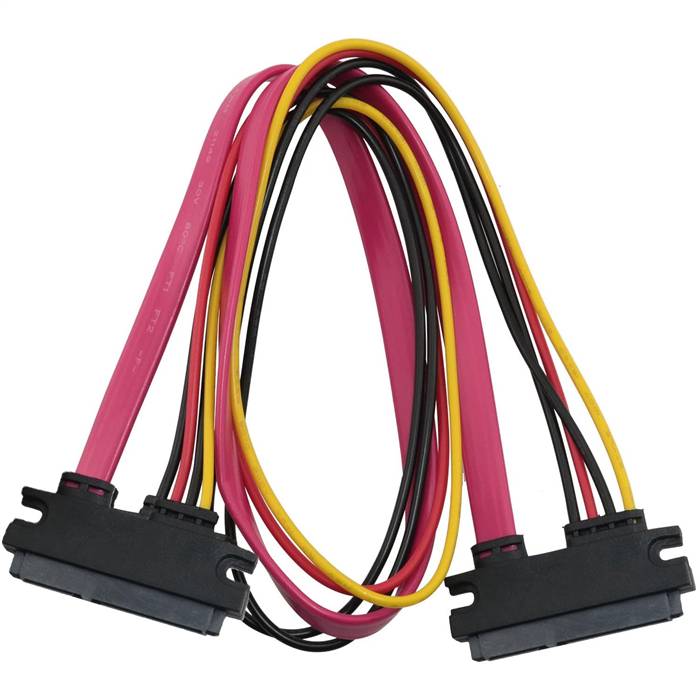

The SATA 22P (7+15) Female to SATA 22P (7+15) Female Cable is a specialized extension solution designed to provide seamless connectivity between SATA III storage devices and host systems. This cable features identical 22-pin (7+15) female connectors on both ends, maintaining both data and power transmission capabilities in a single integrated assembly. Engineered for reliability and superior signal integrity, this cable supports the full SATA III 3.0 specification while ensuring stable power delivery, making it ideal for storage expansion, system integration, and various applications where extended reach between SATA devices is required without gender conversion.

Features

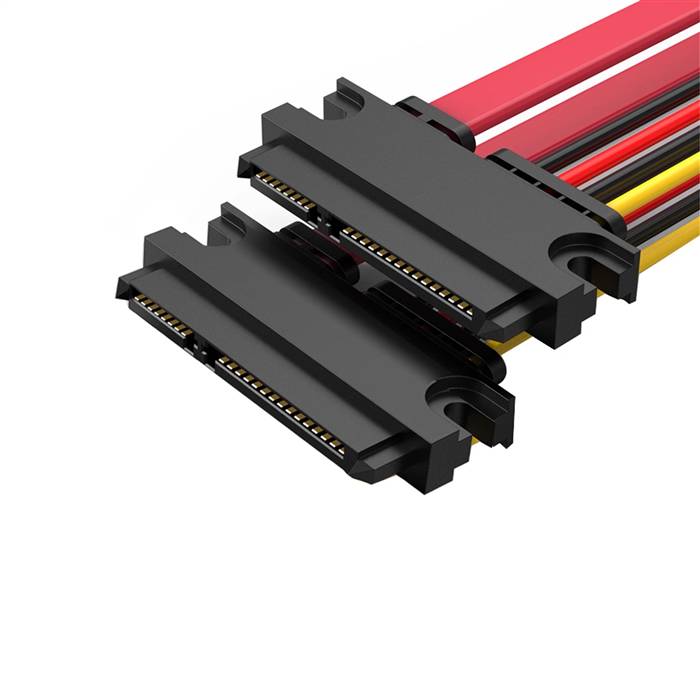

• Complete Interface Extension: Provides full SATA 22-pin (7+15) female to female connectivity
• Integrated Data and Power: Combines both data transmission and power delivery in a single cable
• High-Speed Performance: Supports SATA III 3.0 specifications with up to 6 Gbps data transfer rates
• Enhanced Compatibility: Maintains compatibility with all SATA generations (1.0, 2.0, 3.0)
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation
• Superior Shielding: Advanced shielding technology minimizes signal interference and crosstalk

Specifications

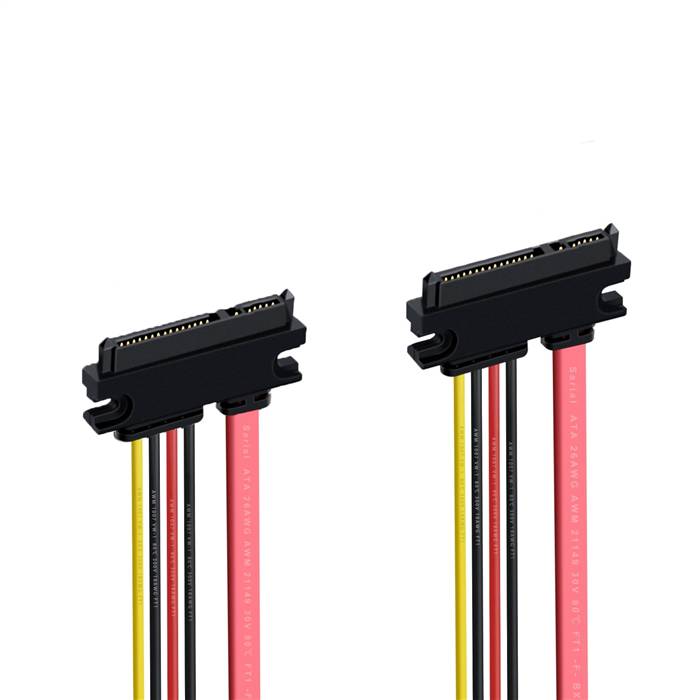

• Host Connector: SATA 22-pin (7+15) Female

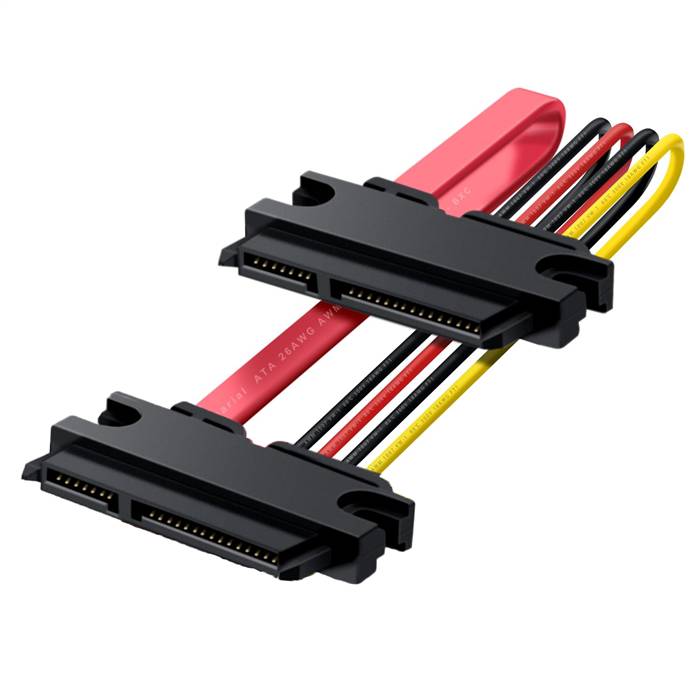

• Device Connector: SATA 22-pin (7+15) Female
• Data Rate Support: Up to 6 Gbps (SATA III 3.0 compatible)
• Supported Protocols: SATA 3.0/2.0/1.0
• Power Delivery: Integrated power delivery (12V/5V/3.3V) through 15-pin power section
• Cable Length: Typically 0.1m, 0.3m, 0.5m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 2,500+ mating cycles (SATA connectors)
• Wire Gauge: 28-30 AWG (data), 18-22 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Contact Plating: Gold-plated contacts (15?" thickness typical)
• Impedance: 100? ±10% (characteristic impedance)
• Dielectric Withstanding Voltage: 500V AC

Applications

• Storage Expansion: Extending connections for additional drives in limited-space systems
• System Integration: Flexible drive placement in complex storage configurations
• Test Benches: Temporary connectivity for testing and diagnostics of SATA devices
• Data Recovery: Facilitating drive connections for data retrieval operations
• Backup Solutions: Creating flexible backup systems with extended connectivity options
• Server Environments: Adding connectivity flexibility in server rack configurations
• Technical Support: Field service applications requiring interface extension
• Educational Labs: Teaching storage technology and interface compatibility concepts
