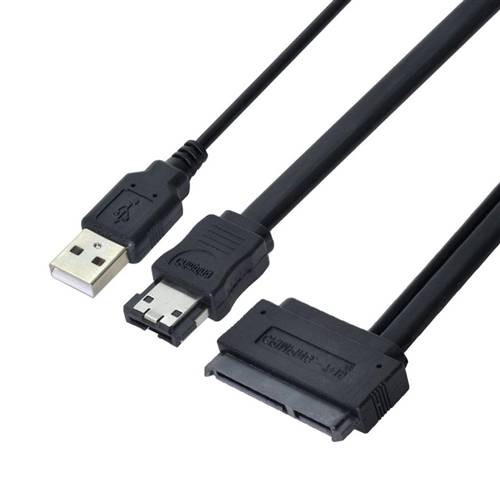

SATA 22P (7+15) Female to eSATA with USB 2.0 (Power Only) Cable

The SATA 22P (7+15) Female to eSATA with USB 2.0 (Power Only) Cable is a specialized interface adapter designed to connect standard internal SATA devices to external eSATA ports while utilizing USB for auxiliary power delivery. This cable integrates a 22-pin SATA female connector with an eSATA data interface and a dedicated USB 2.0 power connector, providing a complete solution for externalizing storage devices. Engineered for reliability and convenience, it enables stable high-speed data transmission through the eSATA interface while drawing necessary power from a standard USB port, making it ideal for connecting 2.5-inch hard drives and SSDs to computers, laptops, and other host systems with eSATA capability.

Features

• Dual-Function Design: Combines eSATA data transfer with USB power delivery in a single cable solution
• External Connectivity: Enables internal SATA drives to function as external storage via eSATA interface
• Dedicated Power Supply: USB 2.0 connector provides necessary power for 2.5-inch drives (5V operation)
• High-Speed Data Transfer: Supports SATA 3.0 specifications with up to 6 Gbps transfer rates
• Compact Design: Space-efficient connectors ideal for portable applications
• Plug-and-Play Operation: Requires no additional drivers or software for installation
• Reliable Shielding: Built-in protection against electromagnetic interference
• Secure Connection: Firm-fitting connectors ensure stable operation

Specifications

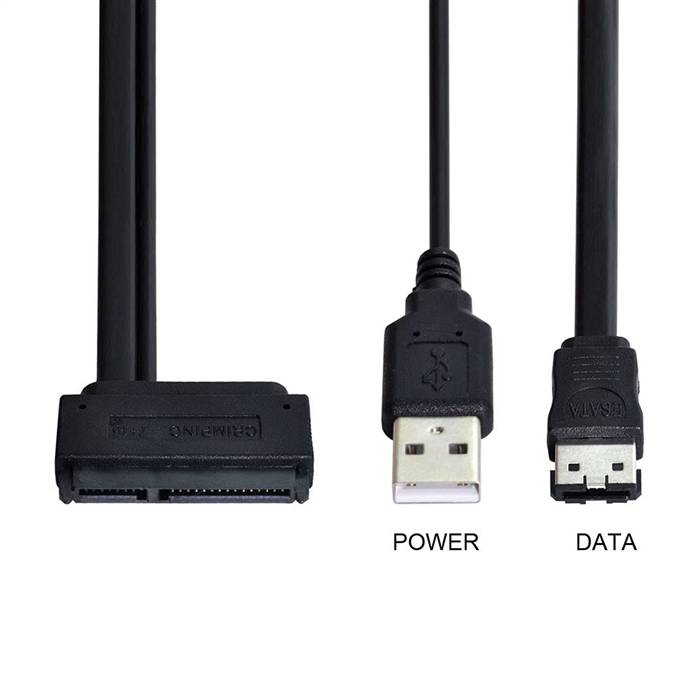

• Host Connector: SATA 22-pin (7+15) Female
• Device Connector: eSATA Male
• Power Connector: USB 2.0 Type-A Male (Power Only)
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0, SATA 2.0
• Power Output: 5V via USB connector (supports 2.5" drives only)
• Cable Length: Standard 0.5m (other lengths available)
• Operating Temperature: 0°C to +70°C
• Connector Durability: 1,500 mating cycles (USB), 2,500 mating cycles (SATA/eSATA)

Applications

• Laptop Expansion: Connecting internal drives to laptops with eSATA ports
• External Storage Access: Temporarily accessing SATA drives without internal mounting
• Data Recovery: Quick connection for data retrieval from 2.5-inch drives
• Test Benches: Diagnostic testing of SATA drives in workshop environments
• Desktop External Storage: Adding external storage options to desktop systems
• Backup Solutions: Creating portable backup systems with existing internal drives
• Field Service: Technical support and IT maintenance applications
• Educational Environments: Teaching storage technology and data management concepts

Compatibility Notes

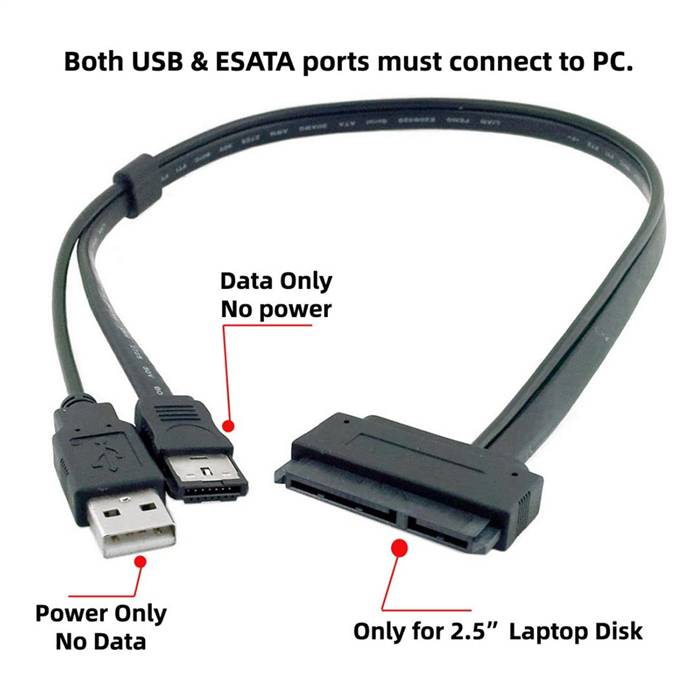

This cable is specifically designed for 2.5-inch SATA drives which typically operate on 5V power. It is not suitable for 3.5-inch drives which require additional 12V power. The USB connector is for power delivery only and does not support data transmission. Ensure your host system has an available eSATA port for data connection and a USB port for power supply.
