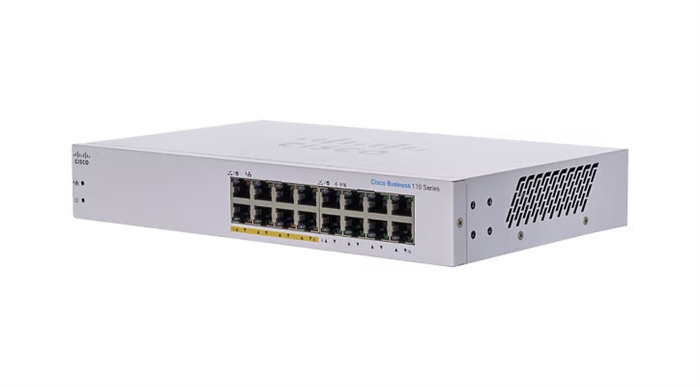

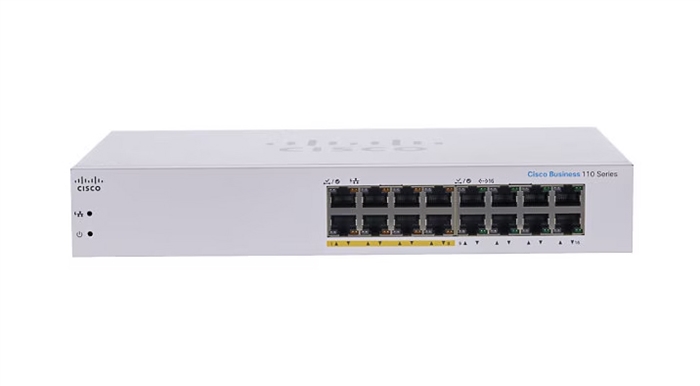

The Cisco CBS110-16PP-NA is a 16-port, unmanaged, gigabit Ethernet switch with 8 ports supporting Power over Ethernet (PoE) and a 64W PoE budget. It features a 400MHz ARM processor, 128MB RAM, and 16MB flash memory, with physical dimensions of 10.9" x 6.7" x 1.7" (W x D x H) and a weight of approximately 2.87 lbs. The switch is designed for small businesses, offers plug-and-play functionality, and includes features like QoS, loop detection, and energy efficiency.

Key Specifications

• Product Name: Cisco Business 110 Series Unmanaged Switch (CBS110-16PP-NA)
• Type: Unmanaged, Layer 2 Ethernet Switch
• Ports: 16 x Gigabit Ethernet ports
• PoE Ports: 8 x ports with Power over Ethernet (PoE) support
• PoE Budget: 64 Watts
• Processor: 400 MHz ARM processor
• Memory: 128MB RAM, 16MB Flash memory
• Form Factor: Desktop, Rack-mountable, Wall-mountable
• Dimensions: 10.9" W x 6.7" D x 1.7" H (27.9 cm x 17 cm x 4.4 cm)
• Weight: Approximately 2.87 lbs (1.3 kg)

Features

• Plug-and-Play: Easy to install and use without requiring IT knowledge.
• PoE Capability: Simplifies deployment of IP phones, wireless access points, and surveillance cameras by providing power over the Ethernet cable.
• Energy Efficiency: Includes power savings features like Energy Efficient Ethernet (EEE).
• Network Features: Supports Quality of Service (QoS), loop detection, and cable diagnostics for enhanced network performance.
• Security: Features a Kensington security slot for physical security.
• Compliance: FCC Class B certified and compliant with other relevant industry standards like UL 60950 and CSA 22.2.
