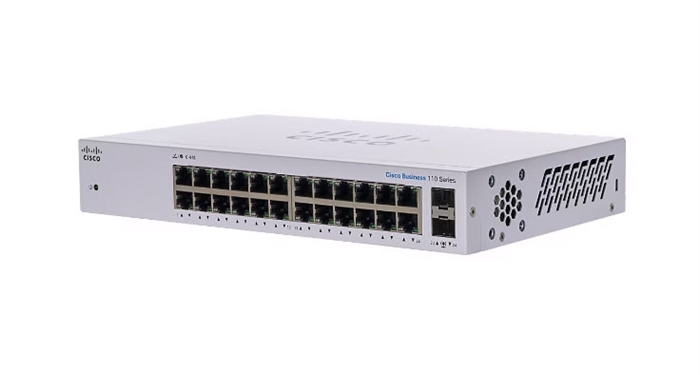

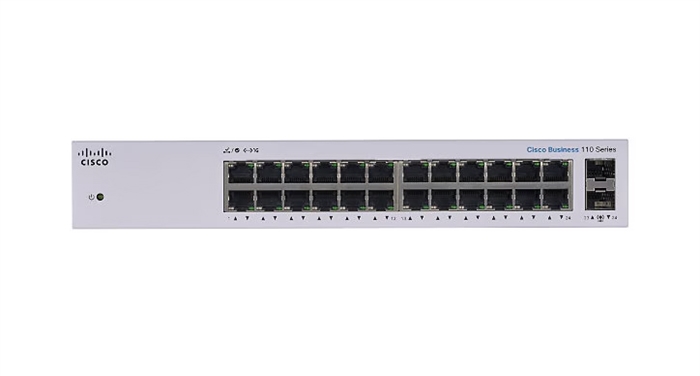

The Cisco CBS110-24T-NA is a 24-port, unmanaged, Layer 2 Gigabit Ethernet switch with two SFP uplink slots, a 48 Gbps switching capacity, and support for standards like IEEE 802.3az for energy efficiency. It offers plug-and-play simplicity, a desktop or rack-mountable form factor, and a compact design.

Key Specifications

• Ports: 24 x 1 Gigabit RJ-45 Ethernet ports, 2 x 1 Gigabit SFP combo uplink ports.
• Switching Capacity: 48 Gbps.
• Forwarding Rate: 35.7 Mpps.
• MAC Address Table Size: 8,000 entries.
• Jumbo Frames: Supports 9216 bytes.
• Protocols: Layer 2, supports IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.1p, 802.3x, and 802.3az (Energy Efficient Ethernet).
• Security: Supports Kensington Lock.

Performance & Management

• Unmanaged: No configuration or IT expertise is required for setup, offering plug-and-play functionality.
• Integrated QoS: Features Quality of Service (QoS) to optimize performance for delay-sensitive services.
• Energy Efficient: Utilizes Energy Efficient Ethernet (IEEE 802.3az) to reduce power consumption.

Physical Characteristics

• Form Factor: Desktop or rack-mountable design.
• Dimensions: 11 x 6.7 x 1.7 inches (27.9 x 17 x 4.3 cm).
• Weight: Approximately 3.44 lb (1.56 kg).
• Power: Operates on 110 to 240 VAC, 60 / 50 Hz.

Compatible Transceivers

The Cisco CBS110-24T-NA switch features two Gigabit SFP (Mini-GBIC) combo uplink ports, which support standard 1000BASE SFP transceivers.
