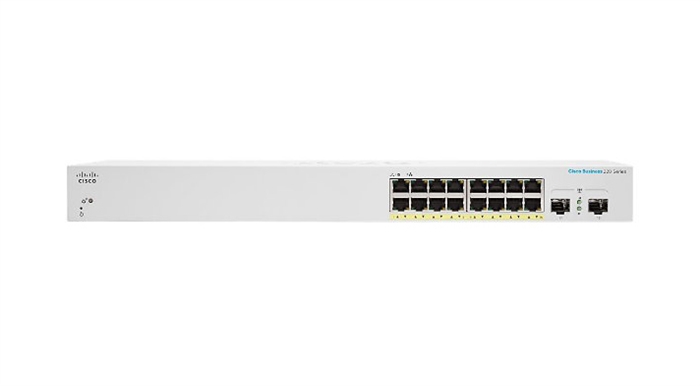

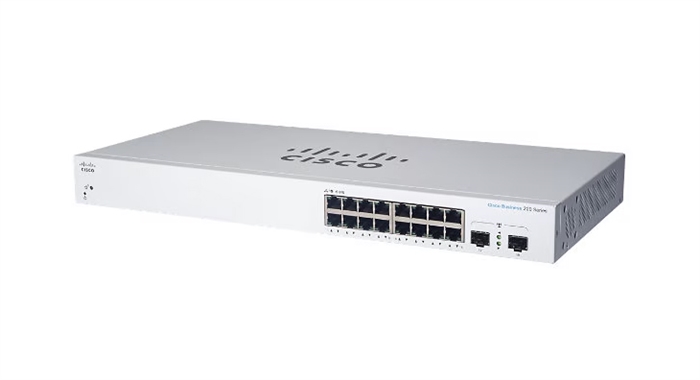

The Cisco CBS220-16P-2G-NA is a smart, 18-port Gigabit
Ethernet switch with 16 PoE+ ports, a 130W total PoE budget,
and 2 Gigabit SFP uplink ports for optical fiber connections. It
features a switching capacity of 36 Gbps and a forwarding rate
of 26.78 Mpps, with management via a web interface, a mobile app, and
the Cisco Business Dashboard. Security features include ACLs, port
security, and support for 802.1X authentication.
Key Specifications
- Device
Type: Smart, Rack-mountable, Gigabit Ethernet Switch
- Ports:
16 x 10/100/1000 PoE+ RJ45 Ports, 2 x 1000Base-X SFP Uplink Ports
- PoE
Budget: 130 Watts, supporting PoE+ standards
- Switching
Capacity: 36 Gbps
- Forwarding
Performance: 26.78 Mpps (64-byte packets)
- Management:
Web-based interface, Cisco Business Dashboard, and mobile app
- Security
Features: Access Control Lists (ACLs), IEEE 802.1X, Port Security,
Storm Control, and support for RADIUS/TACACS+
- Memory:
64 MB flash memory and 256 MB RAM
- MAC
Address Table Size: 8,192 entries
- Jumbo
Frame Support: Up to 9216 bytes
- Protocols:
IGMPv2/v3, MSTP, RSTP, STP, and more
Features
- PoE+
Support: Power and data over a single cable, enabling deployment of
wireless access points, IP cameras, and videophones.
- Smart
Management: A user-friendly dashboard and mobile application simplify
network deployment, monitoring, and management for small businesses.
- Advanced
Network Features: Includes support for VLANs, QoS, IGMP Snooping, and
Voice VLANs.
- Robust
Security: Implements port security, 802.1X authentication, ACLs, and
various storm controls to protect the network.
- Energy
Efficient: Features Energy Efficient Ethernet (EEE) for power savings.
Compatible Transceivers
The CBS220-16P-2G-NA switch uses two standard 1 Gigabit
Ethernet SFP (Small Form-Factor Pluggable) uplink ports, so it is compatible
with 1000Base SFP modules.
|
|
|
