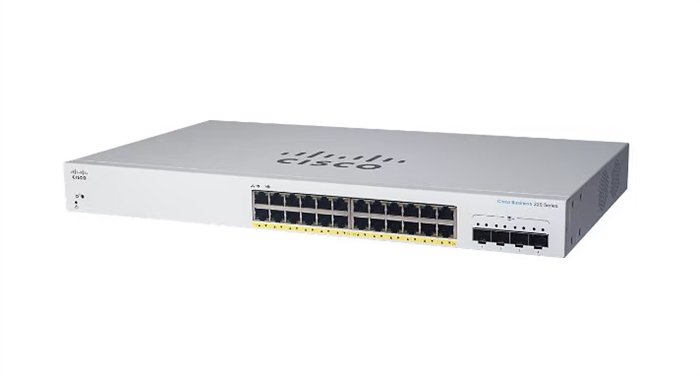

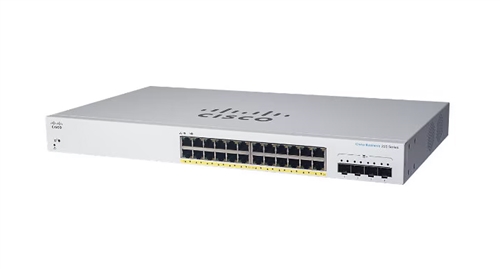

The Cisco CBS220-24FP-4G-NA is a 24-port Gigabit PoE+ smart switch with a 382W total PoE budget, 4 Gigabit SFP uplink ports, a 56 Gbps switching capacity, and 41.66 Mpps forwarding rate. It supports features like VLANs, QoS, IGMP snooping, 802.1x authentication, and has a rack-mountable, smart managed design.

Key Specifications

• Ports: 24 x 10/100/1000 Gigabit Ethernet (PoE+)
• Uplink Ports: 4 x 1 Gigabit Ethernet SFP
• PoE Budget: 382 Watts
• PoE Standard: IEEE 802.3af/at (PoE+)
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.66 Million packets per second (Mpps)
• MAC Address Table Size: 8,192 entries
• Jumbo Frame Support: Up to 9216 bytes
• Management Type: Smart Managed, Web Managed
• Device Type: Rack-mountable smart switch

Key Features

• Power over Ethernet (PoE+): Streamlines deployment for devices like wireless access points, IP phones, and cameras.
• VLAN Support: Allows for the creation of virtual LANs for network segmentation.
• Quality of Service (QoS): Prioritizes network traffic.
• IGMP Snooping: Improves multicast traffic efficiency.
• 802.1x Authentication: Provides port-based network access control.
• Rack-Mountable: Designed to be installed in a network rack.
• Dual Firmware Images: Allows for redundant firmware.

Compatible Transceivers

The CBS220-24FP-4G-NA supports Gigabit SFP transceivers for its four SFP uplink ports, which are designed for Gigabit Ethernet over fiber.
