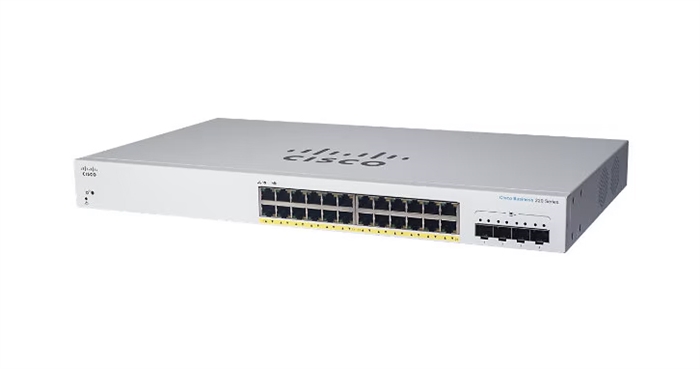

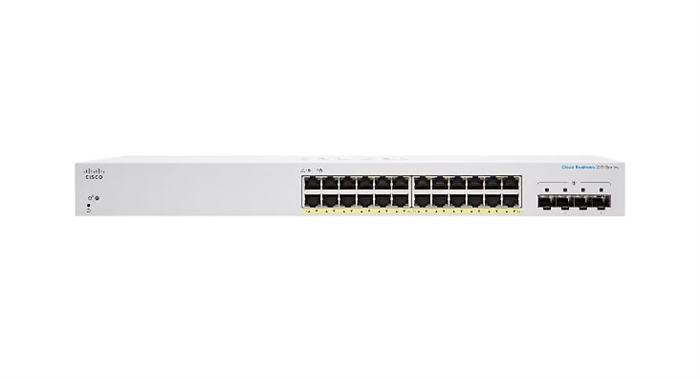

The Cisco CBS220-24P-4G-NA is a 24-port Gigabit Ethernet smart switch with 4 Gigabit SFP uplink ports and a total PoE budget of 195W, supporting PoE+ up to 30W per port. It offers Layer 2 switching with features like VLANs, QoS, IGMP Snooping, and advanced security through 802.1X authentication and ACLs. The switch provides a user-friendly web-based dashboard and mobile app for management.

Key Features

• Ports: 24 x 10/100/1000 Gigabit Ethernet PoE+ ports and 4 x 1000Base-X SFP uplink ports.
• PoE Budget: 195W total, with support for PoE+ up to 30W per port.
• Management: Smart, web-managed switch with a user-friendly dashboard and mobile app support.
• Layer 2 Features: VLANs, Quality of Service (QoS), IGMP Snooping, Link Aggregation (LACP), and Auto Voice VLAN.
• Security: DoS attack prevention, 802.1X port-based authentication, Access Control Lists (ACLs), and MAC filtering.
• Performance: 56 Gbps switching bandwidth, 41.66 Mpps forwarding rate, and a 4.1 Mb packet buffer.
• Connectivity: Rack-mountable with an elegant and compact design.

Ideal Use Cases

• Small to Medium-Sized Businesses: Provides essential network features and PoE to support devices like wireless access points and IP phones.
• Growing Networks: Delivers advanced capabilities and performance to meet the demands of modern business environments.
• Flexible Deployment: The compact, rack-mountable design is suitable for installations in various settings, including open-plan offices and retail stores.

Compatible Transceivers

The CBS220-24P-4G-NA smart switch is compatible with 1000Base-X SFP transceivers, which provide 1 Gigabit connectivity over fiber or other media.
