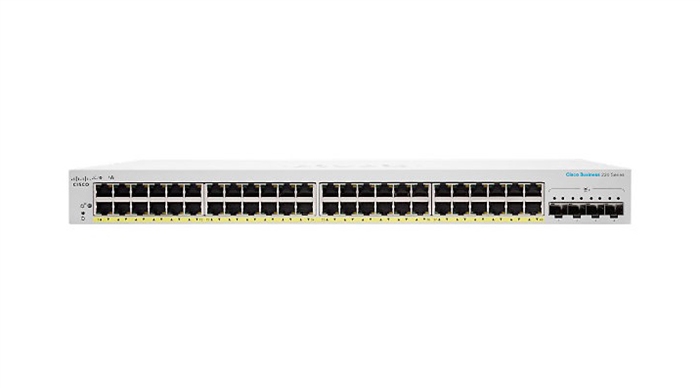

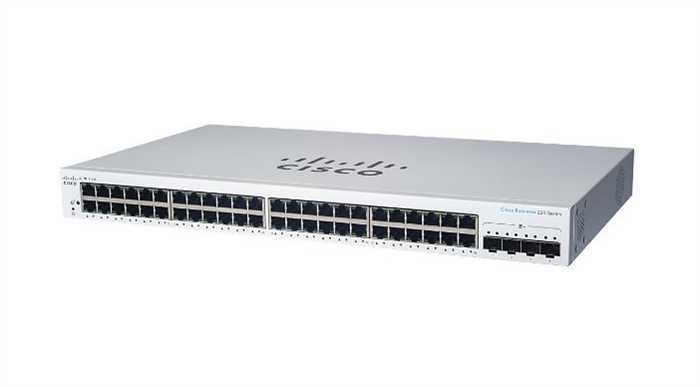

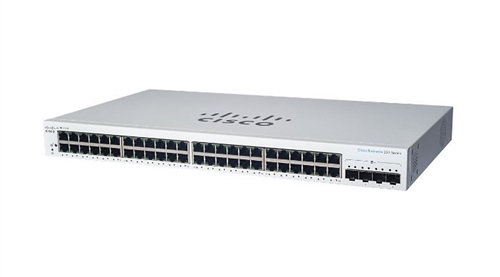

The Cisco CBS220-48FP-4X-NA is a smart switch with 48 Gigabit Ethernet ports that support PoE+, providing up to 30W per port for a total budget of 740W, and 4 x 10 GbE SFP+ uplink ports for high-speed connectivity. Key features include a 176 Gb/s switching bandwidth, a forwarding rate of 130.94 Mpps, support for Layer 2 features, and a rack-mountable design. It also offers management via an intuitive dashboard and mobile app.

Key Specifications

• Ports:
• 48 x 1 GbE RJ-45 PoE+ ports (up to 30W per port)
• 4 x 10 GbE SFP+ uplink ports
• PoE Budget: 740W
• Switching Bandwidth: 176 Gb/s
• Forwarding Rate: 130.94 Mpps
• Management Type: Smart, web-managed
• Management Interface: Intuitive dashboard and mobile app support
• Security: DoS attack prevention, RADIUS authentication, MAC Filtering
• Supported Protocols: VLANs, QoS, Voice VLAN, IGMP Snooping, Link Aggregation, Auto-MDIX/MDI
• Physical Characteristics:
• Form Factor: Rack-mountable
• Dimensions: 17.3" x 10.1" x 1.7" (WxDxH)
• Weight: 12.46 lb (5.65 kg)
• Cooling: Fan-cooled

Key Features

• Full PoE+ Power: The switch is designed to deliver full PoE+ power across its 48 ports, making it suitable for powering IP phones, wireless access points, and other PoE-compatible devices.
• High-Speed Uplinks: The four 10 GbE SFP+ ports provide high-bandwidth connectivity for uplinks to core switches or servers.
• Business-Class Features: The switch supports features essential for business networks, including VLANs, Quality of Service (QoS), and IGMP snooping for efficient network traffic management.
• Ease of Management: Management is simplified through an intuitive web-based dashboard and a mobile app, which bridge the gap between unmanaged and fully managed switches.

Compatible Transceivers

The CBS220-48FP-4X-NA supports 10G SFP+ transceivers because it features 4 x 10GBase-X SFP+ uplink ports.
