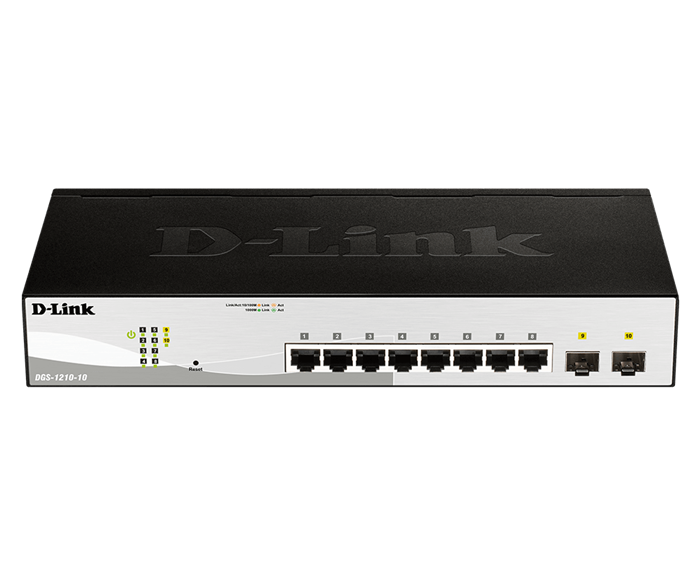

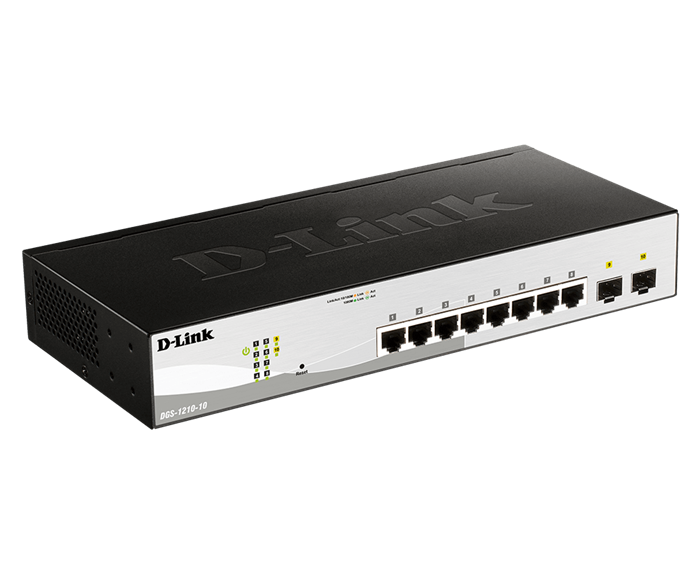

The D-Link DGS-1210-10 is a 10-port Gigabit Web Smart Switch featuring 8 10/100/1000BASE-T ports and 2 SFP combo ports for fiber uplinks, offering Layer 2+ management with features like VLAN, QoS, Link Aggregation, and advanced security via ACL and 802.1X, all in a fanless, energy-efficient design with support for IPv6.

Key Specifications

• Ports: 8 x 10/100/1000BASE-T (RJ-45) + 2 x SFP combo ports
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps (Million packets per second for 64-byte packets)
• Packet Buffer Memory: 4.1 Mbits
• MAC Address Table: 8K or 16K (depending on model)
• Layer: Layer 2+

Key Features

• Traffic Management:
• VLANs: Supports 802.1Q, Q-in-Q, and Auto Voice VLAN
• Quality of Service (QoS): Bandwidth control, traffic prioritization
• Link Aggregation (LACP): IEEE 802.3ad for increased bandwidth
• IGMP Snooping: Optimizes multicast traffic
• Security:
• Access Control List (ACL): Filters traffic
• IP-MAC Port Binding (IMPB): Prevents unauthorized access
• IEEE 802.1X: Port-based network access control
• D-Link Safeguard Engine: Protects the switch from traffic flooding
• Reliability:
• Loopback Detection: Identifies network loops
• Cable Diagnostics: Helps troubleshoot cabling issues
• ERPS (Ethernet Ring Protection Switching): Sub-50ms recovery for metro Ethernet versions
• Management:
• Web-based Interface: Intuitive graphical interface
• SNMP: v1, v2c, v3 support
• CLI (Command Line Interface): Text-based management
• SmartConsole Utility: D-Link's management tool
• Energy Efficiency: D-Link Green 3.0 technology and IEEE 802.3az Energy Efficient Ethernet

Physical & Environmental

• Design: Fanless
• Dimensions: 280mm x 126mm x 44mm
• Weight: Approx. 1.54 kg (3.39 lbs)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Compatible Transceivers

The DGS-1210-10 uses Gigabit (1G) SFP transceivers.
