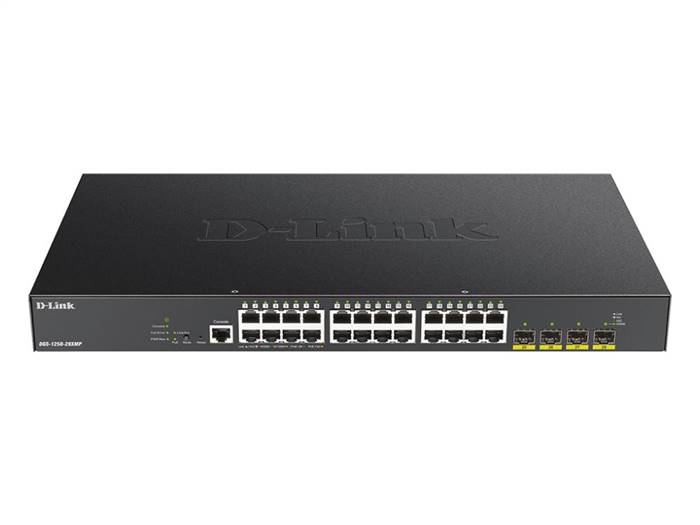

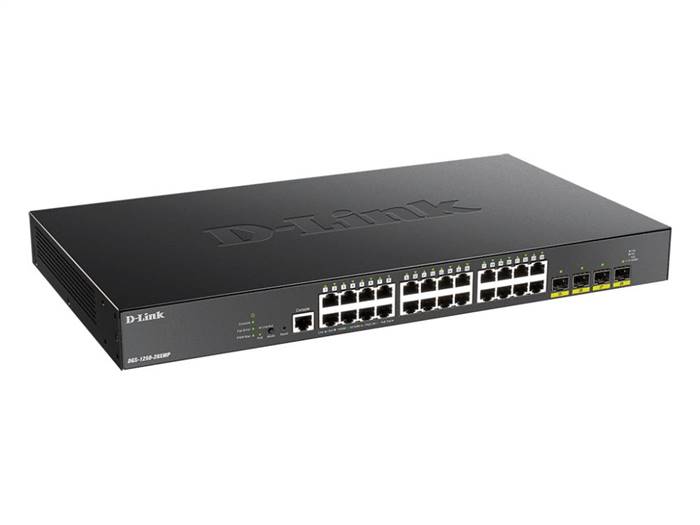

The DGS-1250-28XMP-6KV is a 28-port smart-managed switch by D-Link featuring 24 x 10/100/1000 Mbps PoE+ ports, 4 x 10 Gigabit SFP+ uplink ports, a 370W PoE budget, Lite L3 static routing, 6kV surge protection, and comprehensive security and management features like ACLs, 802.1X, Full CLI, and QoS. It's designed for SMBs and enterprises, offering high-speed connectivity, power delivery, and enhanced network control.

Key Specifications:

• Device Type: Smart Managed Switch
• Ports: 24 x 10/100/1000BASE-T (PoE+), 4 x 10G SFP+
• PoE Budget: 370W (802.3af/at)
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.24 Mpps
• Surge Protection: 6kV on all Gigabit Ethernet access ports
• Routing: Lite L3 Static Routing

Key Features:

• PoE+ Support: Provides up to 30W per port for devices like IP cameras, VoIP phones, and access points.
• High-Speed Uplinks: Four 10G SFP+ ports for fast connections to core networks or servers.
• Advanced Security: Includes ACLs, ARP Inspection, IP-MAC-Port Binding (IMPB), and 802.1X authentication.
• Network Resilience: Supports STP, RSTP, and MSTP for loop prevention and network stability.
• Management: Full Command Line Interface (CLI), web-based management, and supports SNMP and SSH v2.
• Quality of Service (QoS): Enables prioritization of critical network traffic.
• Dual Image & Configuration: Allows for safe firmware upgrades and reduced downtime.

Best For:

• Small-to-Medium Businesses (SMBs)
• Enterprise Access & Aggregation networks
• Deploying IP surveillance systems, VoIP, and wireless networks

Compatible Transceivers

The DGS-1250-28XMP-6KV switch uses 10G SFP+ transceivers for its four uplink ports, allowing for flexible media choices like multimode fiber (MMF) or single-mode fiber (SMF) for high-speed connections.
