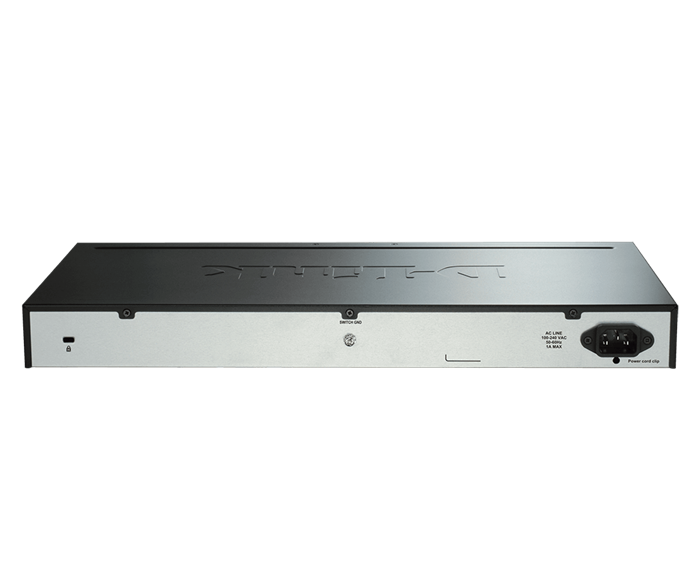

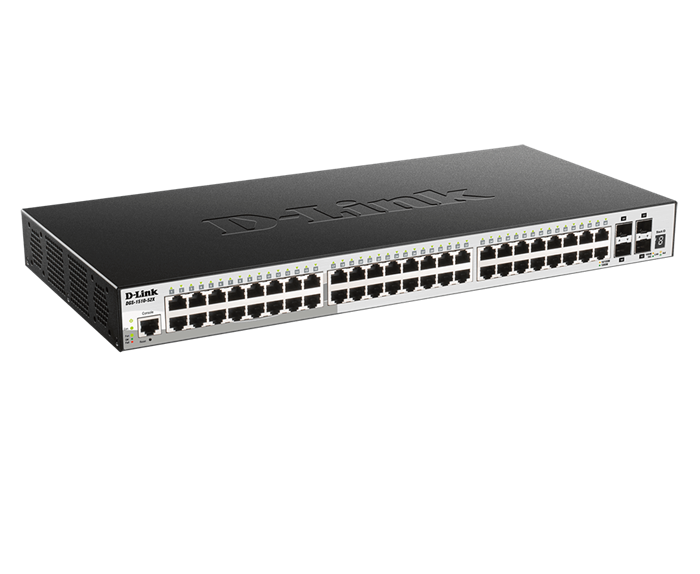

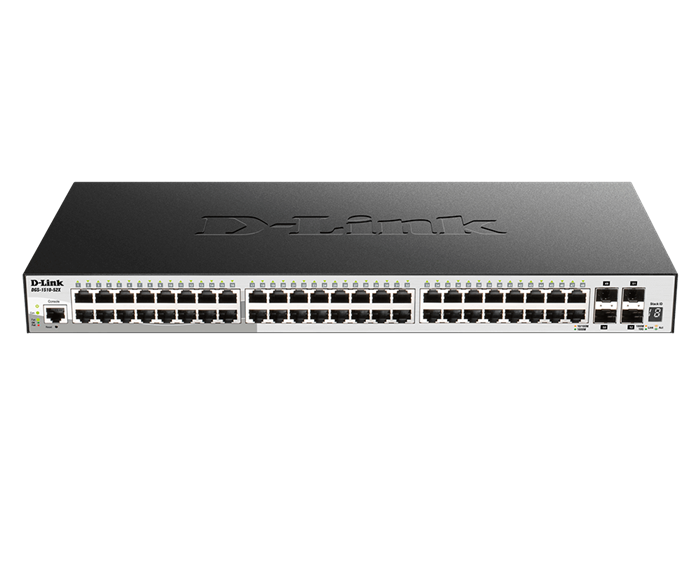

The DGS-1510-52X is a 52-port managed Gigabit Ethernet switch with 48 x 10/100/1000BASE-T ports and 4 x 10GbE SFP+ uplinks. It features Layer 2+ management, physical stacking of up to six units, and advanced security and routing protocols. Key specifications include a 176 Gbps switching capacity, 130.95 Mpps forwarding performance, and an internal power supply.

Core specifications

• Port configuration: 48 x 10/100/1000BASE-T (Gigabit Ethernet) and 4 x 10GbE SFP+ ports
• Switching capacity: 176 Gbps
• Forwarding performance: 130.95 Mpps (64-byte packet size)
• Stacking: Physical stacking of up to 6 devices via the 10GbE SFP+ ports
• Management: Smart managed, with a command-line interface (CLI), web-based management, and support for Single IP Management (SIM)

Key features

• Layer 2+ and Layer 3 Lite: Supports advanced Layer 2 features and static routing, including static IPv4 and IPv6 routing
• Security: Includes features such as Port Security, ARP Inspection, and SSL/SSH for secure management
• Resilience: Supports Ethernet Ring Protection Switching (ERPS) and various Spanning Tree protocols (STP, MSTP, RSTP)
• IPv6 support: Certified IPv6 ready (Phase 2) and supports IPv6 functions like snooping and ACLs
• Physical: 1U rack-mountable, with an internal power supply and a weight of 5.29 lbs

Compatible Transceivers

The D-Link DGS-1510-52X switch has four 10G SFP+ ports which are compatible with a range of Direct Attach Cables (DACs), and industry-standard SFP+ and SFP modules.
