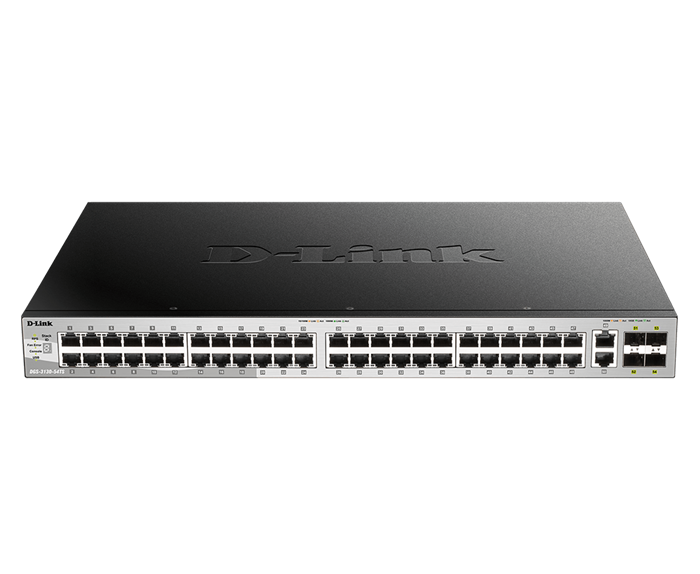

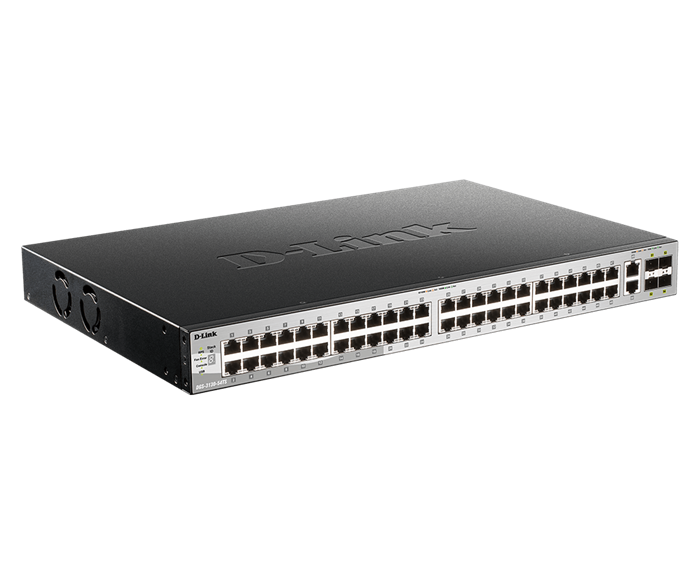

The DGS-3130-54TS is a 54-port Lite Layer 3 stackable managed Gigabit switch featuring 48 x 10/100/1000BASE-T ports, 2 x 10GBASE-T ports, and 4 x 10G SFP+ uplinks, with a 216 Gbps switching capacity, and supports physical stacking up to 9 units for scalability. Key features include advanced L2/L3 routing (RIP, OSPF), Ethernet Ring Protection Switching (ERPS), extensive security (ACLs, DHCP Snooping), and Quality of Service (QoS) for enterprise networks.

Key Specifications:

• Ports:
• 48 x 10/100/1000BASE-T (Gigabit Ethernet) ports
• 2 x 10GBASE-T (10 Gigabit Ethernet) ports
• 4 x 10G SFP+ (Small Form-factor Pluggable Plus) ports
• 1 x Console Port (RJ-45)
• 1 x Management Port (10/100/1000BASE-T RJ-45)
• 1 x USB 2.0 Type A Port
• Performance:
• Switching Capacity: 216 Gbps
• Forwarding Rate: 161 Mpps (Million packets per second)
• MAC Address Table Size: 16K entries
• Jumbo Frame Support: 9KB
• Stacking:
• Supports physical stacking for scalability
• Up to 9 units can be stacked
• 80 Gbps per device stacking bandwidth
• Routing & L3 Features:
• Lite Layer 3 capabilities
• Supports Static Routing, RIP, RIPng, OSPFv2/v3
• VRRP (Virtual Router Redundancy Protocol)
• Redundancy & Reliability:
• Dual power inputs and support for an optional RPS
• Ethernet Ring Protection Switching (ERPS)
• 6 kV surge protection
• Spanning Tree Protocols (STP, RSTP, MSTP)
• Management & Security:
• Web-based GUI, Command Line Interface (CLI), Telnet, SSH
• SNMP v1/v2c/v3
• Access Control List (ACL) support
• DHCP Snooping, IP-MAC-Port Binding
• IEEE 802.1X authentication
• QoS/CoS:
• Multi-layer Quality of Service (QoS) and Class of Service (CoS)
• Strict Priority (SP), Weighted Round Robin (WRR)
• Environmental:
• Smart fan that self-adjusts for optimal temperature

Typical Use Cases:
This switch is suitable as a core or aggregation switch in medium to large enterprise networks, supporting complex routing, high-bandwidth applications, and scalable network growth.

Compatible Transceivers

The DGS-3130-54TS switch uses SFP and SFP+ transceivers in its four 10G SFP+ ports for fiber optic connectivity and RJ-45 transceivers (built-in) for its 48 Gigabit Ethernet copper ports, allowing connection to various devices and long-distance fiber runs. You can use a range of compatible 10G SFP+ modules (like SX, LX, or LR) for fiber, or standard RJ-45 transceivers for copper, to achieve different speeds and distances.
