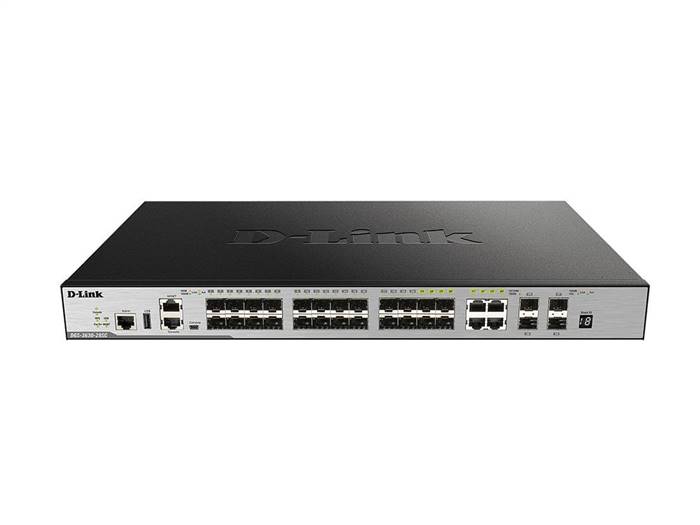

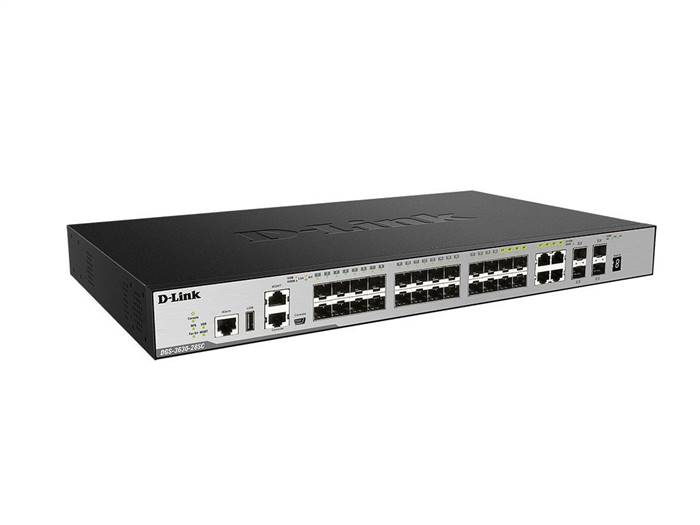

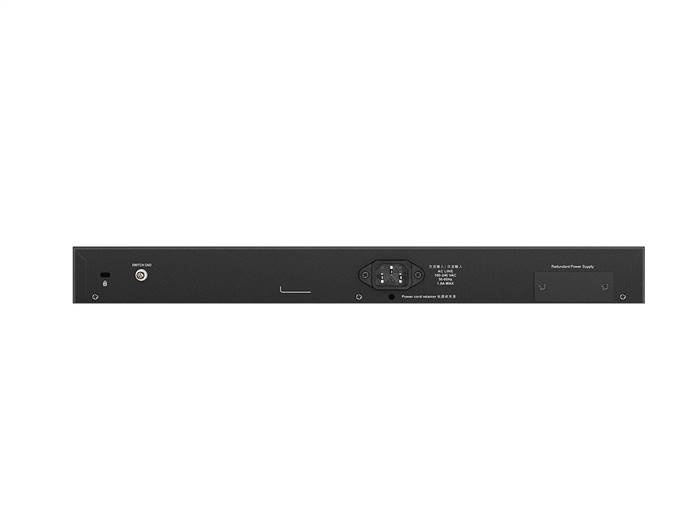

The DGS-3630-28SC-SI is a 28-port Layer 3 stackable managed Gigabit switch featuring 20 SFP ports, 4 combo 10/100/1000BASE-T/SFP ports, and 4 10GbE SFP+ ports. It has a switching capacity of 128 Gbps and a packet forwarding rate of 95.24 Mpps. The switch supports stacking with up to 9 units and includes a variety of management and security features.

Ports

• SFP: 20 x 1000Base-X SFP ports
• Combo: 4 x 10/100/1000BASE-T/SFP combo ports
• 10 GbE SFP+: 4 x 10GbE SFP+ ports for uplinks
• Management: 1 x RJ-45 management port and 1 x RJ-45/Mini-USB console port
• USB: 1 x USB 2.0 Type A port
• Alarm: 1 x RJ-45 alarm port

Performance

• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.24 Mpps
• MAC Address Table: 68,000 entries
• Max VLANs: 4,000
• Stacking: Supports up to 9 units per physical stack with an 80 Gbps stacking bandwidth

Features

• Layer: Layer 3
• Management: Web-based, SNMP, Telnet, and CLI
• Security: Supports 802.1X, MAC address filtering, and various storm control and filtering features
• Power: 100 to 240 VAC, 50/60 Hz input
• Power Consumption: 63.58 W
• Heat Dissipation: 216.81 BTU/h
• Form Factor: 19-inch, 1U rack-mount

Compatible Transceivers

The D-Link DGS-3630-28SC/SI switch is compatible with a range of D-Link branded 1GbE SFP and 10GbE SFP+ transceivers and Direct Attach Cables (DACs). The switch features 20 x 1GbE SFP ports, 4 x combo 1GbE/RJ-45 ports, and 4 x 10GbE SFP+ ports.
