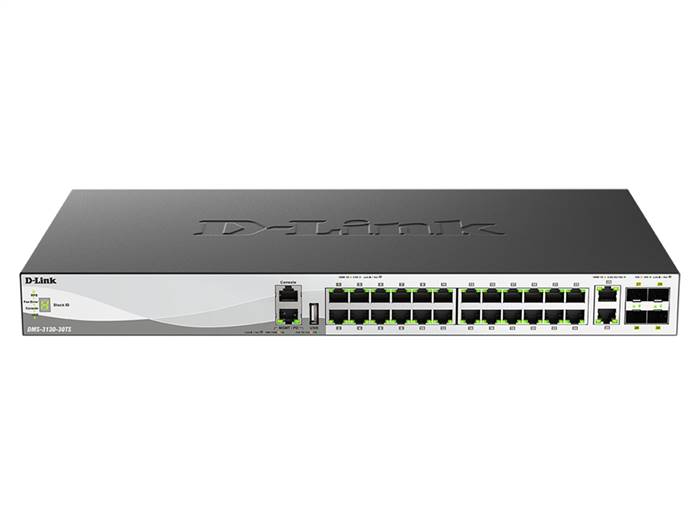

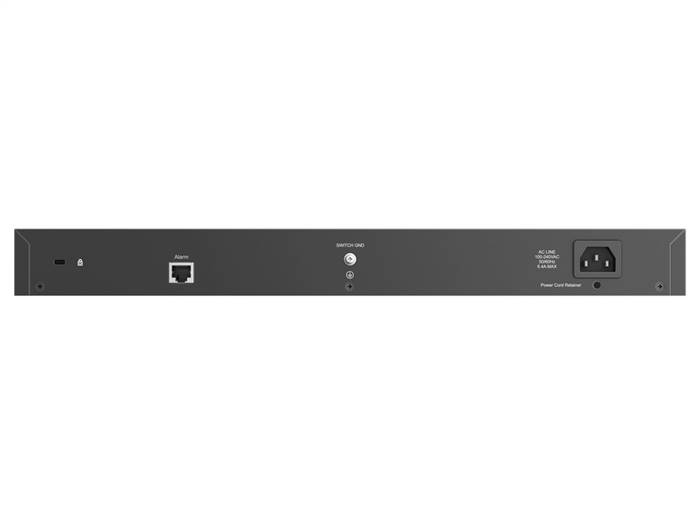

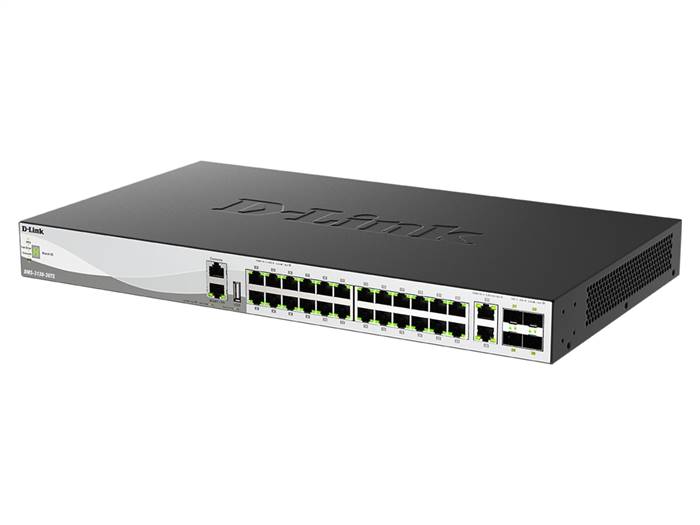

The D-Link DMS-3130-30TS is a 30-port, layer 3 stackable managed multi-gigabit switch with 24 x 1/2.5G Ethernet ports, 2 x 10GBASE-T ports, and 4 x 10/25G SFP28 ports. Key specifications include a 360 Gbps switching capacity, a 268 Mpps forwarding rate, and 4 MB packet buffer memory. It supports features like 6 kV surge protection, L2/L3 management, and multiple spanning tree protocols.

Ports and interfaces

• Total Ports: 30
• RJ-45 Ports: 24 x 100M/1/2.5GBASE-T
• 10GBASE-T Uplinks: 2 x 100M/1/2.5/5/10GBASE-T
• SFP28 Uplinks: 4 x 10/25G SFP28 ports
• Console: 1 x 10/100/1000BASE-T RJ-45 port for out-of-band management
• Stacking: 1 x Stacking Cost and 4 x Stacking Ports
• USB: 1 x USB 2.0 Type A port

Performance

• Switching Capacity: 360 Gbps
• Packet Forwarding Rate: 268 Mpps (64-Byte packets)
• Packet Buffer Memory: 4 MB

Key features

• Switching: Layer 3 Stackable Multi-Gigabit Managed Switch
• Security:
• Integrated 6 kV surge protection on 2.5G and 5G ports
• Supports 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC)
• D-Link Safeguard Engine
• IP Source Guard, DHCP Snooping, and ARP Inspection
• Reliability:
• Physical stacking of up to 9 units
• Supports high-bandwidth stacking and fault-tolerant topologies
• 802.1D/w/s Spanning Tree protocols
• Ethernet Ring Protection Switching (ERPS)
• Management:
• Unified software with powerful L2 and L3 features
• Includes Static Route, RIP, and OSPFv2/v3 support
• Includes QoS and D-Link Safeguard Engine

Compatible Transceivers

The D-Link DMS-3130-30TS is compatible with SFP28 transceivers for its 10/25G uplink ports. .
