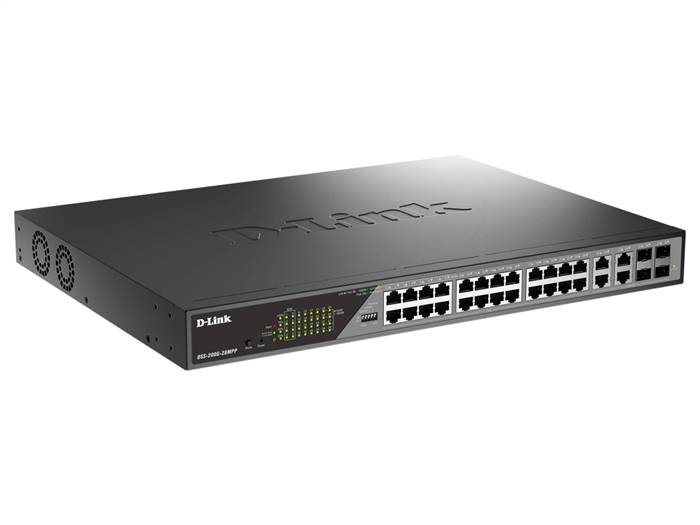

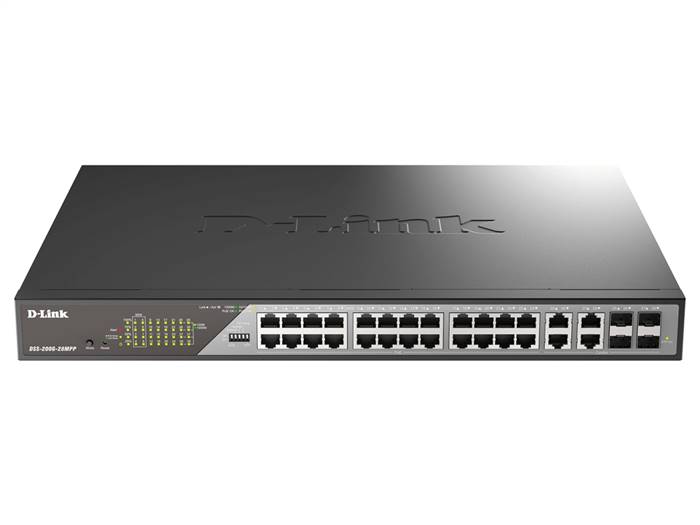

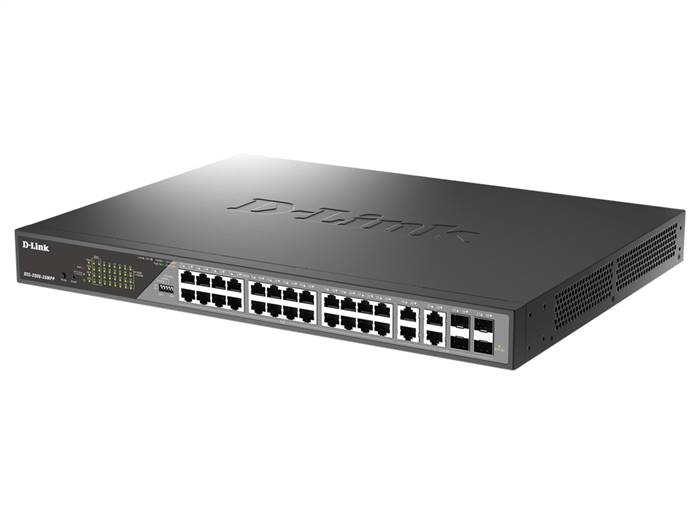

The D-Link DSS-200G-28MPP is a 28-port smart managed surveillance switch with 24 Gigabit PoE+ ports and 4 Combo SFP uplink ports. It features a 518W total PoE power budget, support for IEEE 802.3bt up to 90W per port, and 6kV surge protection on all PoE ports. Key features include a 250-meter extend mode, automatic ONVIF device detection, surveillance-focused management, and an alarm port.

Key specifications

• Ports: 24 x 10/100/1000 Mbps PoE+ RJ45, 4 x Combo 1000Base-T SFP
• PoE Budget: 518W total
• PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Max PoE Power per Port: 90W (Ports 1-8)
• Surge Protection: 6kV on all PoE ports
• Management: Smart managed, including a web-based surveillance interface, ONVIF support, and automatic configuration
• Surveillance Features:
• Surveillance VLAN
• Traffic optimization
• Auto-detect ONVIF devices

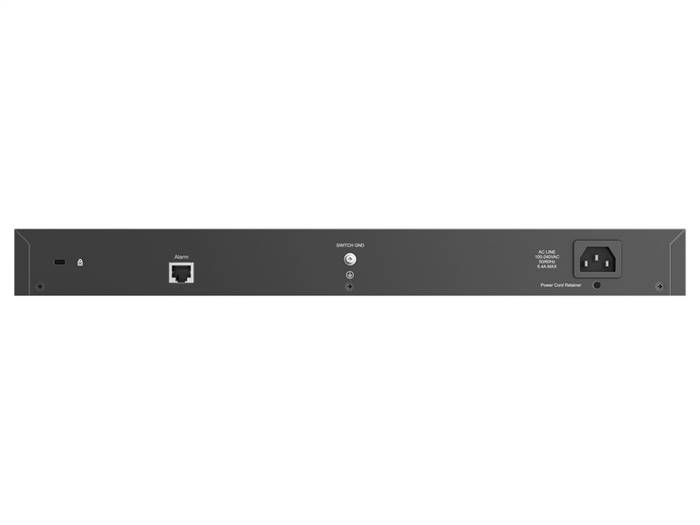

• Alarm port
• Extend Mode: Up to 250 meters on specific ports
• Physical: 19-inch rack-mountable
• Additional features: PD-Alive, built-in SNMP MIB

Compatible Transceivers

The D-Link DSS-200G-28MPP switch is compatible with SFP transceivers for its four combo SFP ports
