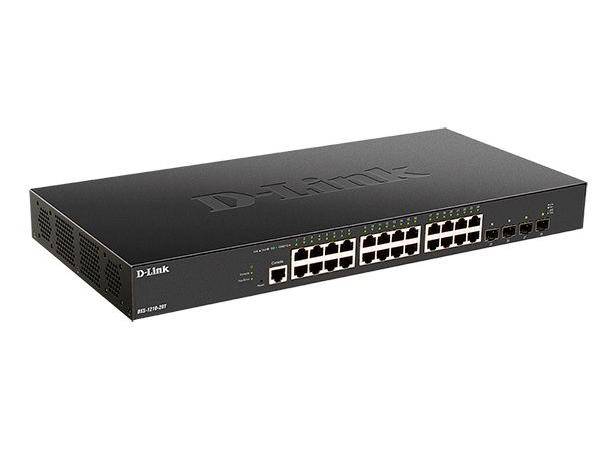

The D-Link DXS-1210-28T is a 28-port 10-Gigabit Ethernet smart-managed switch with 24 x 10GBASE-T RJ45 ports and 4 x 10/25G SFP28 uplink ports, offering a switching capacity of 680 Gbps and supporting Layer 2+ features like static routing, VLANs, and QoS, along with Layer 3 Lite capabilities for cost-effective network aggregation in SMBs and enterprises.

Key Specifications

• Ports:
• 24 x 10GBASE-T (RJ45) ports for copper cabling.
• 4 x 10/25G SFP28 (fiber/copper) uplink ports.
• 1 x RJ-45 console port.
• Performance:
• Switching Capacity: 680 Gbps.
• Forwarding Rate: Up to 148.8 Mpps (for specific models).
• Jumbo Frames: Up to 12,288 bytes.
• Layer 2 Features:
• VLANs: 802.1Q, Auto Voice/Surveillance VLAN.
• Link Aggregation: 802.3ad LACP (up to 8 groups, 8 ports/group).
• Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP.
• IGMP/MLD Snooping: For multicast traffic optimization.
• Port Mirroring: Supports 1:1 and Many:1 mirroring.
• Layer 3 Lite Features:
• Static Routing (IPv4/IPv6).
• IP Interfaces & ARP.
• Security:
• Access Control List (ACL).
• 802.1X port-based authentication.
• Management:
• Web-based GUI.
• Full Command-Line Interface (CLI) via Telnet and console port.
• D-Link Network Assistant utility.
• SNMP v1/v2c/v3, RMON.
• Key Benefits:
• Cost-effective 10GbE solution for server and cloud connectivity.
• Flexible cabling options with RJ45 and SFP28 ports.
• Reduced router load with inter-VLAN routing.
• Energy-saving features like Energy Efficiency Ethernet (EEE).

Compatible Transceivers

The D-Link DXS-1210-28T is compatible with a wide range of 10G SFP+ and 25G SFP28 transceivers for fiber connections.
