Cat5e Snagless / Molded Boot UTP Ethernet Network Patch Cable
Compufox EPC-CAT5E-UTP Cat5e Snagless UTP Ethernet Patch Cable with Molded Boot

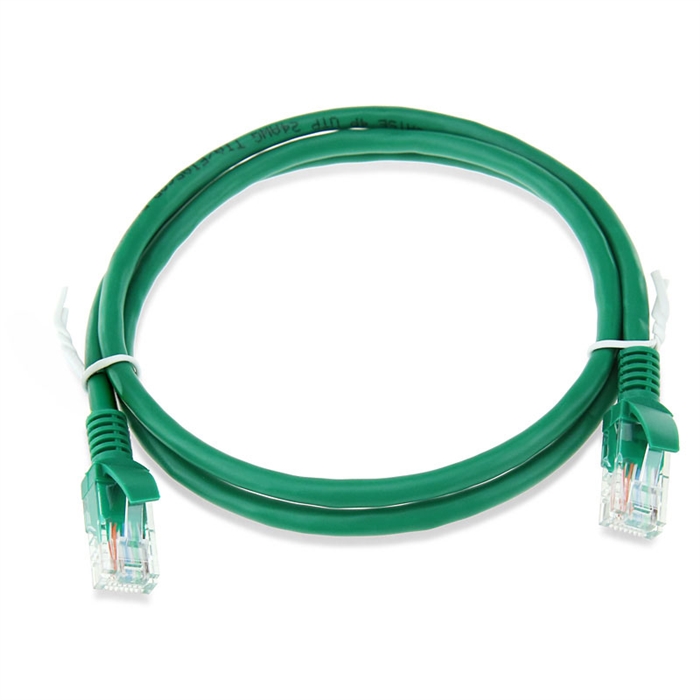

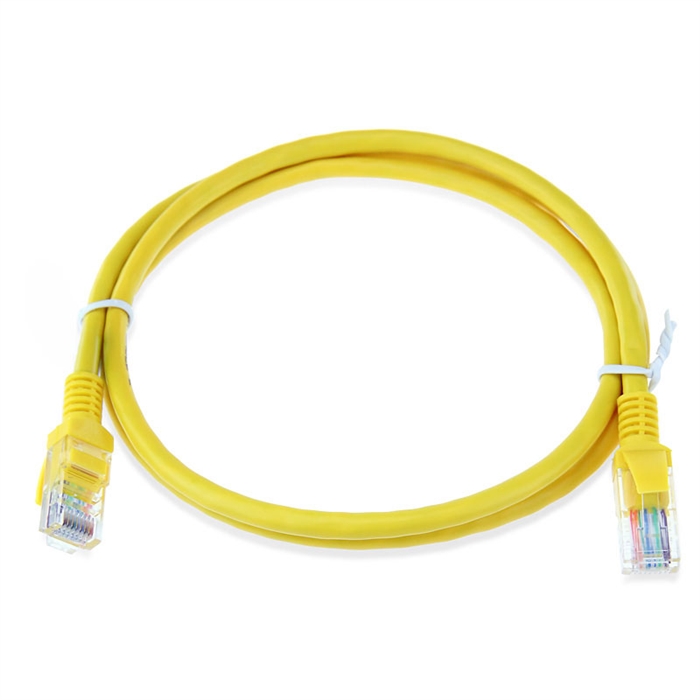

Alternative Views:
Our Price: $2.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually in 2 days


Product Code: EPC-CAT5E-UTP

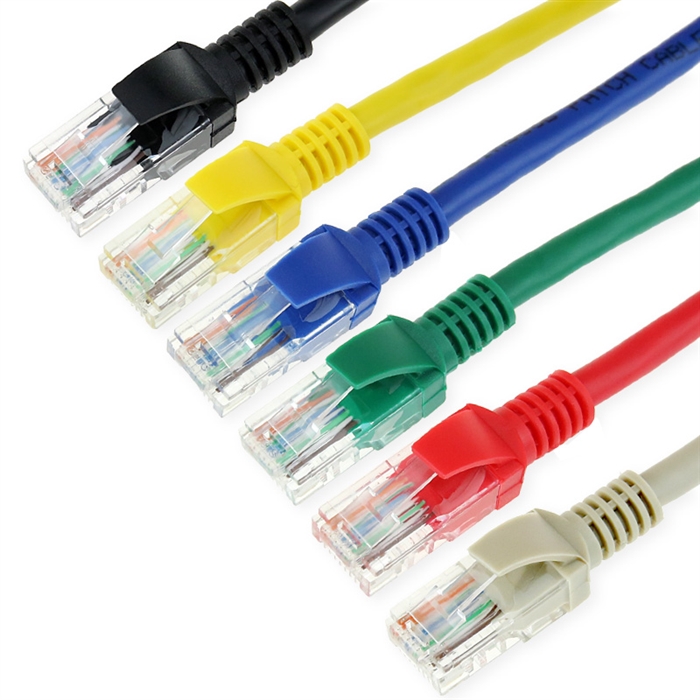

Color: 		Any Color - No request
Black
Blue
Green
Red
White
Yellow

Select Length*:

Qty:
Description

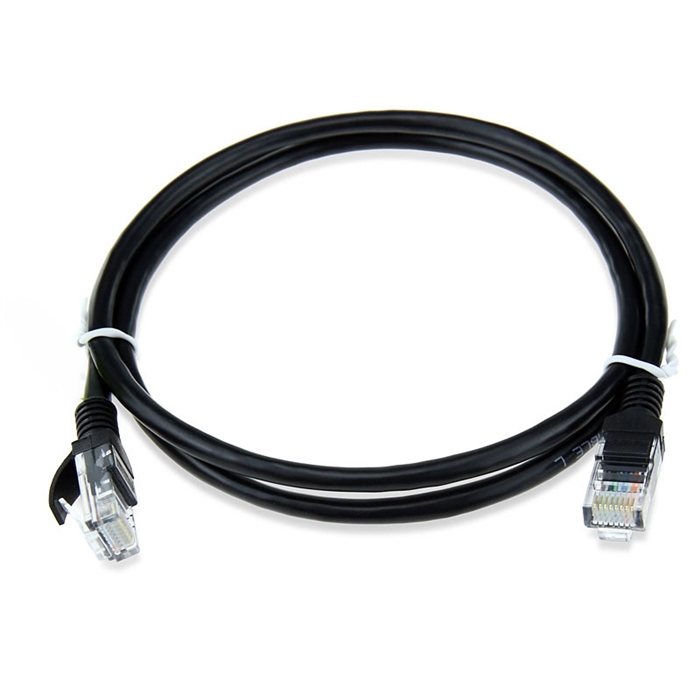

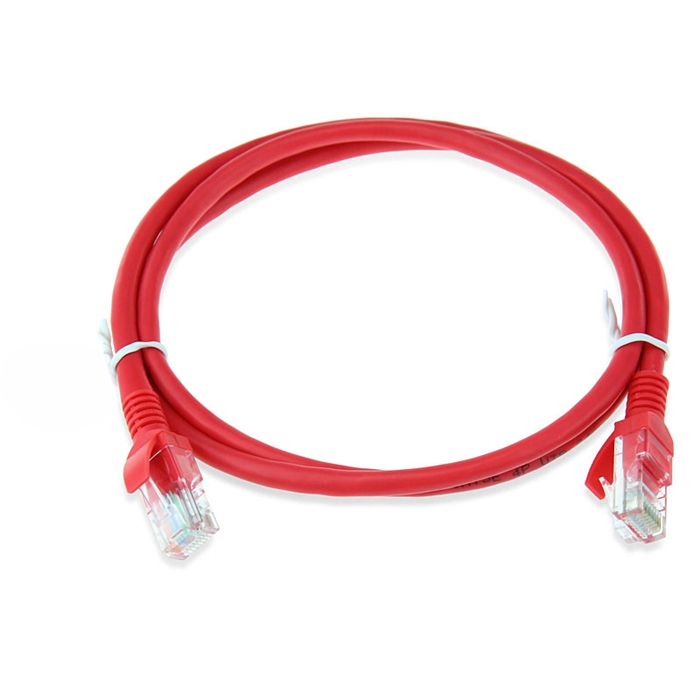

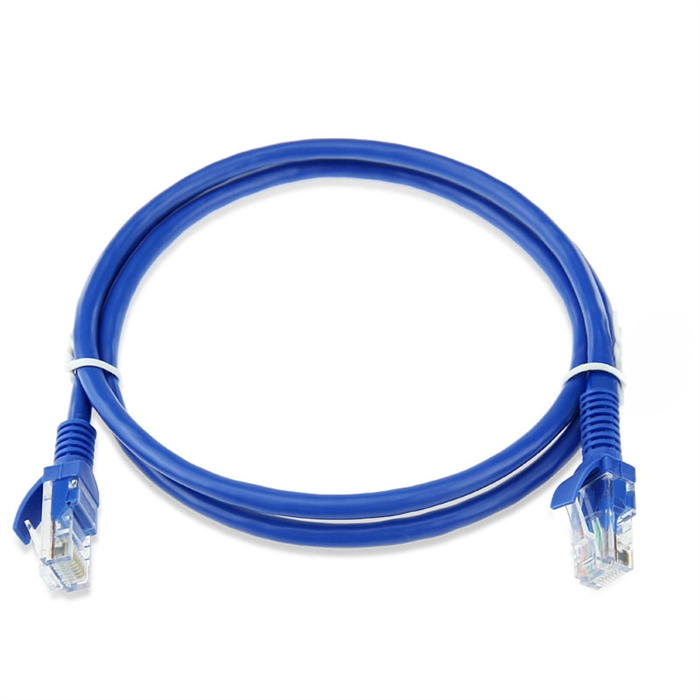

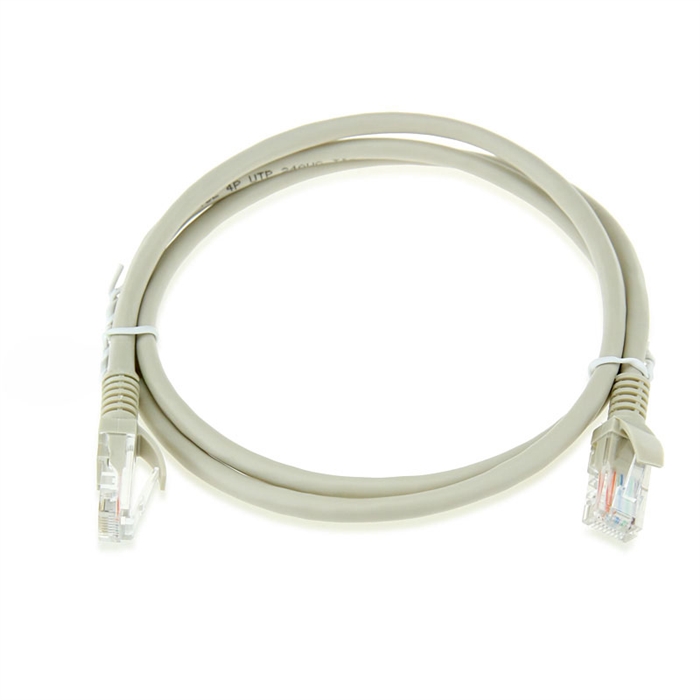

Cat5e Snagless / Molded Boot UTP Ethernet Network Patch Cable.

Compufox EPC-CAT5E-UTP is a high-performance Cat5e Snagless Unshielded (UTP) Ethernet Patch Cable designed for reliable, high-speed networking in both residential and enterprise environments. Supporting bandwidths of up to 350MHz and speeds up to 1Gbps (Gigabit Ethernet), this cable is the perfect solution for connecting PCs, servers, routers, and switches.

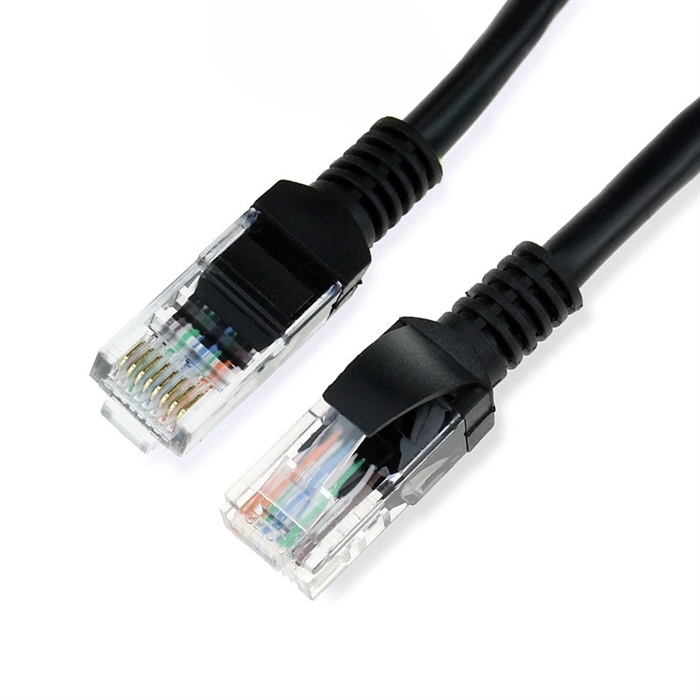

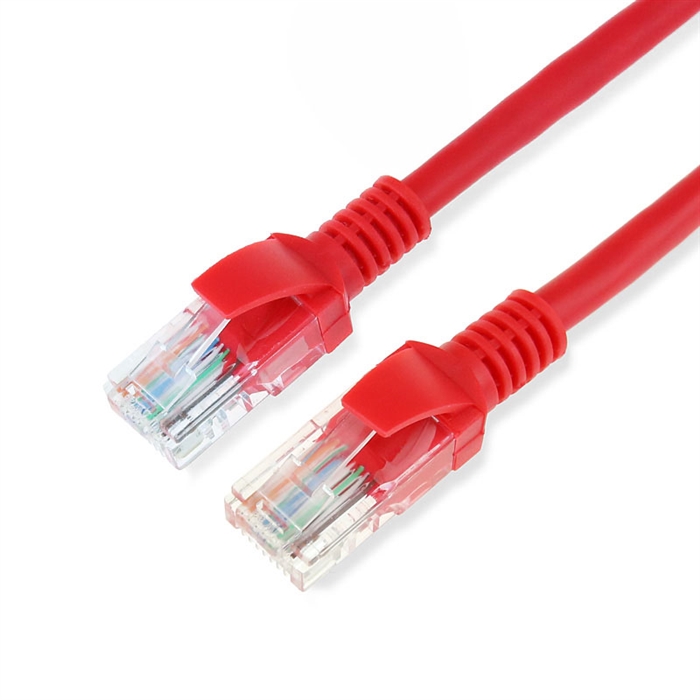

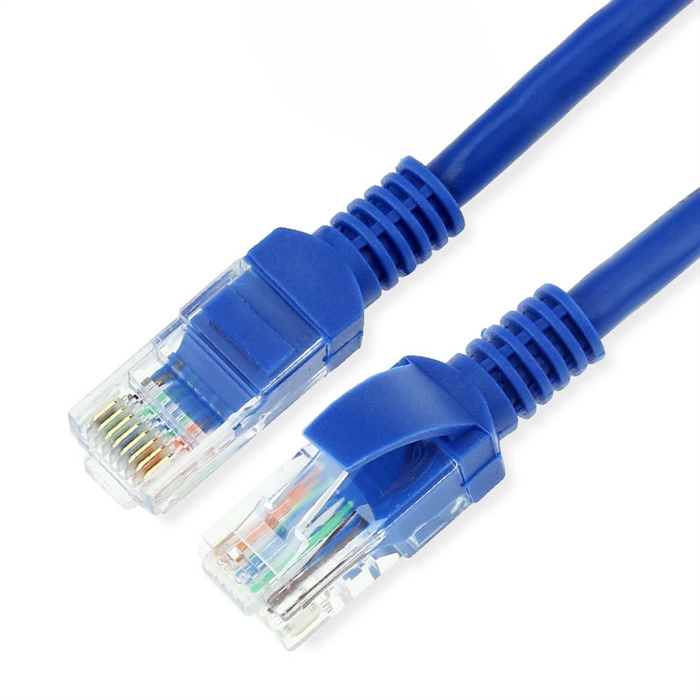

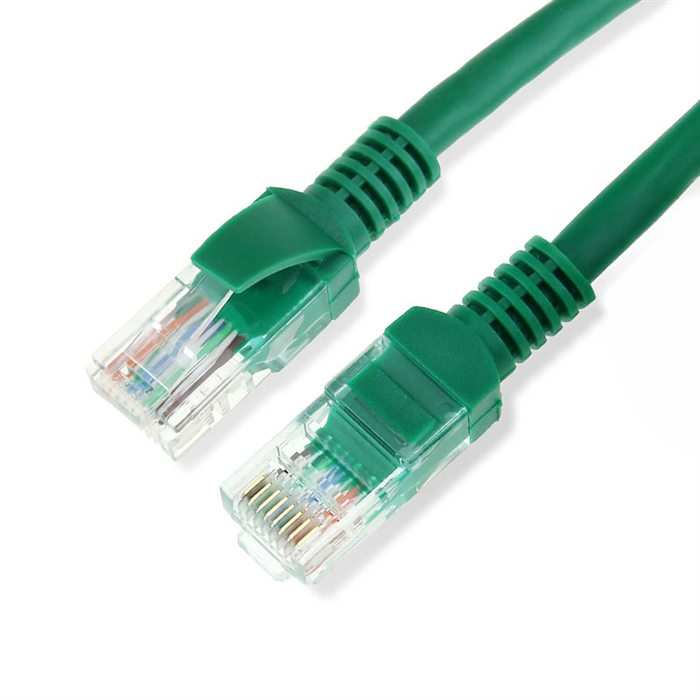

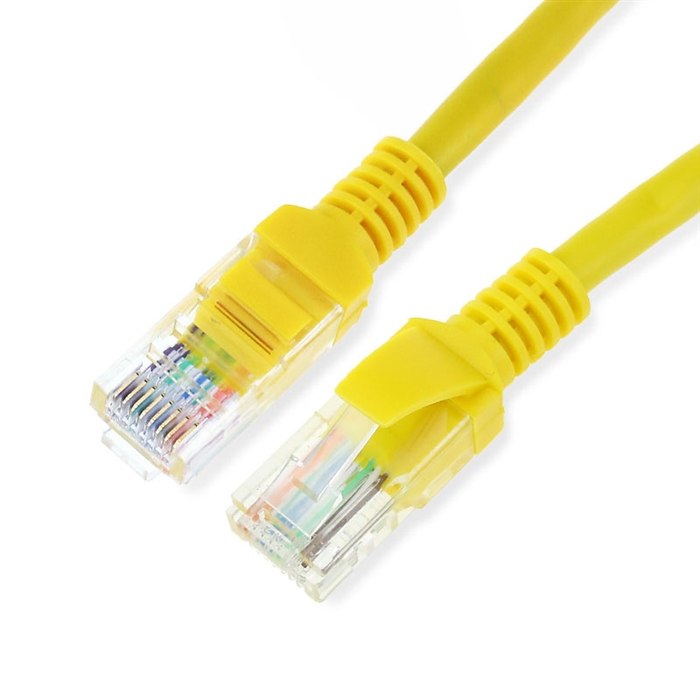

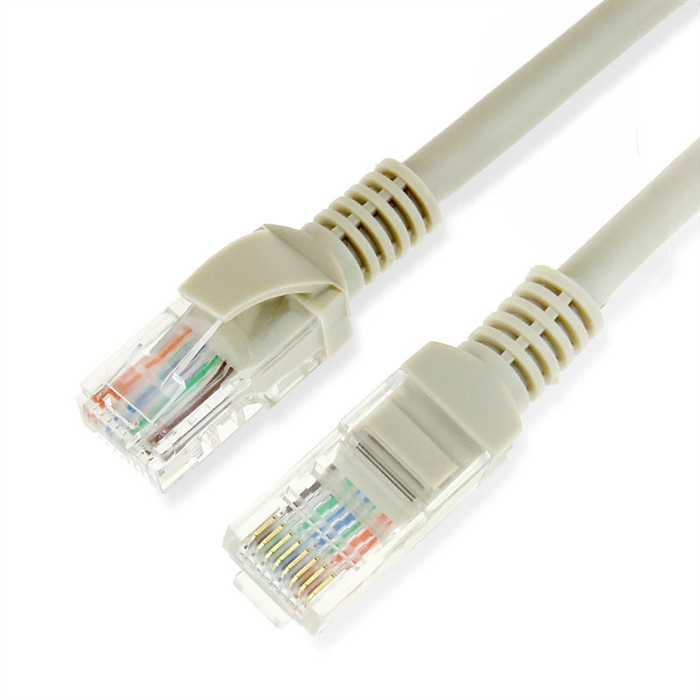

What sets the EPC-CAT5E-UTP apart is its industrial-grade construction. The molded, snagless boot design protects the RJ45 locking tab from breaking during installation or maintenance in high-density racks. Furthermore, the integrated strain relief ensures that the copper conductors remain securely seated within the connector, even under frequent movement or tight bends. Built with high-quality 24 AWG stranded bare copper, this cable minimizes Near-End Crosstalk (NEXT) and ensures maximum signal integrity for your critical data streams.

EPC-CAT5E-UTP Technical Highlights
Frequency Max Attenuation Min NEXT Return Loss
1.0 MHz 2.0 dB 65.3 dB 20.2 dB
31.25 MHz 11.7 dB 42.9 dB 23.6 dB
100.0 MHz 22.0 dB 35.3 dB 20.1 dB

Construction: 24 AWG Solid Bare Copper, Snagless Molded Boot, 5.2mm Outer Diameter.

Compliance: TIA/EIA 568B, ISO/IEC 11801, 1000Base-T Gigabit rated.
