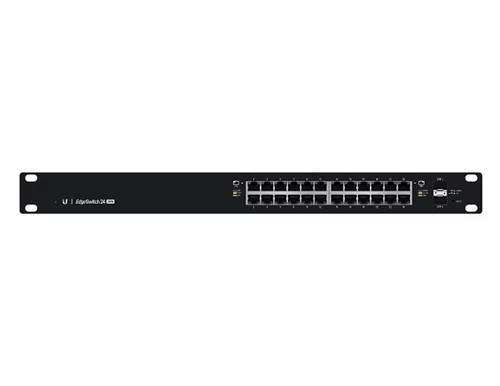

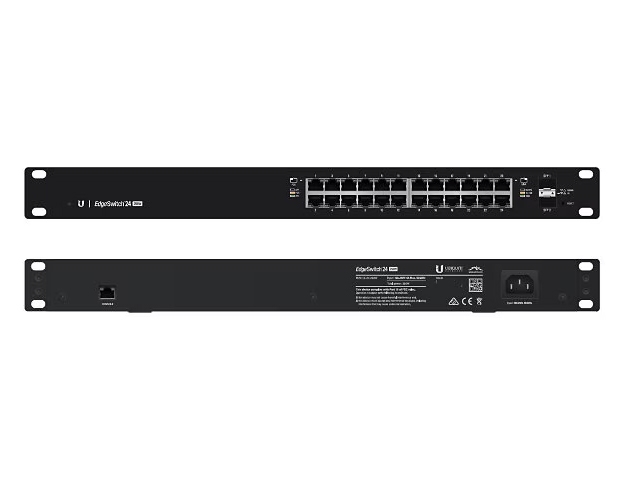

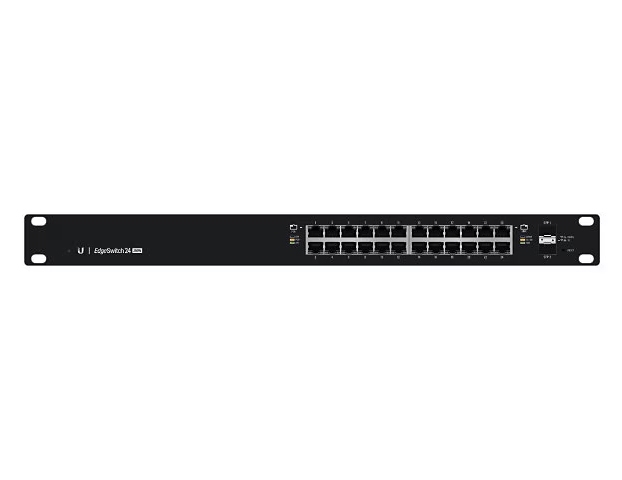

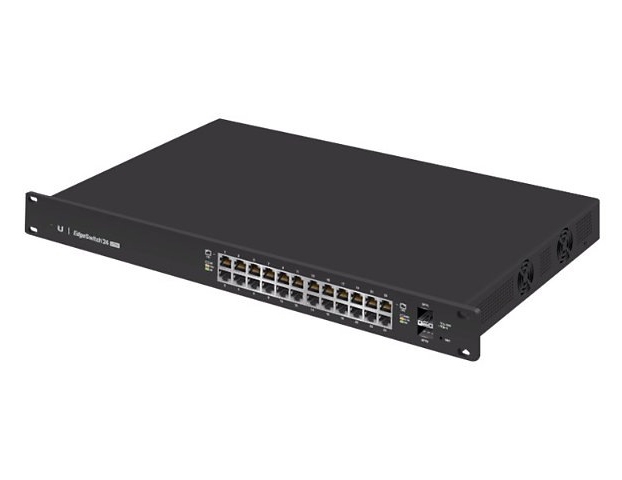

The Ubiquiti ES-24-250W is a 24-port managed Gigabit switch with 2 SFP uplink ports, offering a 52 Gbps switching capacity and 250W total PoE budget supporting both IEEE 802.3at/af (PoE+) and 24V passive PoE. It features 24 Gigabit Ethernet RJ45 ports, two 1 Gigabit SFP ports, a serial management port, and a 1U rackmountable design.

Key Specifications

• Network Ports: 24 x 1 Gigabit Ethernet RJ45 ports
• Uplink Ports: 2 x 1 Gigabit Ethernet SFP ports
• Management Ports: 1 x RJ45 Serial Port, Ethernet In/Out Band
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• PoE Budget: 250W
• PoE Support: IEEE 802.3at/af (PoE+) and 24V Passive PoE
• MAC Address Table Size: 16,384
• Rackmount: Yes, 1U high
• Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
• Weight: 10 lb / 5 kg
