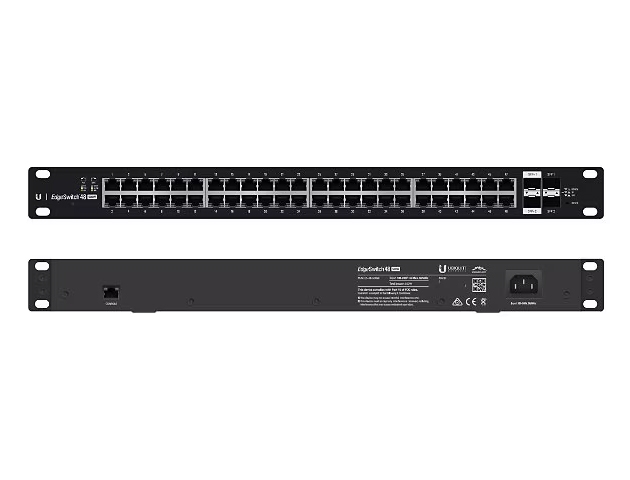

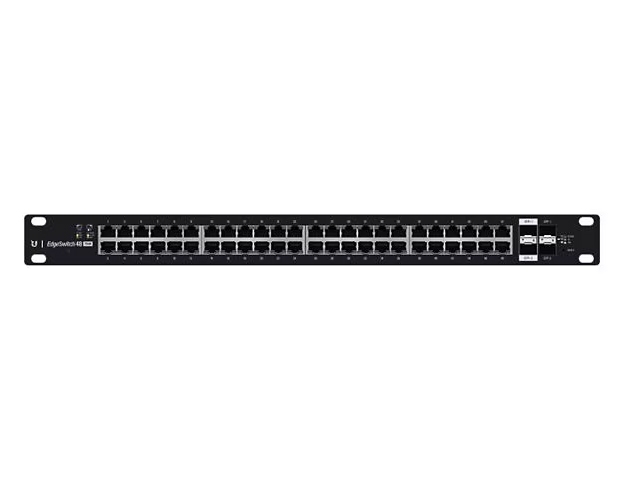

The Ubiquiti ES-48-500W EdgeSwitch 48 features 48 Gigabit Ethernet ports, including PoE+, 2 SFP+ (10Gb/s) uplink ports, and 2 SFP (1Gb/s) ports, along with a 500W power budget. It offers 140 Gbps of switching capacity, 70 Gbps of non-blocking throughput, and supports IEEE 802.3at/af and 24V Passive PoE. The switch is fully managed, supports Layer 3 routing and VLANs, and can be managed via a web GUI or CLI.

Key Specifications

• Network Ports:
  • 48x 1 Gb/s Gigabit Ethernet ports (with auto-sensing PoE)
  • 2x 1/10 Gb/s SFP+ fiber uplink ports
  • 2x 1 Gb/s SFP fiber ports

• Power & PoE:
  • 500W total power budget
  • Supports POE+ IEEE 802.3at/af
  • Supports 24V Passive PoE

• Performance:
  • Switching Capacity: 140 Gbps
  • Non-Blocking Throughput: 70 Gbps
  • Forwarding Rate: 104.16 Mpps

• Management:
  • Fully managed Gigabit switch
  • Managed via web GUI or Telnet/SSH CLI
  • Supports Layer 3 routing and VLANs
  • 1x Serial Console Port for management

• Form Factor:

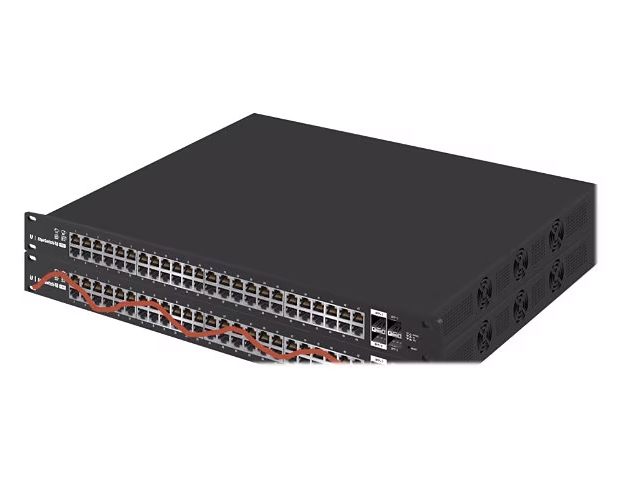

  • Rack-mountable 1U form factor
