F5-UPG-QSFP28-LR4 | F5 Networks Compatible QSFP28 Transceiver

Home > F5 Networks > QSFP28 (100G) >

Alternative Views:

Our Price: $365.00

Warranty: 1 Year Warranty

Product Code: F5-UPG-QSFP28-LR4-CO

Compatibility:		Please input the model of the switch or router on which you will install this transceiver
Labeling Options:		Compufox Logo Generic Label - No Logo (3 to 4 days to ship) Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:

Description

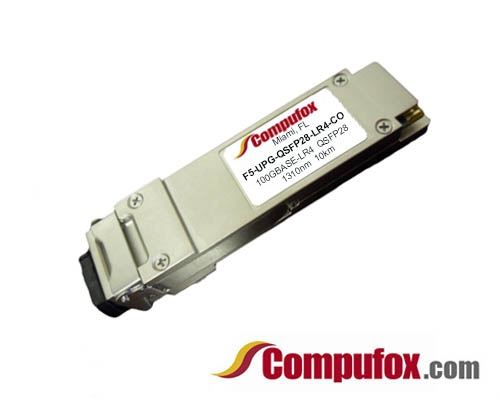

F5 Networks F5-UPG-QSFP28-LR4 Compatible 100GBase-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).

Specifications:

Form Factor	QSFP28	Max. Data Rate	103.125Gbps (4x 25.78Gbps)
Wavelength	1310nm	Max. Cable Distance	10km
Connector	Duplex LC/UPC	Media	SMF
Transmitter Type	4 x LAN WDM EML	Receiver Type	PIN
TX Power	-4.3~4.5dBm	Minimum Receiver Power	-10.6dBm
Power Budget	6.3dB	Receiver Overload	4.5dBm
Max. Power Consumption	3.5W	Extinction Ratio	>4dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Modulation (Electrical)	4x 25G-NRZ	Modulation (Optical)	4x 25G-NRZ
CDR (Clock and Data Recovery)	TX & RX Built-in CDR	Packaging Technology	BOX Packaging
MTBF	8,340,283 Hours	Bit Error Ratio (BER)	1E-12
Protocols	QSFP28 MSA, SFF-8636, IEEE 802.3-2012, PSM4 MSA, CAUI-4
