F641C

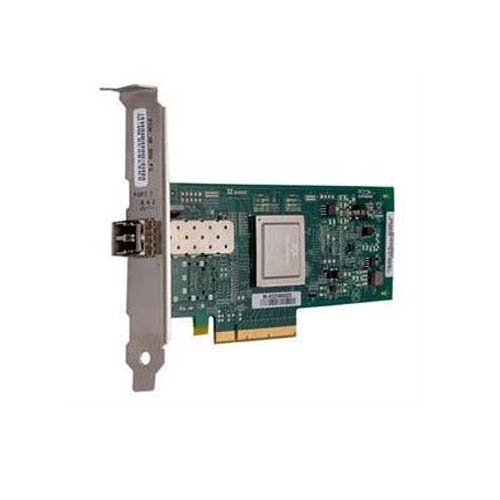

Dell 8G HBA, SC, QLE-2560 (Ridley)/ RTS Q208 Release/ Post RTS For Dell PowerEdge R905

Architecture
Single Port 8Gb Fibre Channel
200,000 initiator and target IOPs Per Port
Offers up to 1600 MBps throughput at full duplex/port
256 Queue Pairs for enhanced Virtualization performance
SAN-Level Authentication (FC-SP), Fabic Level Isolation (NPIV) and End-to-End Data Integrity (T10)
Dynamic Power management through StartPower™ Link Training
Unified HBA Driver and Firmware Architecture

Fibre Channel Specifications
8/4/2 Gb auto-negotiation
Class of service: 2 and 3
Topology: FC-AL, FCAL2, point to point, switched fabric
Protocols: FCP-3-SCSI, FC-Tape (FCP-2)
HBA Distance Support: with Multi-Mode optics (with various cable types) at 8Gb rate - OM1-21m, OM2=50m, OM3-150m

Form Factor
Low-profile PCI Express card (6.6 in x 2.54 in)

Management
Management Tools: SANsurfer® FC HBA Manager SANsurfer FC HBA CLI
Device Utilities: Utilities for flashing boot code Linux scripting tools
Boot support: BIOS, Fcode, UEFI, EFI
APIs: SNIA HBA API V2, SMI-S, FDMI

Power
Power consumption: 5.5 Watts (typical)
Operating temperature: 0° to 55°C (32° to 131°F)
Airflow required: None
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 10% to 90% (operating, non-condensing) and 5% to 93% (non-operating, non-condensing)

Software Environments
Windows™
Linux Red Hat® AS 4.7, 5.2
Novell® SLES 10 SP2
Vmware® ESX Server 3.5 and 3i (Coming Soon)

Hardware Environments
IA32 (x86), IA64, Intel® 64
AMD™ Opteron64
Sun™ SPARC®

Regulatory
US/Canada: FCC Part 15, Subpart B, Class A, ICES-003, Class A
Europe: EN55022, Class A
New Zealand/Australia: AS/NZS 3548 Class A
Japan: VCCI V-3/2004.4, Class A
Korea: MIC
Taiwan: BSMI (CNS 13438)
US/Canada: Safety Approvals
UL, cUL - UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J
Europe:Safety Approvals
73/23/ECC Low Voltage Directive
TUV: EN60950-1:2001, EN60825-1:1994+A1+A2, EN60825- 2:1994+A1
RoHS 6 Compliant for environmental requirements
