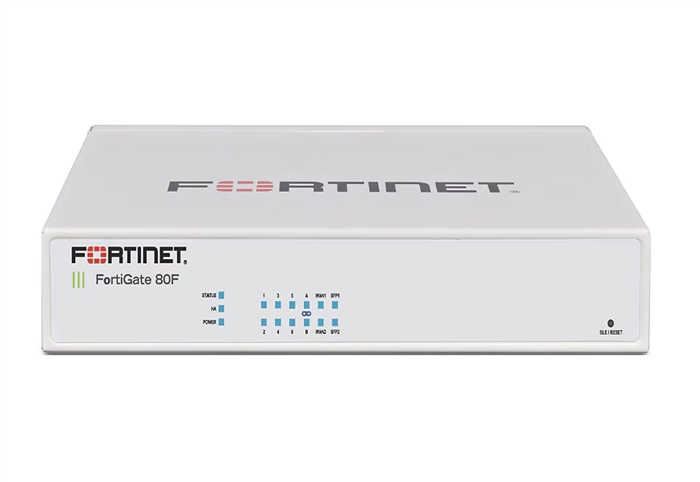

The Fortinet FG-80F-POE is a desktop firewall providing up to 10 Gbps firewall throughput, 6 x GE PoE+ ports, and 2 x GE FortiLink PoE+ ports, featuring 2 x WAN GE RJ45 ports and 2 x GE RJ45/SFP shared media ports. It supports up to 96 FortiAP devices (48 in tunnel mode), 500 FortiClient devices, and offers various security features like IPS, SSL Inspection, and VPN, powered by a 28nm chip and multi-core processor for efficient performance.

Key Specifications

• Ports:
  • 6 x GE PoE+ Ports
  • 2 x GE FortiLink PoE+ Ports
  • 2 x WAN GE RJ45 Ports
  • 2 x GE RJ45/SFP Shared Media Ports
  • 1 x Console RJ45 Port
  • 1 x USB 3.0 Port

• Performance:
  • Firewall Throughput: Up to 10 Gbps
  • IPS Throughput: 1.4 Gbps
  • Threat Protection Throughput: 900 Mbps
  • NGFW Throughput: 1 Gbps
  • SSL Inspection Throughput: 715 Mbps
  • VPN Throughput (SSL): 950 Mbps
  • Max Concurrent Connections (TCP): 1,500,000

• Capacity:
  • Max FortiAPs Supported: 96
  • Max Registered FortiClient Devices: 500
  • Max Concurrent SSL VPN Users: 200
  • Max Concurrent TCP Sessions: 1,500,000

• Dimensions & Power:
  • Height x Width x Depth: 2.4 x 8.5 x 7 inches
  • Weight: 3.1 lbs (1.4 kg)
  • Form Factor: Desktop Appliance

Key Features

• PoE+ & FortiLink: Integrated Power over Ethernet (PoE+) for powering connected devices and dedicated FortiLink ports for seamless integration with FortiSwitch and FortiAP.
• High-Performance ASIC: Built on a patented ASIC for optimized performance and efficiency.
• SD-WAN: Delivers consistent performance for business applications with dynamic path steering.
• Security Fabric: Enables end-to-end security visibility and consistent policy enforcement across the network.
• Ultra-Low Latency: Delivers fast response times, even with security services enabled.
• Cloud Management: Simplified deployment and management through FortiGate Cloud.
