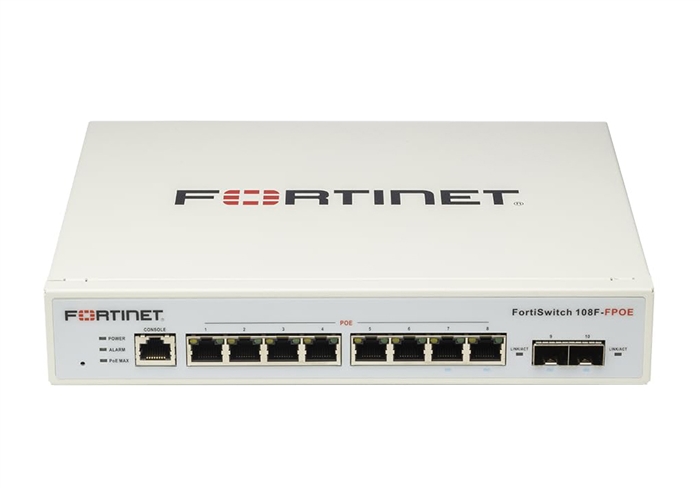

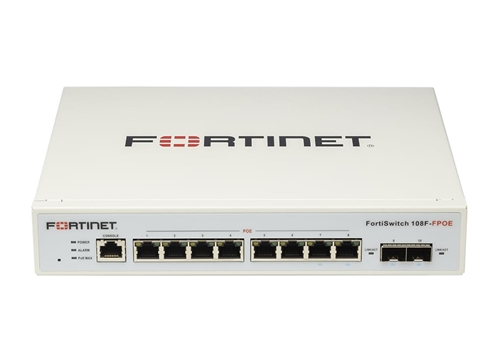

The Fortinet FS-108F-FPOE is an 8-port, managed, Layer 2 Ethernet switch that features
8 x 10/100/1000Base-T (PoE+) RJ45 ports, 2 x Gigabit SFP ports for uplink, a 130W PoE power budget, and supports FortiLink integration for centralized management. It has a desktop or rack-mountable form factor and supports key networking standards like IEEE 802.1Q for VLANs and IEEE 802.3af/at for PoE/PoE+.
Key Specifications
- Ports: 8 x 10/100/1000 (Gigabit) RJ45 PoE+ ports, 2 x 1000Base-X SFP ports
- PoE: 130W total power budget, supports IEEE 802.3af/at (PoE/PoE+) standards
- Switching Capacity: 20 Gbps
- Management: Managed, supported by FortiLink for integration with a FortiGate firewall for single-pane-of-glass management, or can be used in standalone mode
- Form Factor: Desktop or rack-mountable
- Supported Standards: IEEE 802.1D, 802.1Q, 802.1p, 802.1x, 802.1w, 802.1s, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az
Compatible Transceivers:
The Fortinet FS-108F-FPOE supports standard
SFP (Small Form-Factor Pluggable) and SFP+ transceivers, including both copper and fiber types, for its two GE SFP slots.
- Two GE SFP Slots: The FS-108F-FPOE model has two SFP slots for connecting to other network devices.
- Copper or Fiber: These SFP slots support both copper and fiber-based transceivers, allowing for flexible network connectivity.
|
|
|
