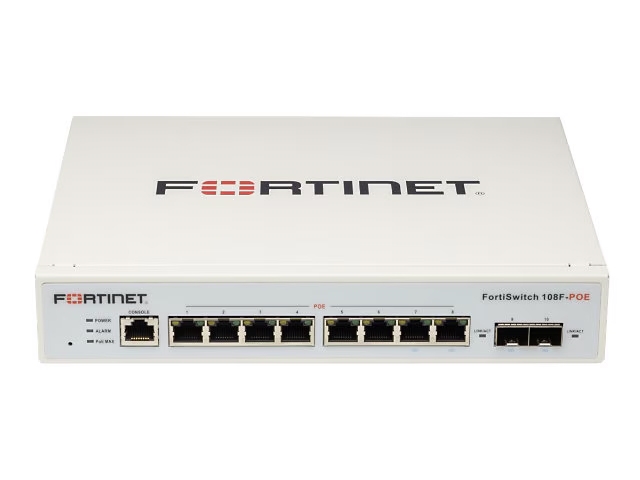

The Fortinet FS-108F-POE is a fanless, managed, L2+ switch with 8 Gigabit PoE+ Ethernet ports and 2 Gigabit SFP uplink ports, a 65W PoE budget, and a 20 Gbps switching capacity. It supports Layer 2 switching, has a desktop or 1U rack-mountable form factor, and features FortiLink integration for central management via a FortiGate.

Key Specifications

• Ports: 8 x 10/100/1000 (PoE+) RJ45 ports, 2 x Gigabit SFP expansion slots.
• PoE Budget: 65W total PoE power budget.
• Switching Capacity: 20 Gbps.
• Packet Forwarding: 30 Mpps (Million packets per second).
• Management: Managed L2+ switch with FortiLink integration.
• Form Factor: Desktop, 1U rack-mountable.
• Dimensions: Approximately 1.73" x 8.23" x 9.85" (44 x 209 x 250 mm).
• Weight: Approximately 3.75 lbs (1.70 kg).
• Memory: 256 MB RAM, 32 MB Flash.

Features

• PoE+: Provides power to connected devices, such as wireless access points or IP phones.
• SFP Slots: Allow for fiber optic uplink connectivity, increasing flexibility.
• FortiLink: Integrates with FortiGate for unified management from a single pane of glass.
• Layer 2 Switching: Supports essential networking functions like VLANs and Spanning Tree protocols.
• Fanless Design: Operates quietly and is suitable for desktop environments.

Compatible Transceivers:

The Fortinet FortiSwitch 108F-POE (FS-108F-POE) is compatible with standard Gigabit SFP transceivers for its two Gigabit SFP ports.
