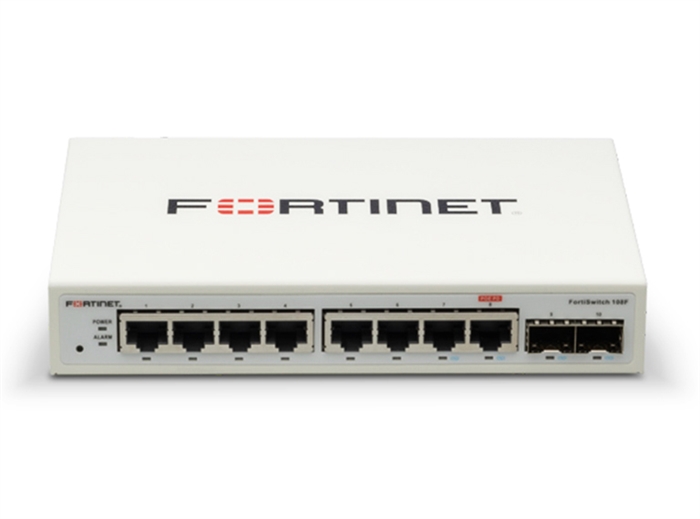

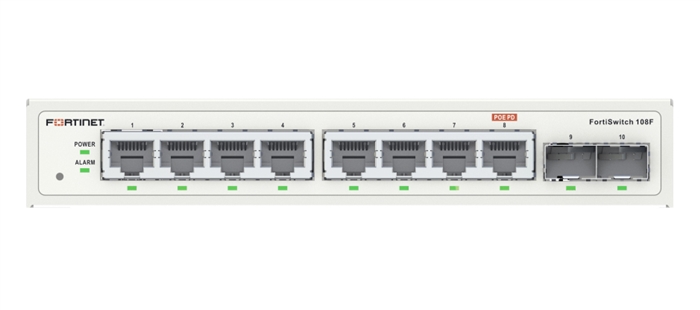

The Fortinet FS-108F is a managed, 8-port Gigabit Ethernet switch designed for SD-Branch deployments, offering a combination of RJ-45 and SFP ports for versatility. It features 7 x 1GbE RJ-45 ports, 2 x 1GbE SFP ports for uplinks, and an additional 1 x 1GbE RJ-45 port with PoE input. The switch supports Layer 2 functionality and can be centrally managed from a FortiGate interface using FortiLink, as well as through its onboard GUI, command line, or API for standalone mode.

Key Features:

• Port Configuration:
  • 7 x 10/100/1000Base-T RJ-45 ports
  • 1 x 10/100/1000Base-T RJ-45 PoE Input port
  • 2 x 1000Base-X SFP ports

• Management:
  • Managed by Fortinet FortiGate via FortiLink integration
  • Can be managed in standalone mode via onboard GUI, API, or command line

• Memory & Storage:
  • 32 MB flash memory
  • 256 MB RAM

• Form Factor:
  • Desktop-sized with a side-to-back airflow

• Networking Features:
  • Layer 2 switch
  • Supports standard network protocols including IEEE 802.1Q for VLANs
  • Ideal for converged network environments supporting voice, data, and wireless traffic

• Power:
  • Can receive power via a 12V/1A DC power adapter or a PoE input

Compatible Transceivers:

The Fortinet FS-108F FortiSwitch uses Gigabit SFP transceivers for its two SFP ports.
