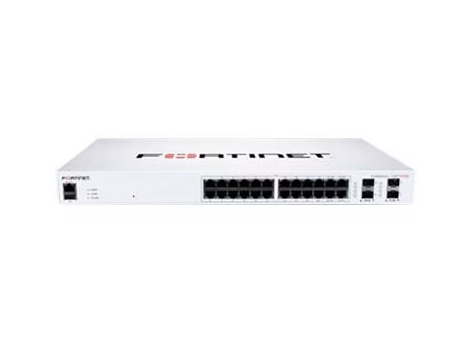

The Fortinet FS-124F-FPOE-TAA is a managed Layer 2 FortiSwitch with 24 PoE+ Gigabit Ethernet ports and 4 x 10GbE SFP+ uplinks, featuring a total PoE power budget of up to 370W and a switching capacity of 128 Gbps. Key features include FortiLink integration with FortiGate for unified management, support for VLANs.

Key Specifications

• Ports:
  • 24 x 10/100/1000Base-T PoE+ RJ-45 ports
  • 4 x 10 Gigabit SFP+ uplink ports

• Power over Ethernet (PoE):
  • 24 x PoE+ ports (802.3af/at)
  • 370W PoE power budget

• Performance:
  • Switching Capacity: 128 Gbps
  • Packets Per Second (PPS): 190 Mpps
  • Network Latency: < 1 µs

• Form Factor:
  • 1U Rack-Mountable
  • Side to back airflow design

• Management:
  • Layer 2 Managed Switch
  • FortiLink integration for management through the FortiGate interface
  • Support for CLI, GUI, and SNMP

• Certifications:
  • RoHS 2 environmentally certified
  • FCC, UL, and other compliance standards
