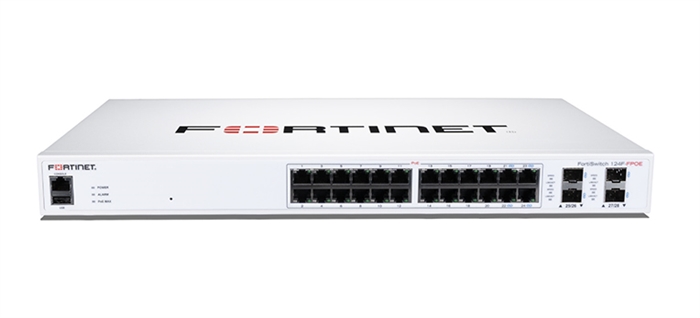

The Fortinet FS-124F-FPOE is a 24-port managed Layer 2 switch with 24 Gigabit PoE+ ports and 4 x 10 Gigabit SFP+ uplink ports. It offers a 370W PoE budget to power connected devices and has a 128 Gbps switching capacity. The switch supports 1U rack mounting, has a side-to-back airflow, and can be managed through a FortiGate via FortiLink or independently using a CLI, GUI, or APIs.

Key Specifications:

• Ports:
  • 24 x 10/100/1000 (PoE+) ports
  • 4 x 10 Gigabit SFP+ uplink ports
  • 1 x RJ-45 console port

• PoE:
  • 370W PoE budget
  • PoE+ (802.3af/at) support

• Performance:
  • Switching Capacity (Duplex): 128 Gbps
  • Packets per Second (Duplex): 190 Mpps
  • Network Latency: < 1µs

• MAC Address Storage:32K entries
• Form Factor:1U Rack-mountable
• Management:
  • Can be managed via FortiLink with a FortiGate
  • Supports CLI, GUI, and API management

Compatible Transceivers:

The FS-124F-FPOE switch is compatible with standard SFP+ and SFP modules, including Fortinet's own FN-TRAN series, and supports various media types such as multi-mode fiber (MMF), single-mode fiber (SMF), and copper (RJ-45) for 1G and 10G connections.
