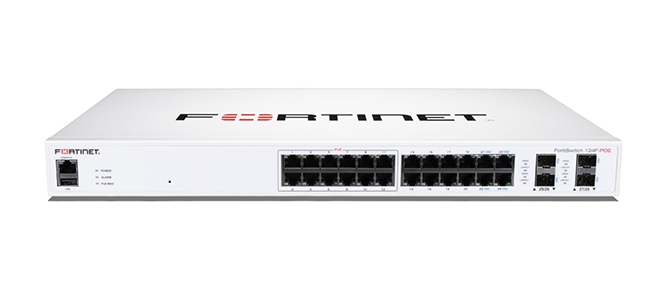

The Fortinet FS-124F-POE is a managed, 24-port Gigabit Ethernet switch with 4 SFP+ uplink ports, supporting PoE+, and a 185W PoE budget. It offers a 128 Gbps switching capacity, 190 Mpps packet forwarding rate, and a latency of under 1 µs. The switch integrates with the Fortinet Security Fabric via FortiLink, features <*802.1x authentication, and provides L2+ security features like Storm Control and DHCP snooping.

Key Specifications

• Device Type: Managed L2+ Switch
• Ports: 24 x 10/100/1000 (Gigabit Ethernet) with PoE+ support, 4 x 10 Gigabit SFP+
• PoE Budget: 185W
• Performance:
  • Switching Capacity: 128 Gbps
  • Packets per Second: 190 Mpps
  • Latency: < 1 µs

• MAC Address Table: 32K entries
• Jumbo Frame Support: Yes
• Form Factor: 1U Rack Mountable

Key Features

• Fortinet Security Fabric Integration: Integrates with FortiGate via FortiLink for unified management.
• Layer 2+ Features: Supports advanced L2 features including VLANs, LACP, and QoS.
• Security: Includes 802.1x authentication, Storm Control, DHCP Snooping, and DAI.
• Remote Management: Supports HTTP, HTTPS, SNMP, SSH, and Telnet.
• Power: AC power with a 50/60 Hz frequency.
• Airflow: Side-to-back airflow design for rack-mounted deployment.

Compatible Transceivers:

The FS-124F-POE supports various transceiver types including fiber (SFP+ SR, LR, DWDM) and copper (SFP+ GC).
