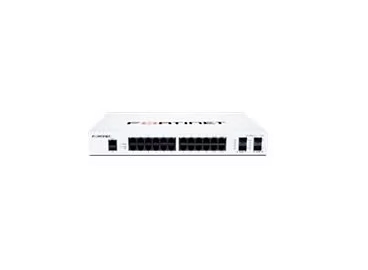

The Fortinet FS-124F-USG is a 24-port managed Gigabit Ethernet switch with 4 SFP+ ports for 10 Gigabit uplinks, offering a 128 Gbps switching capacity and low <1µs latency. It features side-to-back airflow, supports VLANs, Link Aggregation, and is managed via the FortiGate Security Fabric. The ""USG"" in the model number likely indicates it is the standard version, not the PoE+ version (FPOE).

Key Specifications

• Ports: 24 x 10/100/1000Base-T RJ45 ports, 4 x 10 Gigabit SFP+ ports
• Switching Capacity: 128 Gbps
• Packets Per Second: 190 Mpps
• Latency: < 1 µs
• MAC Address Storage: 32 K entries
• Flash Memory: 64 MB
• RAM: 512 MB
• Supported Standards: IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3x, etc.
• VLANs Supported: 4000
• Link Aggregation: 8 groups, 128 total groups supported

Management & Features

• Management: Integrated into the Fortinet Security Fabric via FortiLink
• Deployment: Standalone or integrated
• Management Interfaces: CLI, DHCP, HTTP, HTTPS, RADIUS, RMON, SNMP, SSH, Telnet, TFTP
• Features: Zero-touch deployment, on-premise and cloud-based management, Access Control, Spanning Tree Protocol (STP)

Physical & Power

• Airflow: Side-to-back airflow
• Power: Internal power supply
• Form Factor: Rack-mountable
