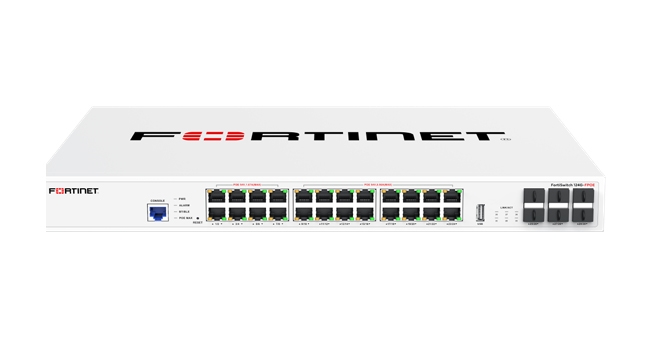

The Fortinet FS-124G-FPOE is a managed, Layer 2, 24-port Ethernet switch featuring 24 x 2.5 Gigabit Ethernet PoE RJ-45 ports and 6 x 1/10 Gigabit Ethernet SFP+ expansion slots. It has a 780W PoE budget, supporting both PoE+ and PoE++ standards, with a switching capacity of 240 Gbps. The switch is designed for rack-mounting, offers integrated and standalone management, and provides security features like DHCP snooping.

Key Specifications

• Ports: 24 x 2.5 Gigabit Ethernet PoE RJ-45 ports, 6 x 1/10 Gigabit Ethernet SFP+ uplink ports.
• Power Over Ethernet (PoE): 780W PoE budget with support for both PoE+ and PoE++ standards.
• Performance:
  • Switching Capacity: 240 Gbps.
  • Packets Per Second: 355 Mpps.

• Form Factor: Rack-mountable, 1U height.
• Management: Managed (Layer 2), supports integrated management with FortiGate and standalone deployment options.
• Networking Features:
  • DHCP Snooping and Dynamic ARP Inspection.
  • Supports various IEEE standards.

• Memory: 256 MB Flash memory, 1 GB RAM.
• Dimensions & Weight: Approximately 1.7" H x 17.3" W x 12.2" D, ~10.71 lbs.

Compatible Transceivers:

The FS-124G-FPOE has 10 Gigabit SFP+ slots and supports compatible Fortinet transceivers, including those for 1GbE and 10GbE fiber and copper, such as SFP and SFP+ transceivers.
