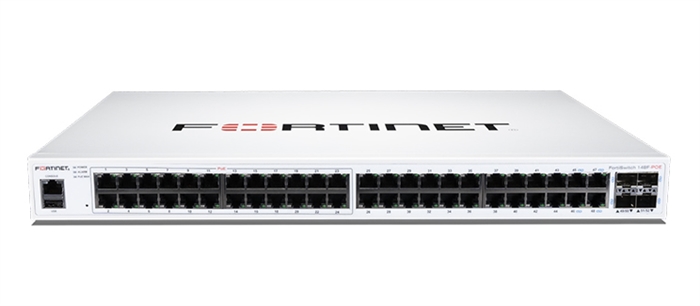

The Fortinet FS-148F-POE is a 1U rack-mountable, managed, Layer 2 switch offering 48 Gigabit Ethernet PoE+ ports with a 740W PoE budget, plus four 10 Gigabit SFP+ ports for high-speed uplinks. It features centralized management via FortiLink, 512MB DDR3 RAM, 64MB flash memory, and a switching capacity of 176 Gbps.

Key Features

• Ports: 48 x 10/100/1000Base-T (PoE+) ports and 4 x 10 Gigabit SFP+ expansion slots.
• PoE Budget: 740 Watts.
• Management: Managed through FortiLink, enabling centralized integration with the Fortinet Security Fabric.
• Form Factor: 1U rack-mountable.
• Performance:
  • Switching Capacity: 176 Gbps.
  • Packet Forwarding Rate: 260 Mpps.
  • Latency: <1 µs.

• Memory: 512MB DDR3 RAM and 64MB flash memory.
• Console Port: One RJ-45 serial console port for management.
