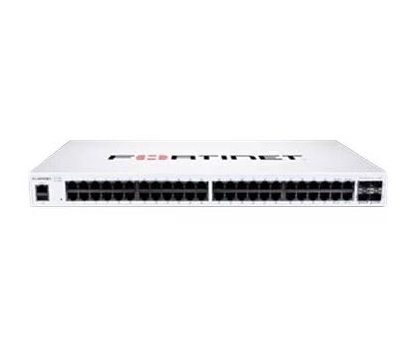

The FS-148F-USG is a Fortinet FortiSwitch 148F, a managed Layer 2+ switch with 48 Gigabit Ethernet RJ45 ports and 4 10-Gigabit SFP+ ports, designed for rack-mounting and featuring integrated management via the Fortinet Security Fabric. It boasts a switching capacity of 176 Gbps, a latency of less than 1 µs, and supports various protocols for network management.

Key Specifications

• Ports:
  • 48 x 10/100/1000 Mbps RJ45 ports
  • 4 x 10 Gigabit SFP+ (uplink) ports

• Form Factor: 1RU rack-mount
• Performance:
  • Switching Capacity: 176 Gbps
  • Packets per second: 260 Mpps
  • Latency: < 1 µs

• Management:
  • Managed via the Fortinet Security Fabric
  • CLI, SSH, SNMP, RADIUS, and other protocols for remote management
  • Includes one RJ-45 serial console port

• Memory & Storage:
  • 512 MB DDR3 SDRAM
  • 64 MB FLASH

• VLANs: Supports up to 4000 VLANs
• Link Aggregation: Supports 8 link aggregation groups

Key Features

• Security Fabric Integration: Extends Fortinet's security protection to the access layer of the network.
• Zero-Touch Provisioning: Facilitates automated discovery and configuration of Ethernet ports and security policies.
• High Scalability: Accommodates various Ethernet ports and multi-gigabit uplinks for scaling from desktop to data center deployments.
• Unparalleled Visibility: Provides a single console for managing security and network access, including device detection.
