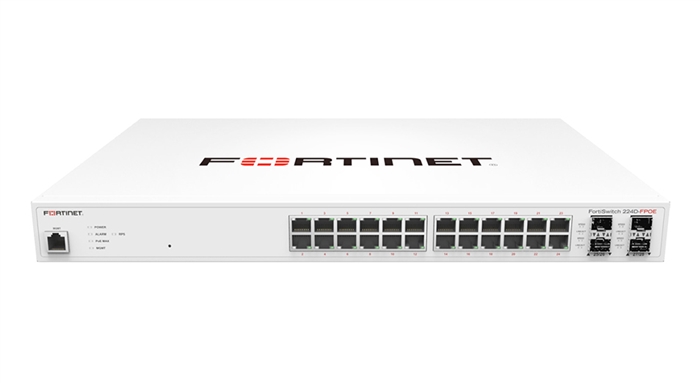

The Fortinet FS-224D-FPOE is a 24-port, 1U rack-mountable, managed Gigabit Ethernet switch with 24 PoE+ ports and 4 Gigabit SFP uplink ports. It features a total PoE budget of 370W, a 56 Gbps switching throughput, and integrates with FortiGate firewalls for secure networking.

Key Specifications:

• Device Type: 24-port managed Ethernet switch
• Form Factor: 1U rack-mountable
• Ports:
  • 24 x 10/100/1000 (PoE+)
  • 4 x Gigabit SFP

• Power Over Ethernet (PoE): PoE+
• PoE Budget: 370 W
• Switching Throughput: 56 Gbps
• Features: FortiLink integration, port mirroring, STP/RSTP/MSTP support, tagged VLANs
• Management: Remote management protocols including HTTP, HTTPS, SSH, and CLI
• Power: AC 120/230 V (50 - 60 Hz)
• Dimensions: 17.3 x 10.1 x 1.7 inches
• Weight: 10.65 lbs

Primary Use:
The FortiSwitch 224D-FPOE is designed for secure access networks, integrating with FortiGate Next-Generation Firewalls (NGFWs) to provide a secure and simplified network solution for desktop, wiring closet, and converged network deployments.
