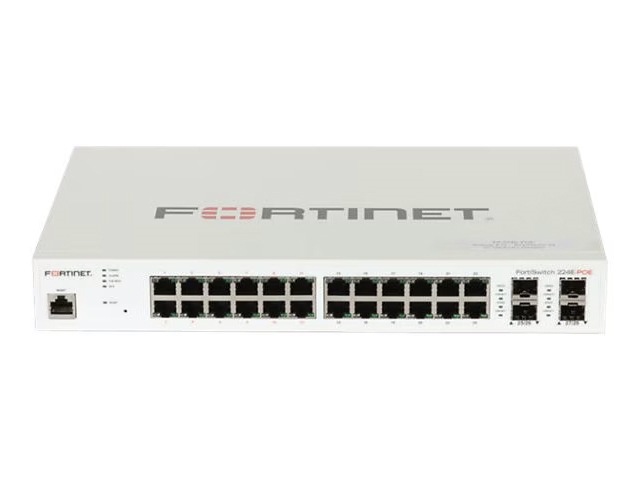

The Fortinet FS-224E-POE is a 24-port managed Gigabit Ethernet switch with 12 PoE+ ports and 4 Gigabit SFP uplink ports, offering a 180W PoE budget and a switching capacity of 48 Gbps. It features 4000 VLANs, 16,000 MAC entries, and supports <0xE2><0x8C><0x8E>FortiLink for centralized management within the Fortinet Security Fabric.

Key Specifications

• Ports:
  • 12 x 10/100/1000 (PoE+) RJ-45 ports
  • 12 x 10/100/1000 RJ-45 ports
  • 4 x Gigabit SFP ports for uplinks

• PoE:
  • PoE+ support
  • 180W PoE budget

• Performance:
  • 48 Gbps switching capacity
  • 83 Mpps packet forwarding rate
  • 1 µs latency

• Capacity:
  • 4000 virtual interfaces (VLANs)
  • 16,000 MAC address entries
  • 1.5 MB buffer capacity

• Management:
  • Managed via FortiLink from a FortiGate
  • Integrated into the Fortinet Security Fabric for centralized control
