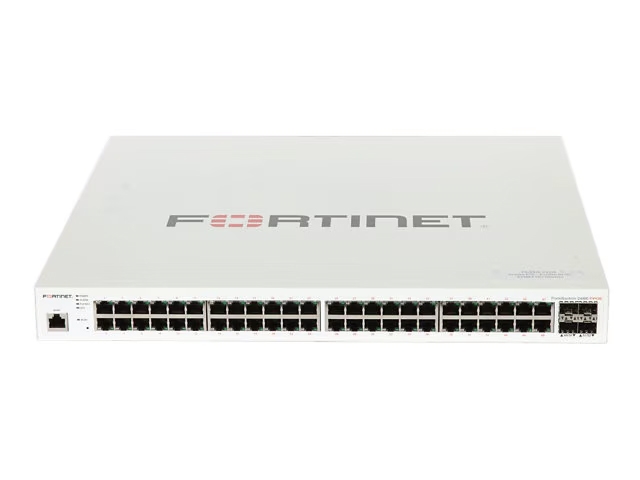

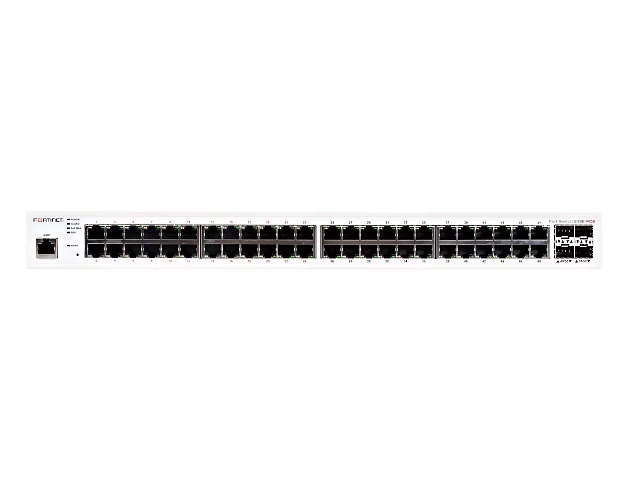

The Fortinet FS-248E-FPOE is a Layer 3, managed, rack-mountable switch featuring 48 x 1 Gigabit Ethernet PoE+ ports and 4 x 1 Gigabit Ethernet SFP uplink ports, with a total PoE budget of 740W. It includes advanced features like port mirroring, built-in monitoring tools, and supports FortiLink for integration with FortiGate firewalls. The switch offers a compact 1U form factor and a powerful switching capacity of 104 Gbps.

Key Specifications

• Model: FS-248E-FPOE
• Port Configuration: 48 x 1 Gigabit Ethernet (PoE+) ports and 4 x 1 Gigabit Ethernet SFP uplink ports
• PoE Budget: 740 W
• Switching Capacity: 104 Gbps
• Forwarding Rate: 155 Mpps (Million packets per second)
• Management: Managed, Layer 3 capable, and FortiLink-enabled
• Form Factor: 1U, rack-mountable

Key Features

• PoE+ Support: Delivers power over Ethernet to devices like cameras and access points.
• FortiLink Integration: Enables the switch to be managed directly by a FortiGate Next-Generation Firewall (NGFW) for enhanced security and simplified administration.
• High-Density Connectivity: Provides a large number of high-speed Ethernet ports for connecting various endpoints.
• Scalability: Designed to be scalable for network growth and can be used with other FortiSwitch models.
• Advanced Features: Includes port mirroring, LLDP, and other security and diagnostic tools.
