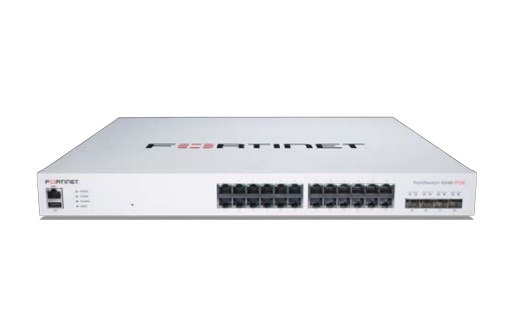

The Fortinet FS-424E-FPOE is a 24-port Layer 3 managed switch with 24 PoE+ 1 Gigabit Ethernet RJ45 ports and four 10 Gigabit SFP+ uplink ports. It features 128 Gbps switching capacity, a forwarding rate of 204 Mpps, and a PoE budget of approximately 421-433.7W. The switch integrates into the Fortinet Security Fabric via FortiLink for centralized management.

Key Specifications

• Ports: 24 x 1 Gigabit Ethernet (PoE+) RJ45 ports
• Uplink Ports: 4 x 10 Gigabit Ethernet SFP+ ports
• Management Ports: 1 x 1 Gigabit RJ45 Management Port, 1 x RJ45 Serial Console Port
• PoE Budget: Approximately 421W to 433.7W
• Switching Capacity: 128 Gbps
• Forwarding Rate: 204 Mpps
• MAC Address Table: 16,000 entries
• Latency: < 1µs
• Layer: Layer 3
• Management: Integrated with the Fortinet Security Fabric via FortiLink for a single-pane-of-glass management.

Physical Characteristics

• Form Factor: 1U rack-mountable
• Airflow: Side-to-Back airflow

Power

• Power Supply: Includes one internal AC power supply.

Certifications

• Compliance: Complies with standards including BSMI, CB, FCC, RCM, RoHS 2, UL, and VCCI.
