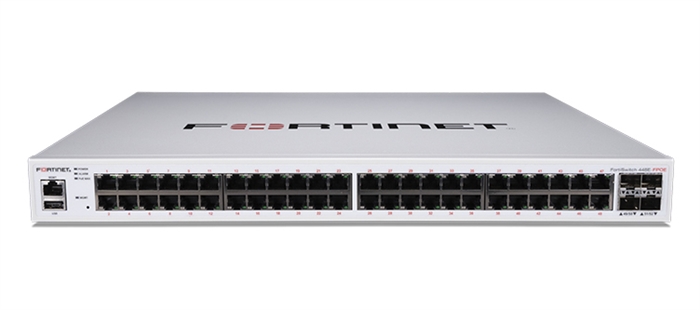

The Fortinet FS-448E-FPOE is a 48-port, Layer 2/3
managed rack-mountable switch with 48 Gigabit PoE+ ports and four 10 Gigabit
SFP+ uplink ports, featuring a switching capacity of 176 Gbps, a 772W PoE
budget, and integration with FortiGate controllers for centralized management.
Key specifications include 1 GB RAM, 256 MB flash memory, 32K MAC address
entries, support for standard network protocols like 802.1x and OSPFv2, and a
1U form factor.
General Specifications
- Port
Quantity: 48 x 10/100/1000 (PoE+) Gigabit Ethernet ports
- Uplinks:
4 x 10 Gigabit SFP+ ports
- Switching
Capacity: 176 Gbps (Duplex)
- Packets
Per Second: 262 Mpps (Duplex)
- MAC
Address Storage: 32K entries
- Network
Latency: <1µs
- Memory:
1 GB RAM, 256 MB Flash Memory
- Form
Factor: Rack-mountable, 1U compact design
Power & PoE
- PoE
Budget: 772 Watts
- PoE
Type: PoE+, supporting IEEE 802.3af and 802.3at standards
Features & Management
- Layer
2/3 Functionality: Supports advanced switching and routing protocols
- Management:
Manageable via CLI, HTTP/S, SNMP, SSH, Telnet, and integrated with
FortiGate controllers via FortiLink
- Protocols
Supported: IEEE 802.1Q (VLANs), RSTP, MSTP, LACP, 802.1x, DiffServ
Code Point (DSCP), Quality of Service (QoS)
- Routing
Protocols: OSPFv2, RIP-2, BGP, VRRP, ECMP
- VLANs:
Supports up to 4000 VLANs
Integration & Deployment
- Deployment
Options: Supports standalone operation or deployment integrated with a
FortiGate controller for centralized security and management
- Ideal
For: Medium to large enterprise environments needing high-performance,
reliable, and secure network connectivity
Compatible Transceivers: 10G SFP+:
- FN-TRAN-SFP+SR (10GBASE-SR): For short-range
multimode fiber connections, with a typical range of 300m over OM3 fiber.
- FN-TRAN-SFP+LR (10GBASE-LR): For long-range
single-mode fiber connections, with a range of up to 10km.
- FN-TRAN-SFP+ER (10GBASE-ER): For extended-range
single-mode fiber connections, with a range of up to 40km.
- FN-TRAN-SFP+ZR (10GBASE-ZR): For single-mode
fiber connections with a maximum reach of 80km.
- FN-TRAN-SFP+GC (10GBASE-T): A 10G SFP+ module for
copper ethernet cables, with a range of up to 30m over Cat6a cabling.
|
|
|
