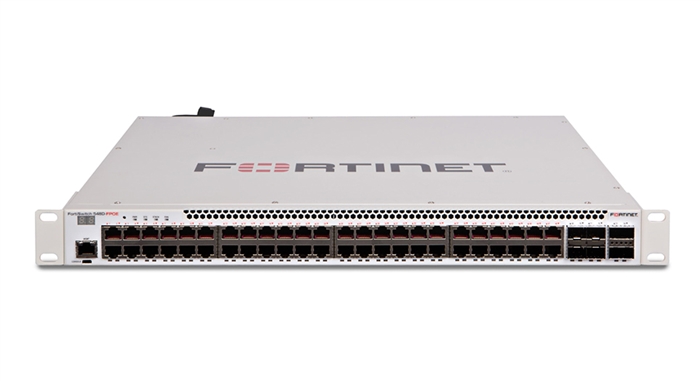

The Fortinet FS-548D-FPOE is a 1RU, 48-port, managed, rack-mountable Layer 3 switch with 48x 1 Gigabit PoE+ Ethernet RJ45 ports, 4x 10 Gigabit SFP+ uplink ports, and 2x 40 Gigabit QSFP+ uplink ports. It features 336 Gbps switching capacity, 512 Mpps forwarding rate, a 750W PoE budget, and offers a serial console port and a dedicated 1 Gigabit management port. The switch supports full integration into the Fortinet Security Fabric via FortiLink for streamlined management and security policy enforcement.

Key Specifications

• Ports:
  • 48 x 1 Gigabit Ethernet PoE+ RJ45 ports
  • 4 x 10 Gigabit SFP+ ports
  • 2 x 40 Gigabit QSFP+ ports

• Management:
  • 1 x RJ45 Serial Console port
  • 1 x 1 Gigabit RJ45 Management port

• Performance:
  • Switching Capacity: 336 Gbps
  • Forwarding Rate: 512 Mpps
  • Latency: < 2µs

• Power Over Ethernet (PoE):
  • PoE+ support
  • PoE Budget: 750 W

• Form Factor: 1U Rack Mountable
• Management Features:
  • Managed through FortiGate using FortiLink
  • Support for standard CLI and Web GUI, Telnet/SSH, SNMP
  • Role and device-based access control and policy enforcement

Typical Use Cases

• Entry-level network access for medium to large businesses
• SD-Branch and distributed enterprise deployments
• Data center aggregation
• Campus core and distribution deployments
