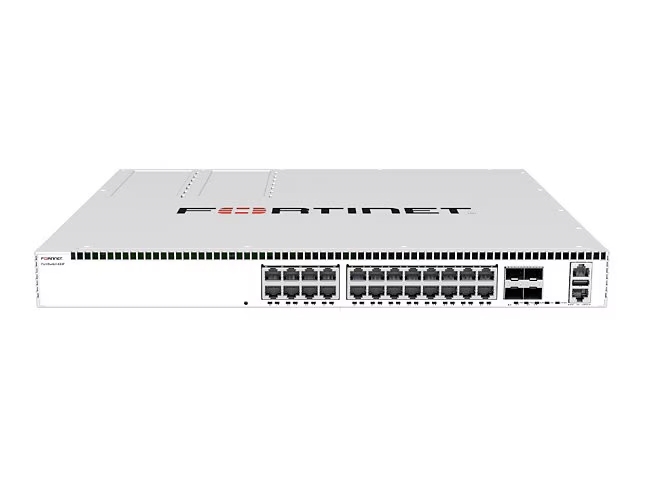

The Fortinet FS-624F is a 1U rack-mountable, managed Layer 3 switch with 24x 1/2.5/5GBase-T RJ-45 ports and 4x 25GBase-X SFP28 uplink ports. Key features include integrated FortiLink functionality for FortiGate controller integration, MACSec security, high-speed 25GbE uplinks, and a large forwarding capacity of 654 Mpps.

Key Specifications

• Ports: 24 x 1Gb/2.5Gb/5GbBase-T RJ-45, 4 x 10Gb/25Gb SFP+/SFP28
• Switch Layer: Layer 3
• Management: Managed, with dedicated 1x RJ-45 management port and 1x RJ-45 console port
• Memory: 4 GB RAM, 32 MB Flash memory
• Performance: 440 Gbps switching capacity, 654 Mpps forwarding performance
• Form Factor: 1U Rack-mountable

Key Features

• FortiLink Integration: Native integration with FortiGate controllers for simplified management and Network Access Control (NAC).
• MACSec Security: Enhanced data integrity and confidentiality through MACsec security over Ethernet links.
• High-Speed Uplinks: Four 25G SFP28 ports provide high-capacity uplinks for superior network performance.
• Flexible Port Speeds: The 1/2.5/5GBase-T ports offer flexibility for different networking needs and higher speeds compared to traditional Gigabit ports.
• Enterprise Ready: Designed for enterprise campus environments requiring high performance, security, and centralized manageability.

Compatible Transceivers:

The Fortinet FS-624F switch is designed for high-speed uplinks with its 4x 25G SFP28 ports and utilizes Fortinet's range of compatible SFP28 transceivers.
