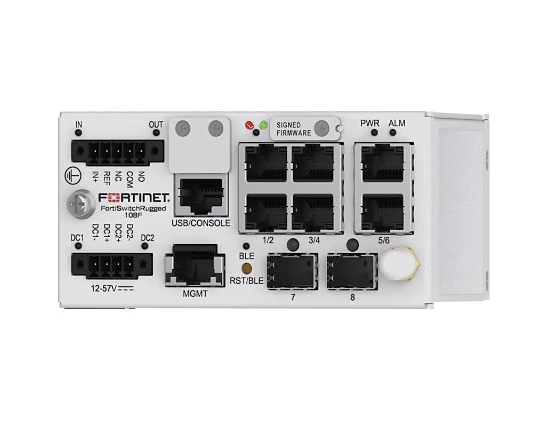

The Fortinet FSR-108F is a Layer 2 ruggedized Ethernet switch designed for demanding environments with a 16 Gbps switching capacity and a 23.8 Mpps packet processing rate. It features 6 x 1 Gbps RJ45 ports and 2 x 1 Gbps SFP ports for connectivity, a 1.5 MB packet buffer, 1 GB DDR4 RAM, and can operate in extreme temperatures ranging from -40°C to 75°C. The switch offers standard features like VLAN support, firewall protection, and integration into the Fortinet Security Fabric via FortiLink.

Key Specifications

• Ports:
  • 6 x 10/100/1000 Mbps RJ45 ports
  • 2 x 100/1000 Mbps SFP slots

• Performance:
  • Switching Capacity: 16 Gbps
  • Packets per second: 23.8 Mpps
  • Packet Buffer: 1.5 MB

• Memory:
  • RAM: 1 GB DDR4 SDRAM
  • Flash: 32 MB SPI + 1 GB NAND

• Management & Features:
  • Layer 2 Managed Switch
  • Supports standard network protocols like OSPF, STP, IGMP, and more
  • VLAN support (4000 VLANs)
  • Integration with the Fortinet Security Fabric via FortiLink

• Environmental:
  • Ruggedized for demanding environments
  • Operating Temperature: -40°C to 75°C [-40°F to 167°F]

• Physical:
  • DIN rail mountable
  • Redundant power input terminals

Compatible Transceivers

For Fortinet Compatible Transceivers click on the link below:

https://www.compufox.com/Fortinet-Transceivers-s/2006.htm
