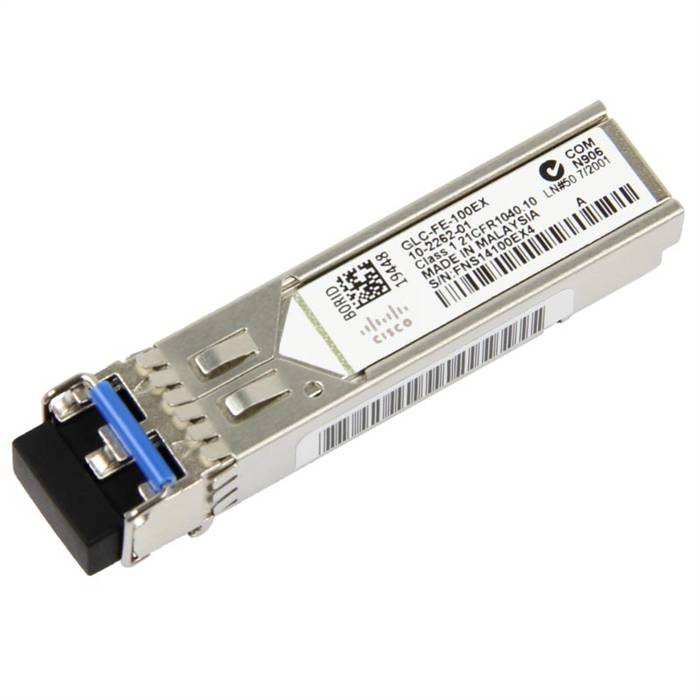

Cisco GLC-FE-100EX 100BASE-EX for Fast Ethernet SFP Ports
Genuine Cisco GLC-FE-100EX

Our Price: $175.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: GLC-FE-100EX
Qty:

Description

The Cisco 100BASE-X Small Form-Factor Pluggable (SFP) device is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.

Main features include the following:
  • Hot-swappable when deployed, the switch or router does not have to reboot
  • Supports the “pay-as-you-populate” model
  • Interchangeable with other 100BASE-X SFPs on the same line card
  • Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
  • Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link

Cisco 100BASE-EX SFP

The Cisco 100BASE-EX SFP operates on ordinary SMF link spans up to 40 km long. GLC-FE-100EX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.

Specifications
  • Product Number: GLC-FE-100EX
  • SFP Type: 100BASE-EX
  • Connectors: Dual LC connector
  • Wavelength: 1310nm
  • Fiber Type: SMF
  • Cable Distance: 40 km (131,240 ft)
  • Transmit (dBm)
    • Maximum: 0
    • Minimum: -5
  • Receive (dBm)
    • Maximum: -8
    • Minimum: -28
  • Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
  • Operating temperature range:  Extended temperature range (EXT): -5 to 85°C (23 to 185°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)
  • Power consumption: up to 1W per port

Platform Support
  • 1900 Series Integrated Services Router - EHWIC-1GE-SFP-CU
  • Catalyst 2960-C Series - WS-C2960C-8TC-S
  • ME 3800X - ME-3800X-24FS-M (client ports)
  • ME 6500 Series - ME-C6524GS-8S
  • ME 3400 - ME-3400G-12CS-D
  • 2500 Connected Grid Switch Series - CGS-2520-16S-8PC
  • Catalyst 3560-C Series - WS-C3560C-12PC-S
  • ME 2400 - ME-2400-24TS-A
  • ME 3400 - ME-3400-24TS-D
  • Catalyst Express 520 - WS-CE520-24PC-K9
  • ME 3400 - ME-3400-24CS-A
  • Catalyst Express 500 - WS-CE500-12TC
  • ME 3400 - ME-3400EG-12CS-M
  • Catalyst 2960-S Series - WS-C2960S-48LPS-L
  • Catalyst Express 520 - WS-CE520-24LC-K9
  • 2500 Connected Grid Switch Series - CGS-2520-24TC
  • Catalyst 2960+ Series - WS-C2960+48PST-L
  • 7600 Series Router - WS-X6148-FE-SFP
  • Catalyst 2960-S Series - WS-C2960S-48FPS-L
  • 3900 Series Integrated Services Router - Cisco 3925E
  • 892F Series Wireless Integrated Services Router - CISCO892FW-K9
  • Catalyst 4500 Series Switch - WS-X4248-FE-SFP
  • IE3000 Series Switch - IE-3000-4TC
  • 3900 Series Integrated Services Router - Cisco 3945E
  • IE2000 Series - IE-2000-16TC-G-N
  • Catalyst 2960 Series - WS-C2960G-24TC-L
  • Catalyst 2960+ Series - WS-C2960+24TC-L
  • 892F Series Wireless Integrated Services Router - CISCO892F-K9
  • Catalyst 2960 Series - WS-C2960-48TC-L
  • Catalyst 2960 Series - WS-C2960-24PC-L
  • Catalyst 2960-S Series - WS-C2960S-48TS-L
  • IE2000 Series - IE-2000-16TC-L
  • IE2000 Series - IE-2000-4TS-L
  • Catalyst 3560 Series - WS-C3560-12PC-S
  • IE2000 Series - IE-2000-16TC-G-X
  • 1921 Series Router EHWC-1GE-SFP-CU
  • Catalyst 2960 Series - WS-C2960G-8TC-L
  • 3900 Series Integrated Services Router - Cisco 3945
  • Catalyst 2960 Series - WS-C2960-8TC-L
  • ME 3400 - ME-3400E-24TS-M
  • Catalyst Express 500 - WS-CE500G-12TC
  • IE3010 Series Switch - IE-3010-16S-8PC
  • IE2000 Series - IE-2000-8TC-B
  • ME 2400 - ME-2400-24TS-D
Regulatory and Standards Compliance

Safety
  • Laser Class 1 21CFR1040 LN#50 7/2001
  • Laser Class I IEC 60825
Standards
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.3ah
  • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
  • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
  • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
  • RoHS 5
