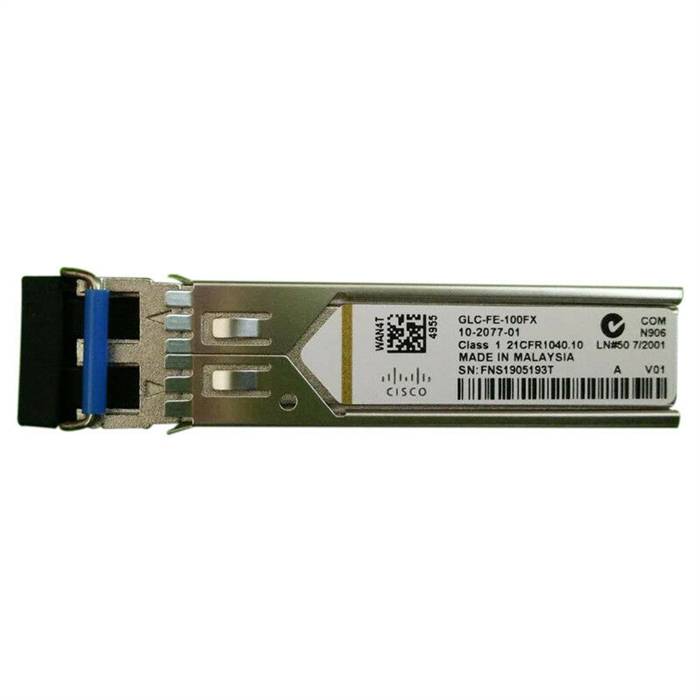

Cisco GLC-FE-100FX 100BASE-FX SFP for Fast Ethernet SFP Ports
Genuine Cisco GLC-FE-100FX

Our Price: $100.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: GLC-FE-100FX
Qty:

Description

The Cisco 100BASE-X Small Form-Factor Pluggable (SFP) device is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.

Main features include the following:
  • Hot-swappable when deployed, the switch or router does not have to reboot
  • Supports the “pay-as-you-populate” model
  • Interchangeable with other 100BASE-X SFPs on the same line card
  • Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
  • Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link

Cisco 100BASE-FX SFP

The Cisco 100BASE-FX SFP operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers (km) long.
GLC-FE-100FX modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco switches and routers.

Specifications
  • Product Number: GLC-FE-100FX
  • SFP Type: 100BASE-FX
  • Connectors: Dual LC connector
  • Wavelength: 1300nm
  • Fiber Type: MMF
  • Cable Distance: 2 km (6,562 ft)
  • Transmit (dBm)
    • Maximum: -14
    • Minimum: -20
  • Receive (dBm)
    • Maximum: -14
    • Minimum: -31
  • Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
  • Operating temperature range:   Extended temperature range (EXT): -5 to 85°C (23 to 185°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)
  • Power consumption: up to 1W per port

Platform Support
  • 1900 Series Integrated Services Router - EHWIC-1GE-SFP-CU
  • ME 3400 - ME-3400G-12CS-A
  • Catalyst Express 500 - WS-CE500-24PC
  • Catalyst 2960-S Series - WS-C2960S-48LPS-L
  • Catalyst 2960-S Series - WS-C2960S-48TS-L
  • ME 3400 - ME-3400G-2CS-A
  • Catalyst 3560-C Series - WS-C3560CG-8PC-S
  • Catalyst 2960 Series - WS-C2960-48TC-L
  • ME 3400 - ME-3400-24TS-A
  • IE3010 Series Switch - IE-3010-16S-8PC
  • ME 3400 - ME-3400-24TS-D
  • 1921 Series Router EHWC-1GE-SFP-CU
  • Catalyst 2960 Series - WS-C2960-8TC-L
  • Catalyst Express 500 - WS-CE500G-12TC
  • Catalyst 2960-X Series - WS-C2960X-18TS-LL
  • ME 3400 - ME-3400EG-2CS-A
  • Catalyst 3560 Series - WS-C3560-8PC-S
  • ME 3400 - ME-3400E-24TS-M
  • IE2000 Series - IE-2000-16TC-L
  • Catalyst 2960 Series - WS-C2960-48TC-S
  • Catalyst 3560-C Series - WS-C3560CG-8TC-S
  • Catalyst 6500 Series - WS-X6148-FE-SFP
  • Catalyst Express 520 - WS-CE520-24PC-K9
  • Catalyst 2960-S Series - WS-C2960S-24TS-L
  • Catalyst 2960 Series - WS-C2960-24TC-L
  • Catalyst 4500 Series - WS-X4248-FE-SFP
  • Catalyst 2960-C Series - WS-C2960C-8PC-L
  • IE2000 Series - IE-2000-16TC-G-E
  • Catalyst 3560-C Series - WS-C3560C-8PC-S
  • ME 3400 - ME-3400EG-12CS-M
  • Catalyst 3750 Series
  • 7600 Series Router - WS-X6148-FE-SFP
  • ME 3400 - ME-3400G-12CS-D
  • ME 3800X - ME-3800X-24FS-M (client ports)
  • Catalyst Express 520 - WS-CE520G-24TC-K9
  • IE2000 Series - IE-2000-8TC-B
  • IE3000 Series Switch - IE-3000-4TC
  • ME 2400 - ME-2400-24TS-D
  • Catalyst 3560-C Series - WS-C3560C-12PC-S
  • Catalyst 2960 Series - WS-C2960G-24TC-L
  • 2900 Series Integrated Services Router - HWIC-1GE-SFP
  • Catalyst 2960-S Series - WS-C2960S-24TS-S
  • Catalyst 2960+ Series - WS-C2960+24TC-S
  • Catalyst 4948-E Series - WS-X4993

Regulatory and Standards Compliance

Safety
  • Laser Class 1 21CFR1040 LN#50 7/2001
  • Laser Class I IEC 60825
Standards
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.3ah
  • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
  • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
  • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
  • RoHS 5
