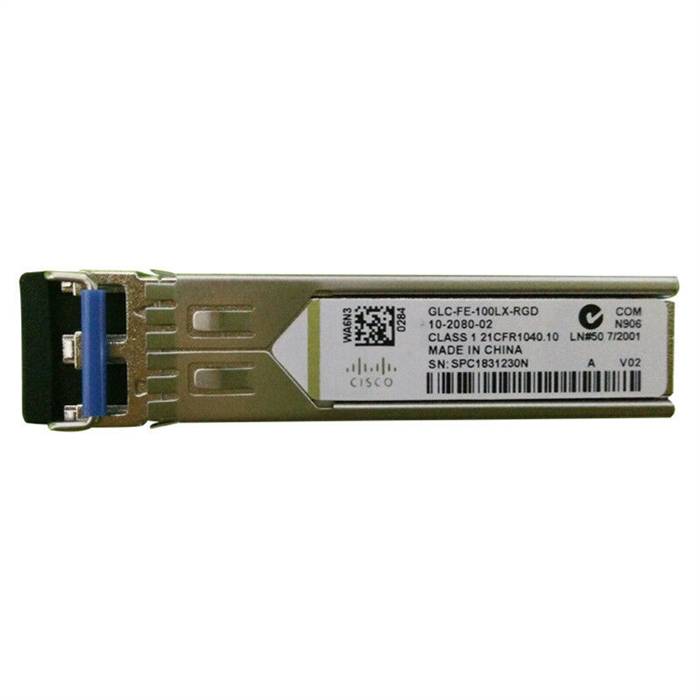

Cisco GLC-FE-100LX-RGD 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
Genuine Cisco GLC-FE-100LX-RGD

Our Price: $280.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: GLC-FE-100LX-RGD
Qty:

Description

The Cisco 100BASE-X Small Form-Factor Pluggable (SFP) device is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a Cisco switch or router, linking the port with the fiber cabling network.

Main features include the following:
  • Hot-swappable when deployed, the switch or router does not have to reboot
  • Supports the “pay-as-you-populate” model
  • Interchangeable with other 100BASE-X SFPs on the same line card
  • Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP
  • Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link

Cisco 100BASE-LX10 SFP

The Cisco 100BASE-LX10 SFP operates on ordinary single-mode fiber-optic (SMF) link spans up to 10 km long. GLC-FE-100LX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers. These modules are interoperable with industrywide interfaces compliant to the IEEE 100BASE-LX10 standard.

Specifications
  • Product Number: GLC-FE-100LX-RGD
  • SFP Type: 100BASE-LX10
  • Connectors: Dual LC connector
  • Wavelength: 1310nm
  • Fiber Type: SMF
  • Cable Distance: 10 km (32,810 ft)
  • Transmit (dBm)
    • Maximum: -8
    • Minimum: -15
  • Receive (dBm)
    • Maximum: -8
    • Minimum: -28
  • Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
  • Operating temperature range:  Industrial temperature range (IND): -40 to 85°C (-40 to 185°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)
  • Power consumption: up to 1W per port

Platform Support
  • ME3400
  • Catalyst 2960-X Series
  • IE2000 Series - IE-2000-16TC-L
  • IE2000 Series - IE-2000-16TC-G-X
  • IE2000 Series - IE-2000-16TC-G-N
  • IE2000 Series - IE-2000-16TC-G-L
  • IE3000 Series Switch - IE-3000-4TC
  • IE2000 Series - IE-2000-16TC-G-E
  • IE2000 Series - IE-2000-8TC-L
  • IE3010 Series Switch - IE-3010-16S-8PC
  • IE2000 Series - IE-2000-8TC-B
  • IE3000 Series Switch - IE-3000-8TC
  • IE2000 Series - IE-2000-16TC-B
  • Catalyst 4948-E Series - WS-X4993
  • IE2000 Series - IE-2000-4TS-L
  • 2500 Connected Grid Switch Series - CGS-2520-24TC
  • 2500 Connected Grid Switch Series - CGS-2520-16S-8PC
  • 2000 Connected Grid Router Series - CGR 2010
  • Catalyst 3750 Series
  • IE2000 Series - IE-2000-4TS-B
Regulatory and Standards Compliance

Safety
  • Laser Class 1 21CFR1040 LN#50 7/2001
  • Laser Class I IEC 60825
Standards
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.3ah
  • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
  • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
  • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
  • RoHS 5
