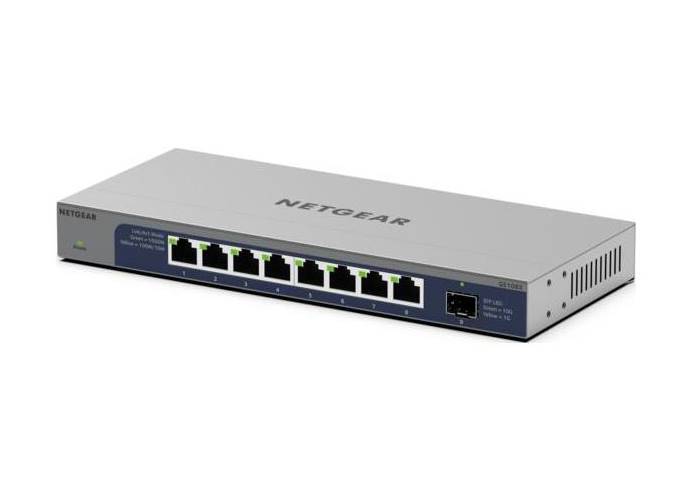

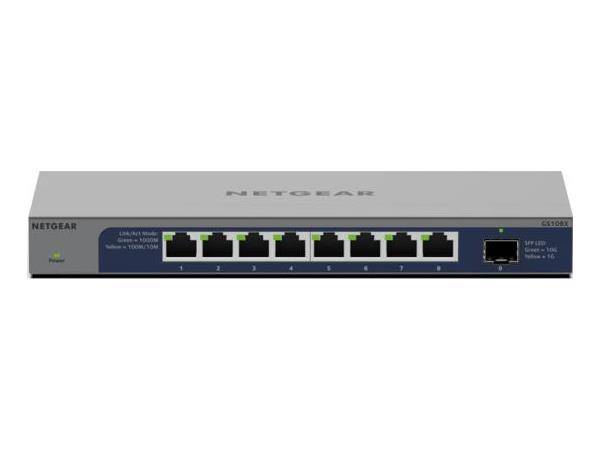

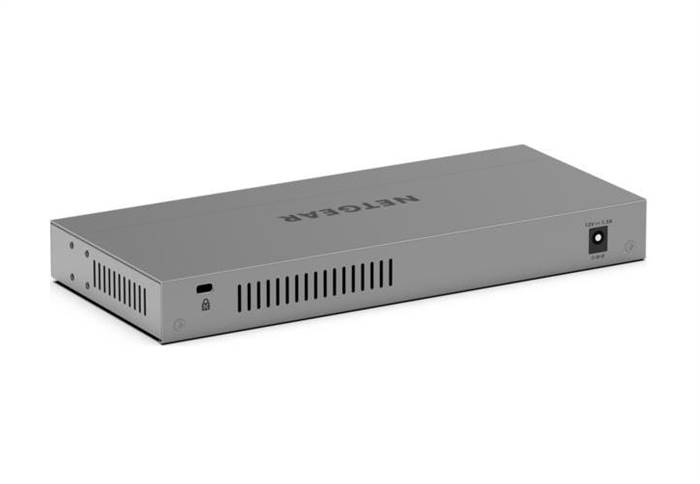

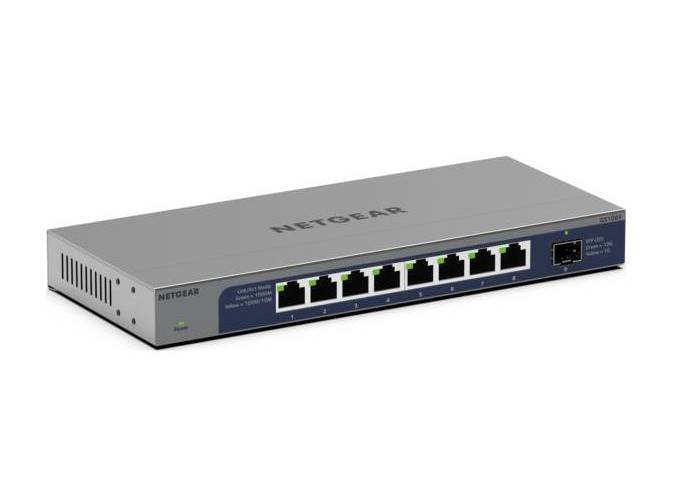

The Netgear GS108X-100NAS is an unmanaged desktop switch designed for small businesses and home offices, featuring eight Gigabit Ethernet ports and a single 10 Gigabit SFP+ fiber uplink.

Key specifications

• Port configuration:
• 8 x 10/100/1000Base-T Gigabit Ethernet (RJ45) ports.
• 1 x 10G SFP+ port for a high-speed fiber uplink.
• Performance:
• Switching capacity: 36 Gbps (non-blocking).
• Forwarding rate: 41.6 Mpps (Million packets per second).
• Buffer size: 768 Kbit.
• Features:
• Plug-and-play: Requires no software or configuration for easy setup.
• Fanless design: Operates silently, making it ideal for noise-sensitive environments like offices and homes.
• Metal case: Offers a durable and rugged build.
• Energy efficient: Compliant with IEEE 802.3az Energy Efficient Ethernet to reduce power consumption.
• Jumbo frame support: Supports frames up to 9,728 bytes.
• Quality of Service (QoS): Supports 802.1p traffic prioritization.
• Physical characteristics:
• Dimensions (W x D x H): 235 x 100.8 x 27 mm (9.25 x 3.97 x 1.06 in).
• Weight: 0.575 kg (1.267 lbs).
• Mounting: Can be placed on a desktop or wall-mounted (kit included).
• Power:
• Power supply: External power adapter (12V, 1.5A).
• Power consumption: Maximum 5.7W during full load.

Compatible Transceivers

The GS108X-100NAS switch has a single 10G SFP+ uplink port that is compatible with 10G fiber transceivers and Direct Attach Cables (DAC).
